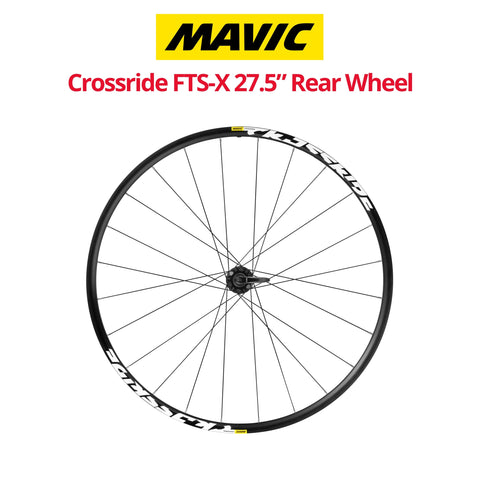

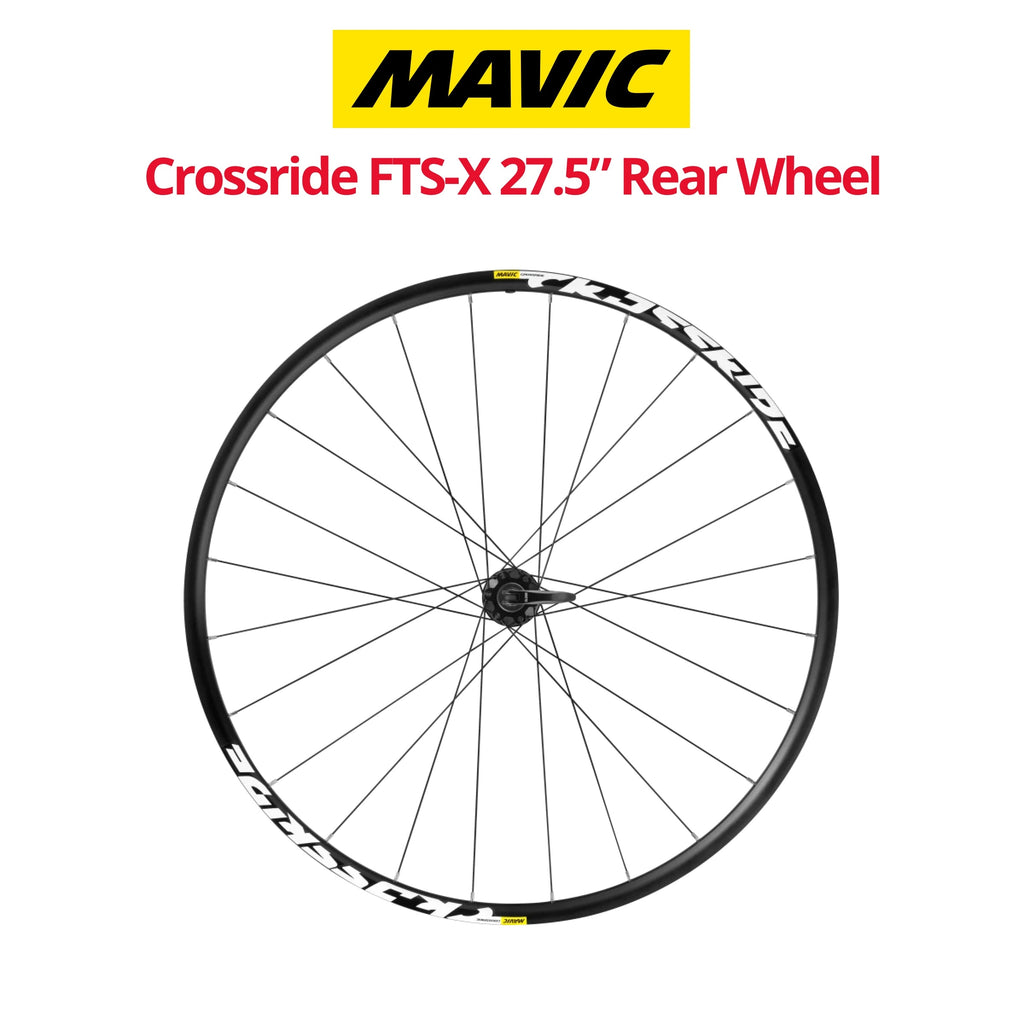

Engineered to deliver best-in-class value without compromising trail performance, the Mavic Crossride FTS-X is a masterclass in system-built reliability. It pairs Mavic's legendary FTS-X rear freehub with a lightweight, sleeved S6000 aluminum rim, optimizing your tire profile for elevated comfort and absolute control on the dirt. Because it is designed as a holistic, interconnected system, every individual component is fine-tuned to work in perfect harmony.
The 21mm internal rim is laced with 24 robust, straight-pull spokes to yield an incredibly stiff, durable wheel that thrives under aggressive trail and cross-country use. Seamlessly adapting to your specific build, the front hub accommodates both 15x100mm thru-axles and 9mm quick releases, while the rear is anchored by a classic 9x135mm QR setup. Offered in 26", 27.5", and 29", it is the definitive upgrade for riders seeking premium off-road performance at an accessible price point.
________
Features:
- High-quality system engineered performance at an entry level price.
- All components engineered together as part of a system.
- 21mm wide rim (internal) designed for versatile performance in all conditions.
- Straight pull spokes for strength and durability.
- Ride with the confidence of proven Mavic technologies.
- Sleeved rim is lightweight and strong.
- FTS-X freehub and its legendary durability.
- Compatibility with common axle standards.
-
Force Transfer System X.
- A further improved FTS free wheel system to meet the demand of intensive MTB riding as closely as possible to make the freewheel mechanism even more hard wearing.
-
QRM auto bearing preload technology.
- Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
________
Specifications:
- Weight
- Rear Wheel: 1090 g
- Rims
- Material: S6000 Aluminum
- Height: 21 mm
- Joint: sleeved
- Internal width: 21 mm
- Drilling: traditional (front/rear 24 holes)
- Braking: disc
- ETRTO size: 684x21C hooked
- Tire: tubetype
- Spokes
- Material: steel
- Shape: straight, round (front and rear)
- Nipples: steel, ABS, incolor
- Lacing: crossed 2 (front and rear)
- Hubs
- Body material: aluminium
- Disc standard : 6 Bolt
- Axle material: steel
- Axle size: rear 9x135 - Quick release only
- Freewheel technology: FTS-X
- Freewheel: Shimano HG
- Bearing technology: QRM automatic setting - sealed cartridge
- Delivered with
- User guide
- Quick release level 1
- Cassette washer HG mounted on the rear wheel
- Rim strip not mounted on wheel
- Valve reducer mounted on wheel
- Intended use
- Minimum tyre size: width 25mm - pressure max. 6.1Bar/88PSI
- Maximum tyre size: width 64mm - pressure max. 3.5Bar/51PSI
- ASTM category 3 : cross country
- Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)
