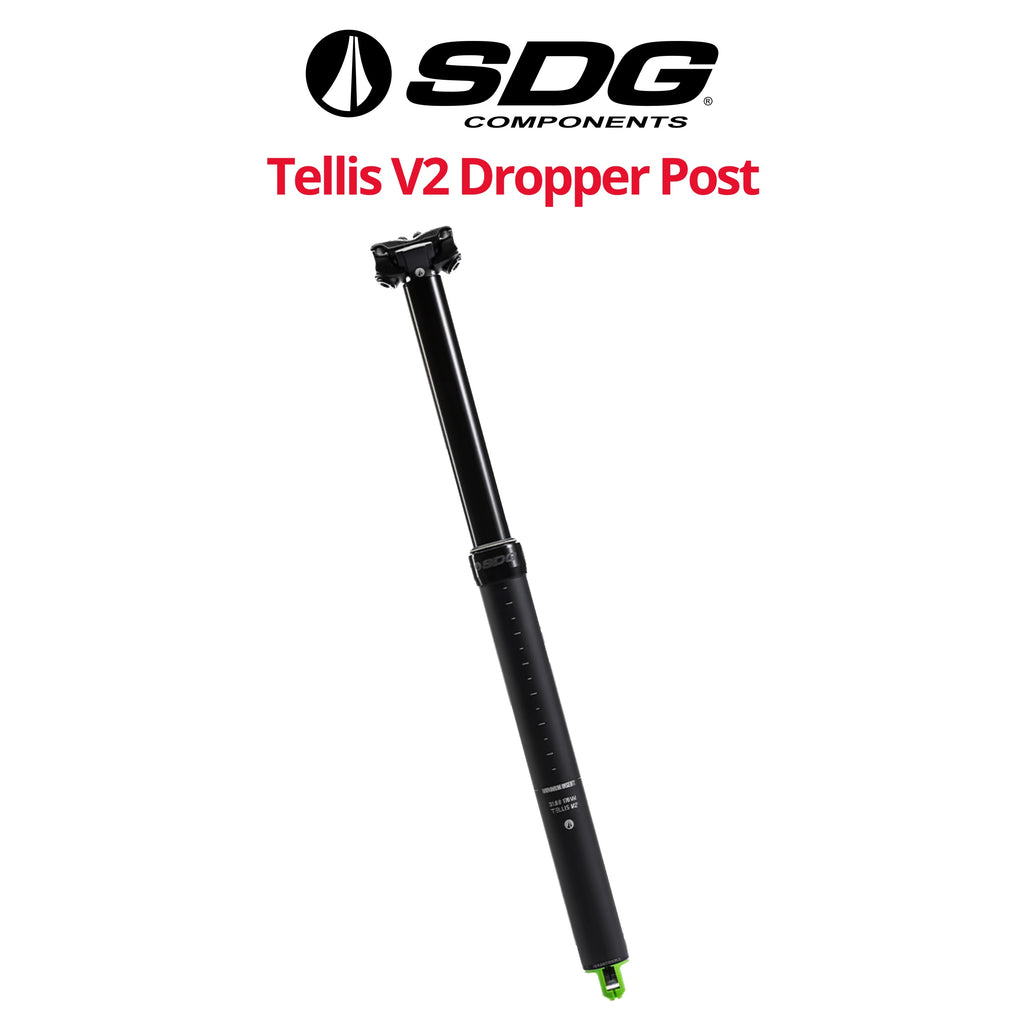

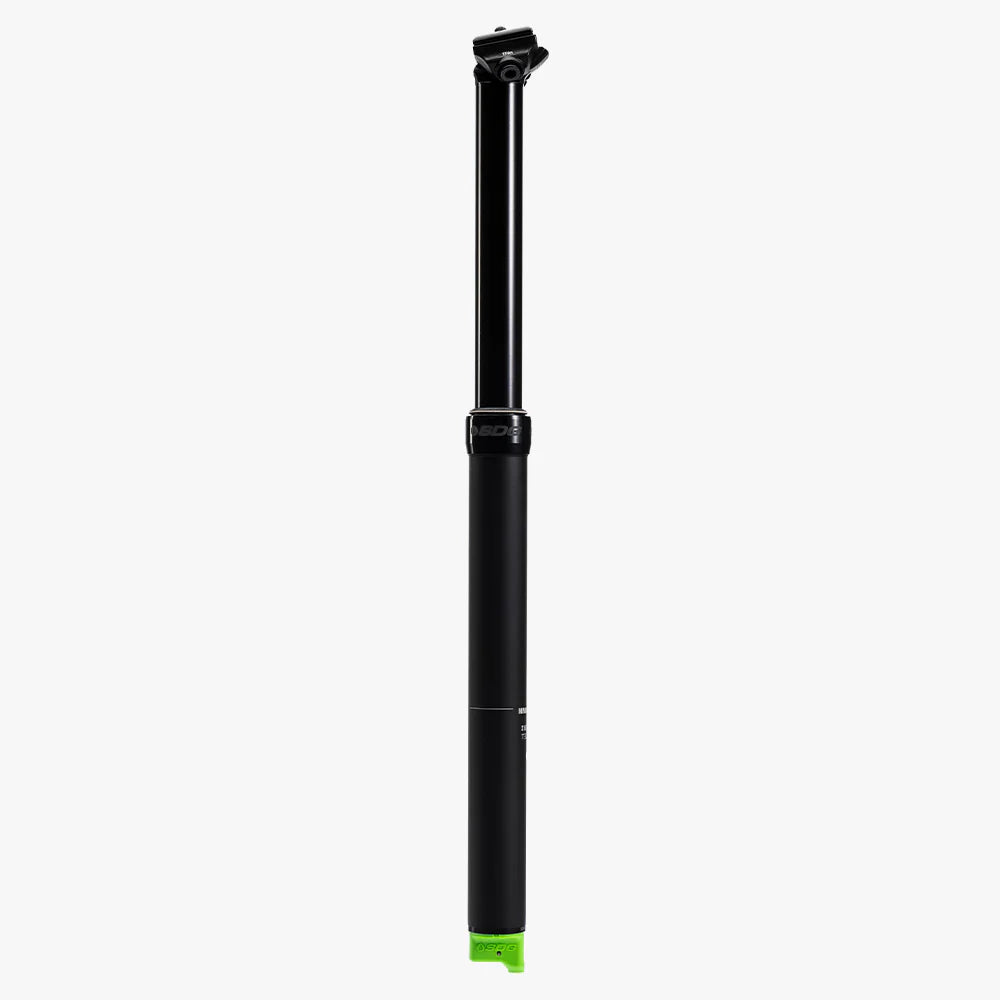

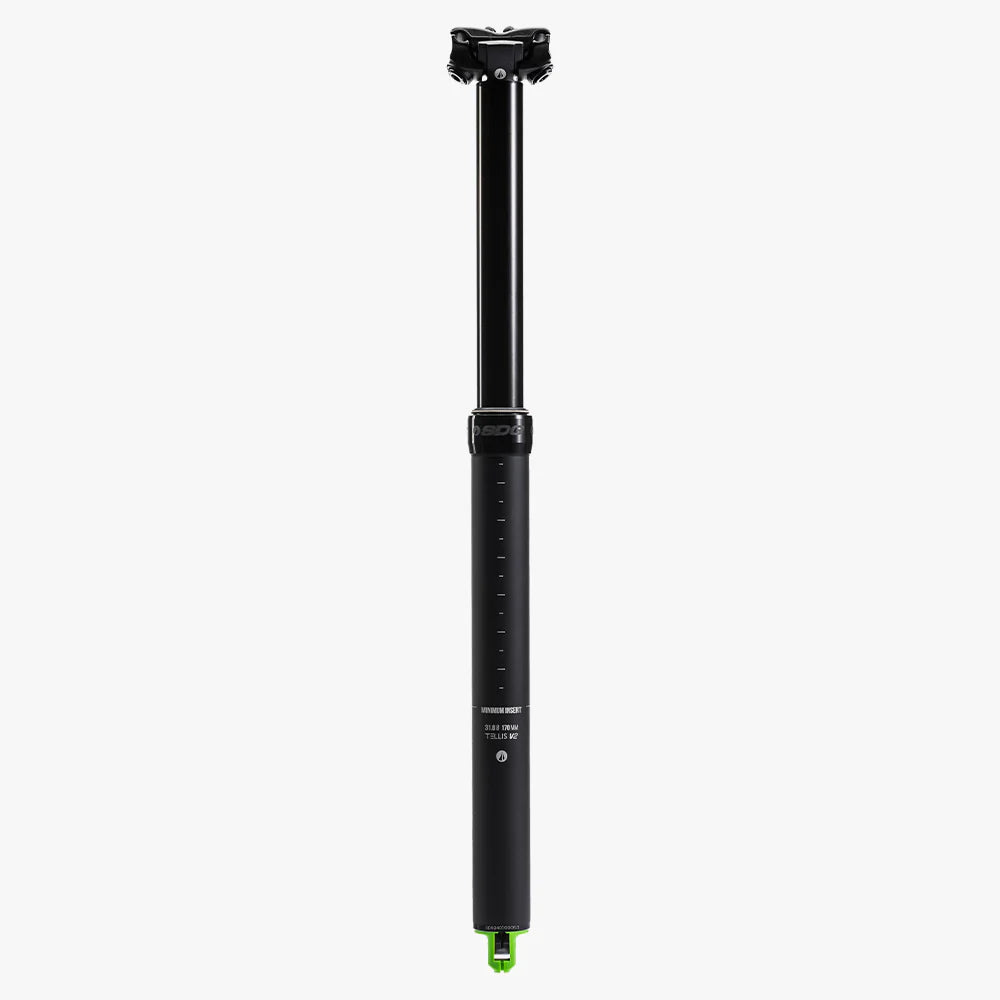

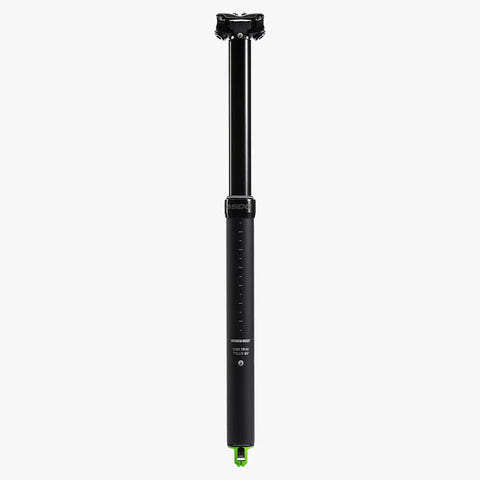

The original SDG Tellis earned its reputation as a workhorse. The all new SGD Tellis V2 is that workhorse, refined. After six years of rider feedback, listening, learning, and testing, SDG elevated the design so you can feel the difference on every ride.
Durability is the cornerstone of the Tellis V2 design. With IGUS bushings, a sealed Wintek cartridge, and a Trelleborg main seal, the Tellis V2 all but eliminates the maintenance headaches common to other posts. Fewer moving parts mean fewer failure points—plain and simple.

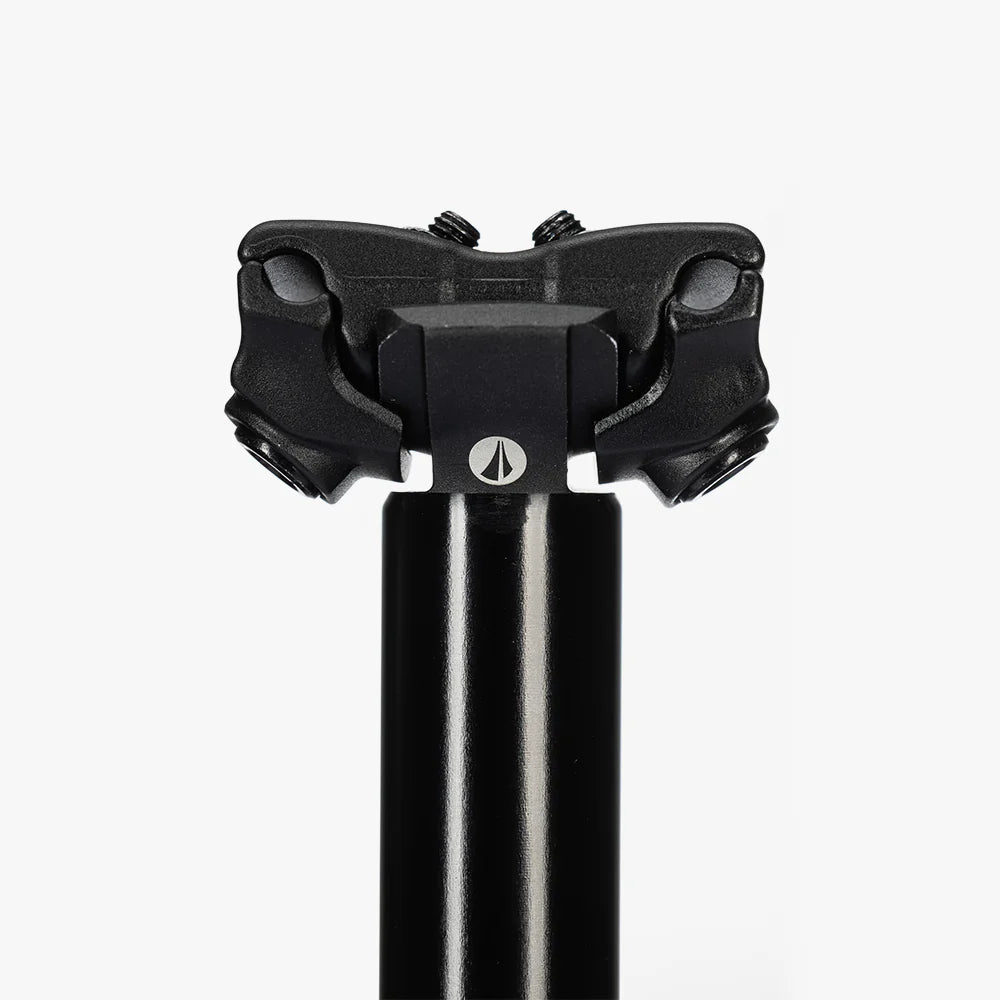

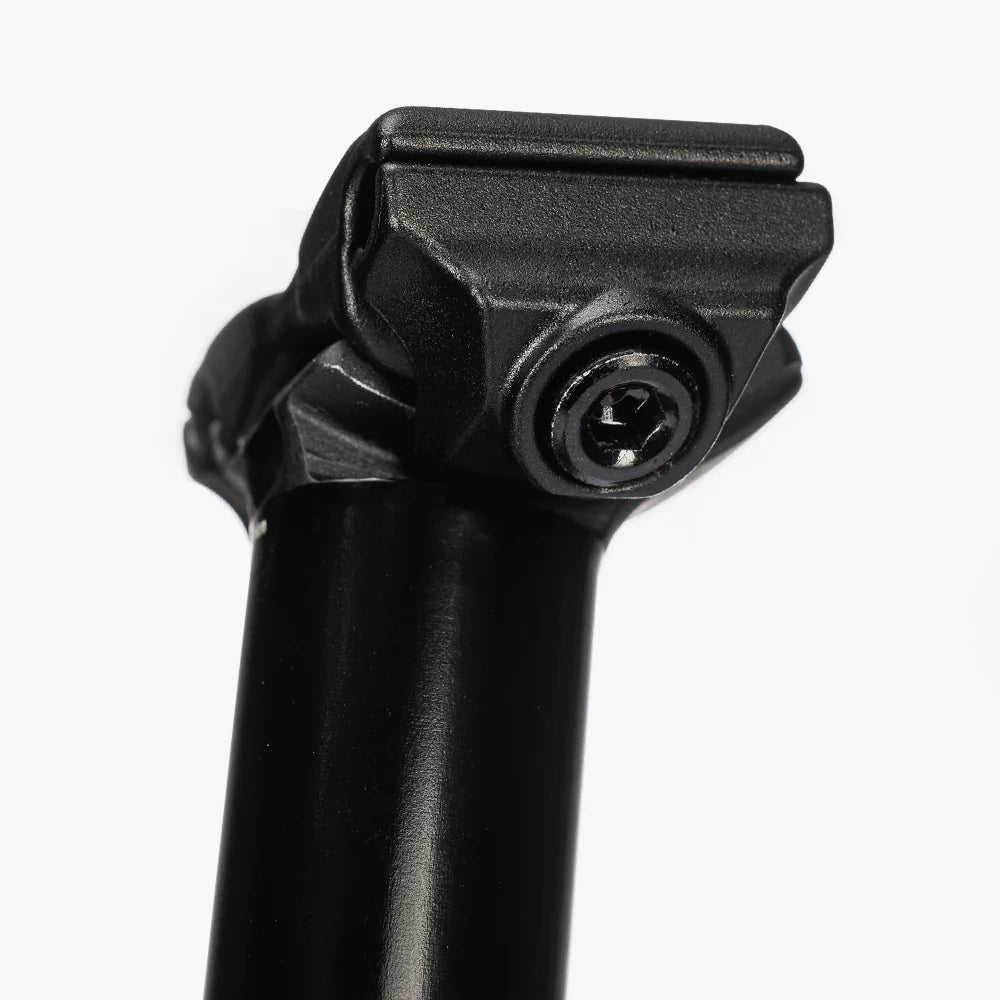

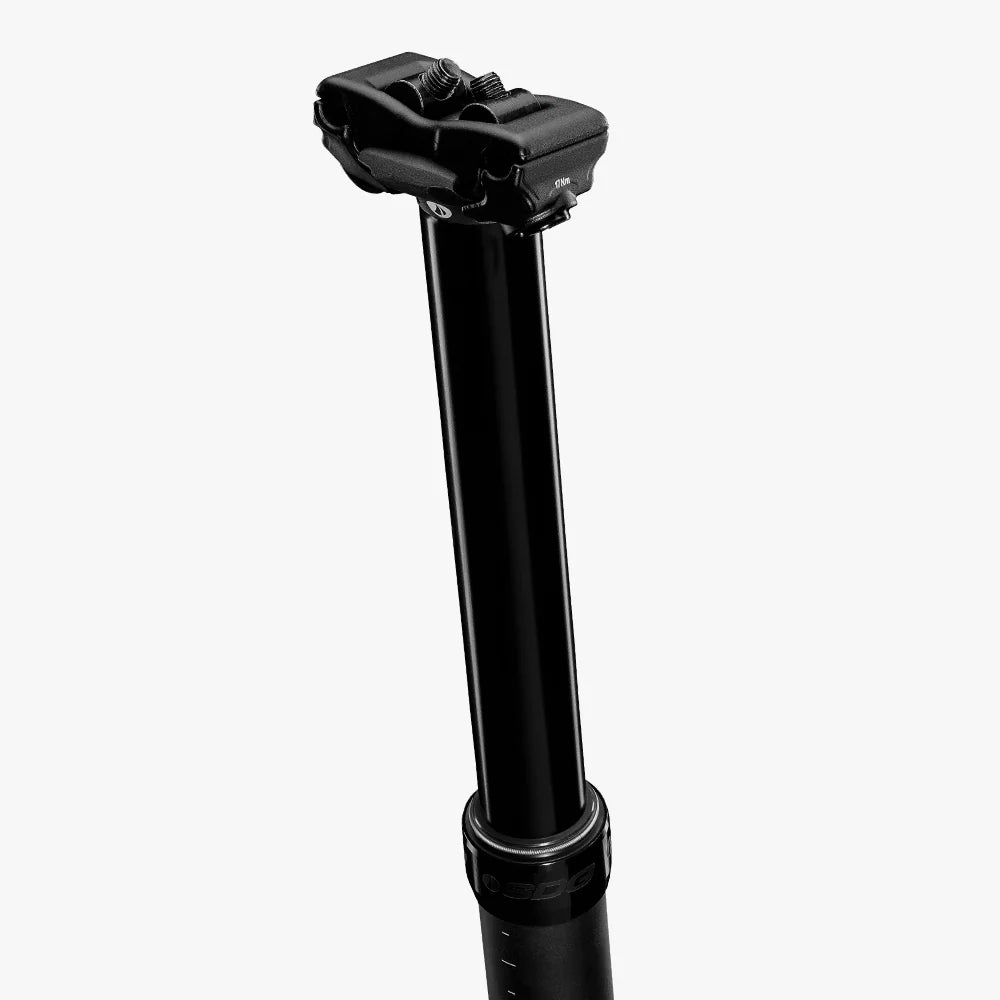

The Tellis V2 debuts a patent-pending, low-stack head that sits 10mm lower than the original, plus convenient side-access bolts. A 3D-forged head within the I-Beam cradle pairs with a stouter 26mm stanchion to boost stiffness, extend overall durability, and reduce overlap.

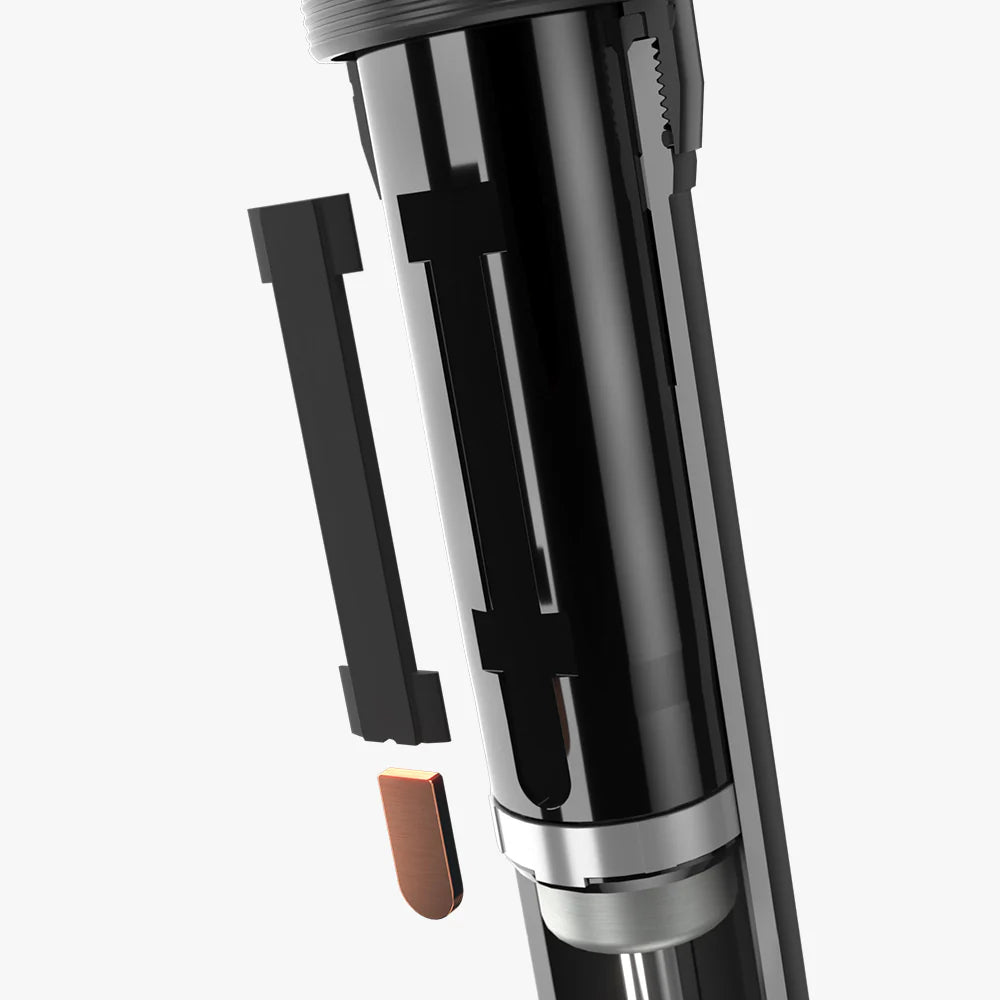

An upgraded polycarbonate keyway now adds lower copper shims to further harden wear zones and keep head play in check, while preserving that trademark smooth stroke.

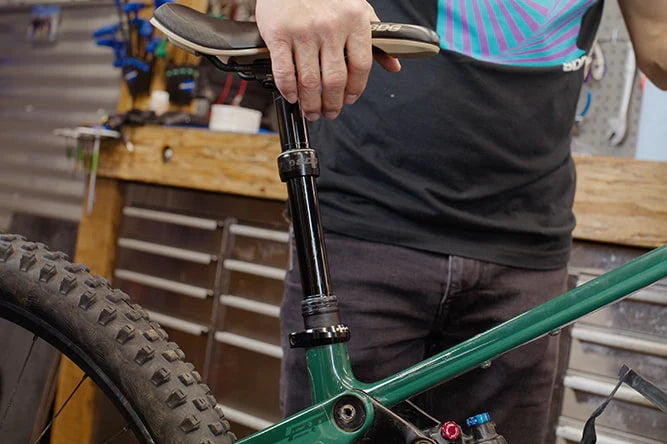

To dial in fit, simple travel-adjust shims (5, 10, or 20mm) come in the box. Use them to trim travel for an optimal setup right out of the gate.
________
Features:
-

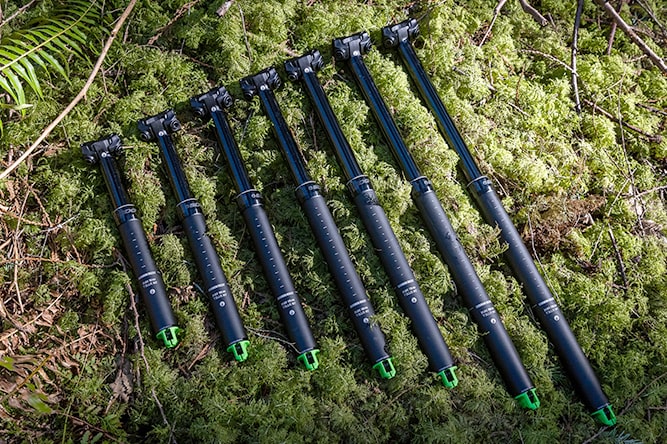

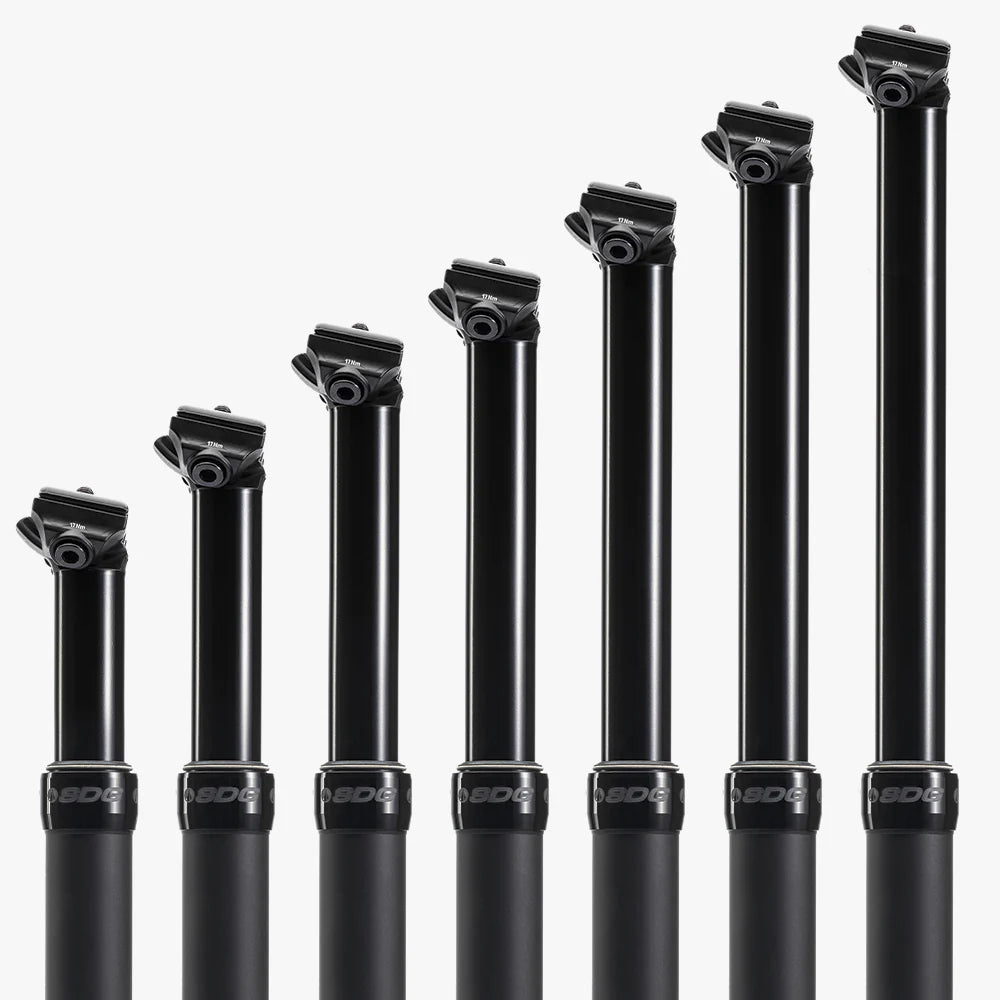

Widest range of travel options in the industry - 30.9mm / 31.6mm / 34.9 diameter – 75mm to 230mm
-
Low Stack Height - Patent-pending 10mm reduced stack height head design
-

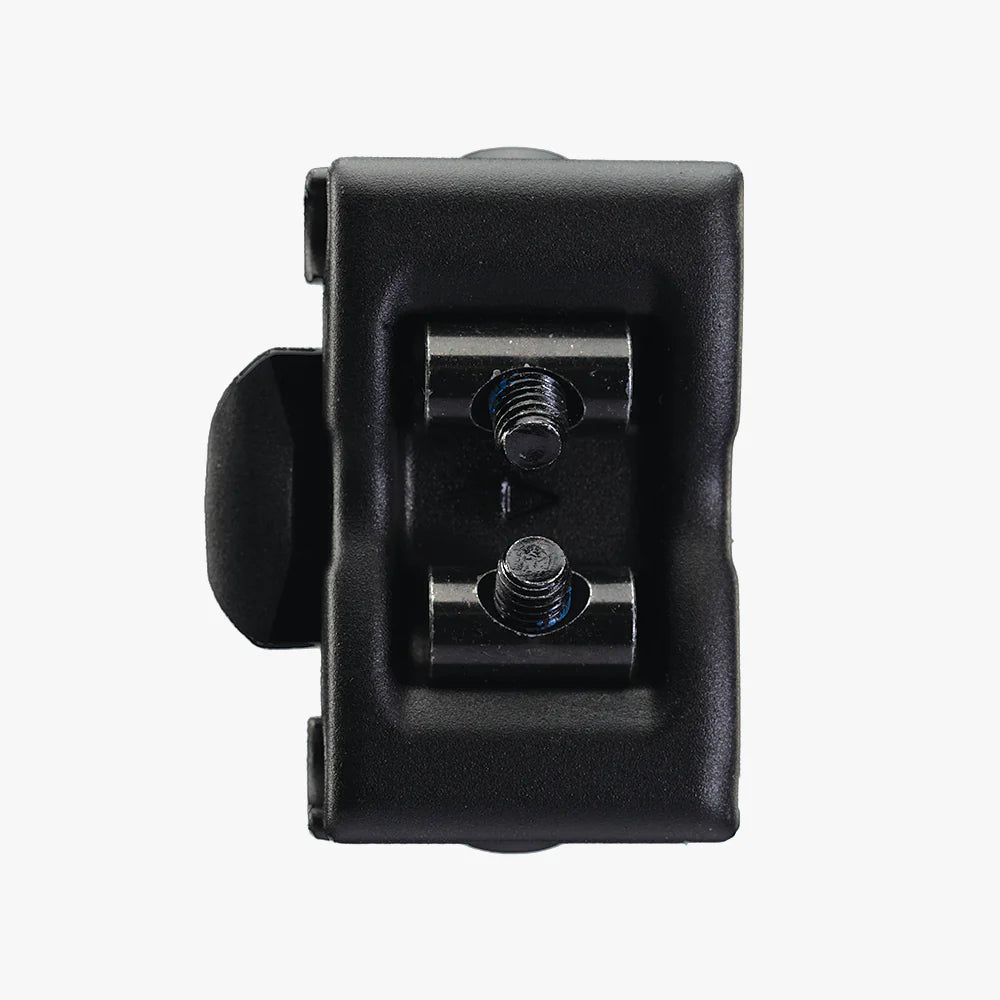

Side Access Rail Clamp - Easy side access bolts for quick adjustments
-
Enhanced Keyways - Polycarbonate + copper system for smoothness, strength and reduced head play
-
Travel Reduction Options - Simple travel reduction shims in 5mm, 10mm and 20mm lengths are included with every post
-

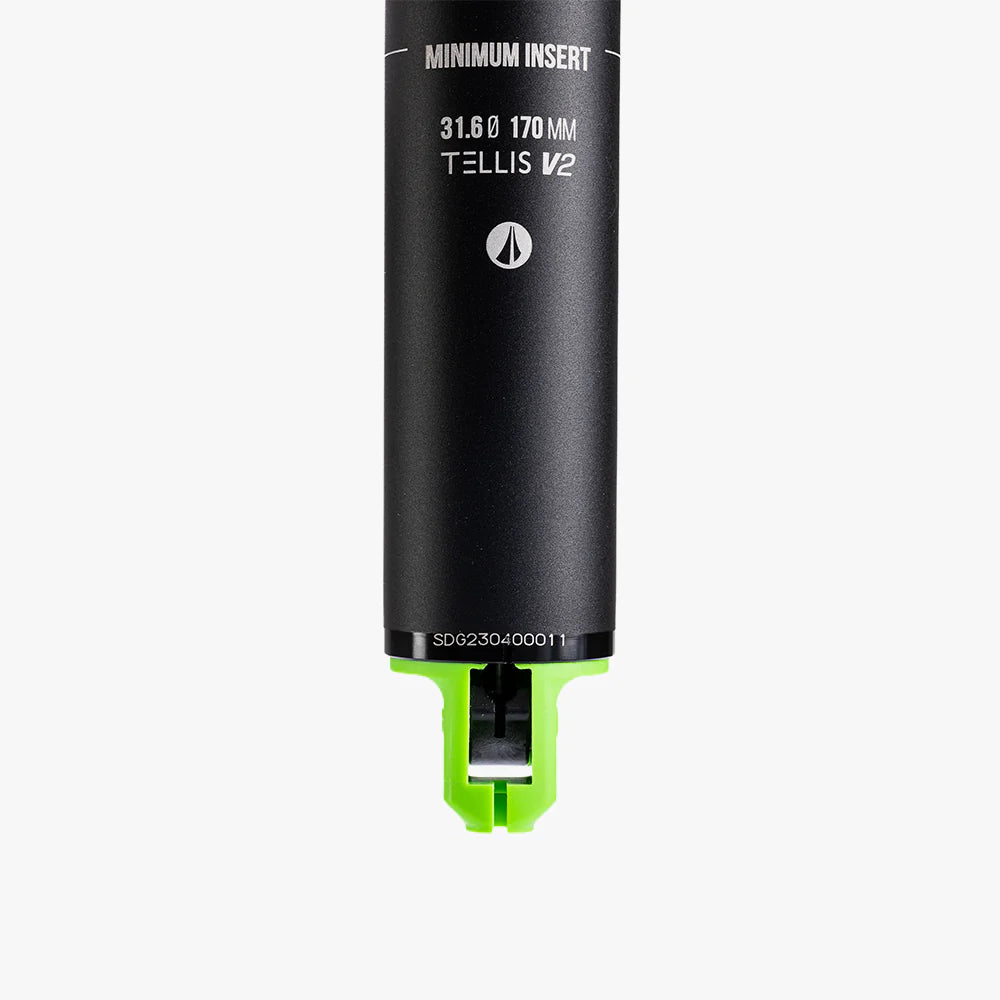

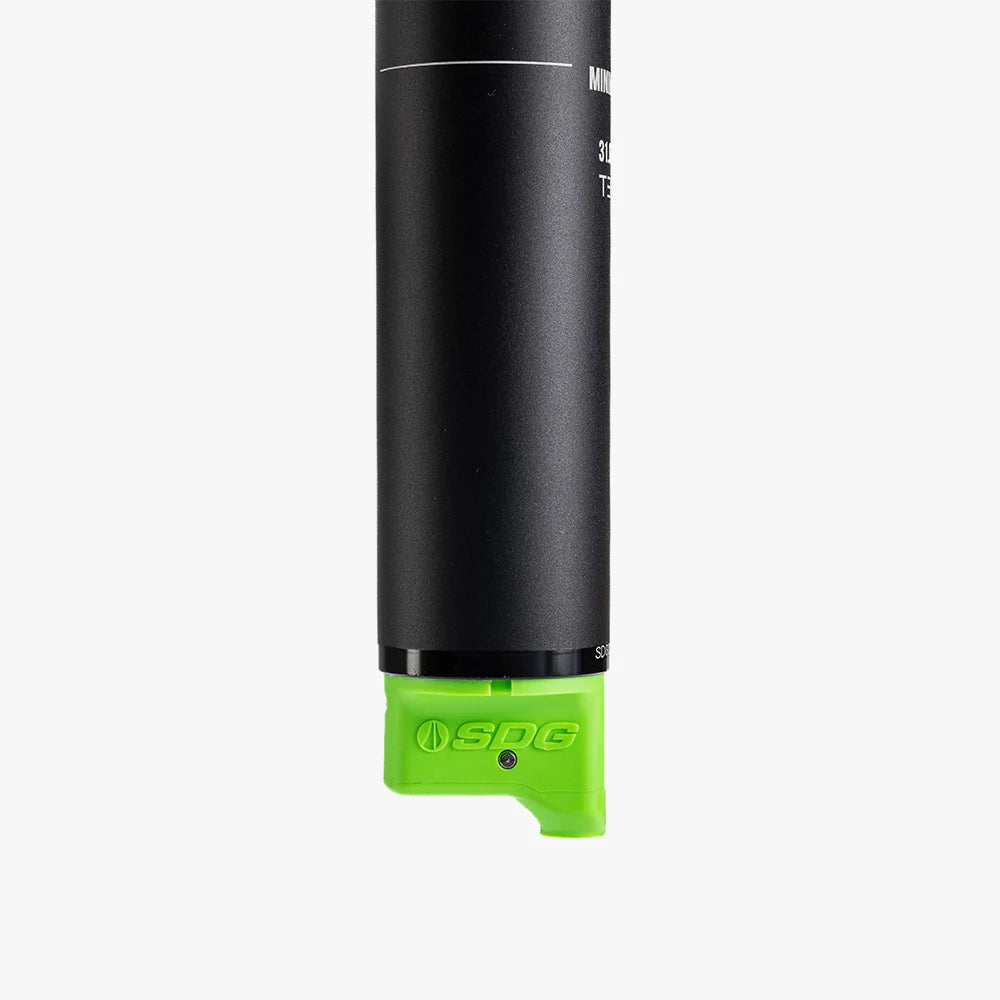

Low Profile Actuator - 5mm reduced height actuator for improved frame fitment
-
Proven Internals - Wintek Cartridge - the industry’s most reliable. Igus bushings and Trelleborg seal for optimal function
-
Strong 3D Forged Top Stanchion - 26mm diameter stanchion for improved stiffness and durability
-
Cold Weather Approved - Tested Down To -5F
- Limited Lifetime Warranty - Gain access to a limited lifetime warranty, ensuring your peace of mind
________

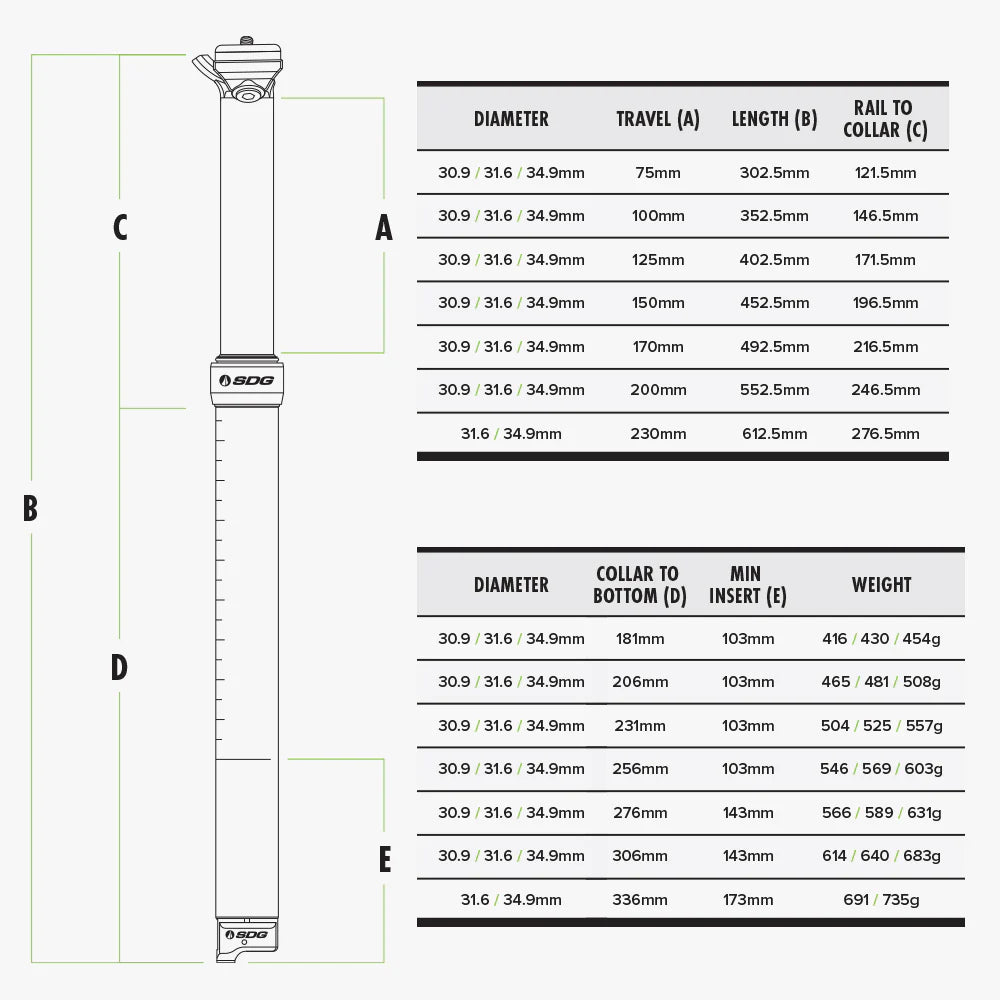

Specifications:
- Travel Options: 100mm, 125mm, 150mm, 170mm, 200mm & 230mm (31.6mm & 34.9mm ONLY)
- Can be reduced up to 20mm with shims provided, 5mm, 10mm and 20mm increments
- Diameter Options: 30.6mm, 31.6mm and 34.9mm
- Stanchion Diamater: 26mm
