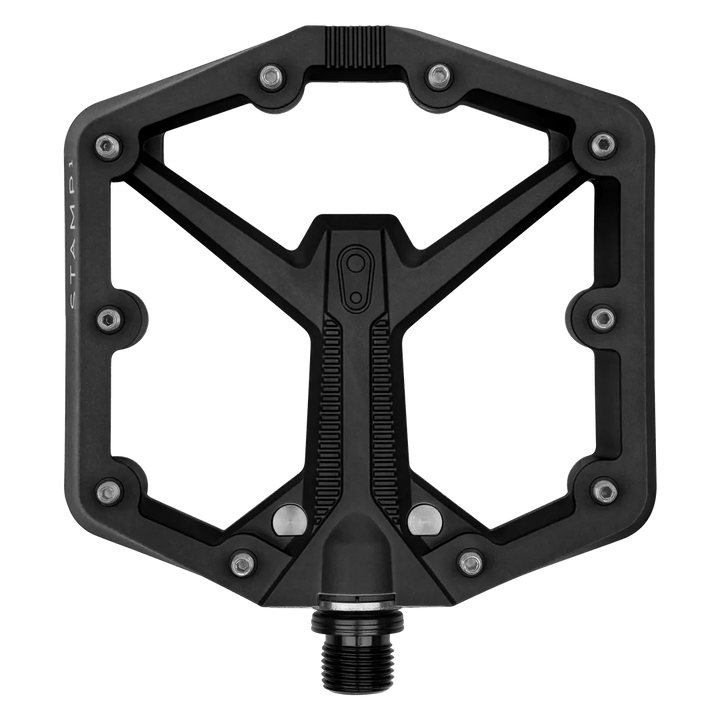

The new Crakbrothers Stamp 1 Gen 2 pedals build upon the Stamp legacy with a true concave body design for enhanced on-trail confidence, trusted Igus internal components for durability, and a new one-piece pin design for maximum grip and easy pin replacement.
Crafted with an uncompromising commitment to quality, The updated Crankbrothers Stamp 1 Gen 2 pedals boast a robust nylon composite body and inheri the tried-and-true internals from the award-winning Stamp 7 flat pedals, keeping you supported lap after lap.
________
Specifications:
- Optimal size-specific surface area
- Thin, concave profile - 13.5mm to 15.5mm pedal body height
- New one-piece replaceable traction pins, 10 per pedal
- Upgraded, fully serviceable IGUS bearings & seal system
- Stamp Small recommended for shoe sizes: 3-10 (US M) // 37-43.5 (EU)
- Stamp Large recommended for shoe sizes: 10-15 (US M) // 43.5-49 (EU)
- Ideal for Endure and Trail
FOOTPRINT: Large - 114mm x 111mm, SmallĀ - 100mm x 100mm
SHOE SIZE: Large - US 10-15 // EU 43.5-49, Small - US 3-10 // EU 35-43.5
WEIGHT Large - 348g per pair, Small - 321g per pair
WARRANTY 5 years
INNER BEARING TYPE Igus LL-glide bearing
OUTER BEARING TYPE Igus LL-glide bearing
BODY MATERIAL Composite
TRACTION PINS 10 replaceable per pedal
PIN LENGTH 23mm inner, 25mm outer
SPINDLE MATERIAL Forged SCM 435 Chromoly Steel
