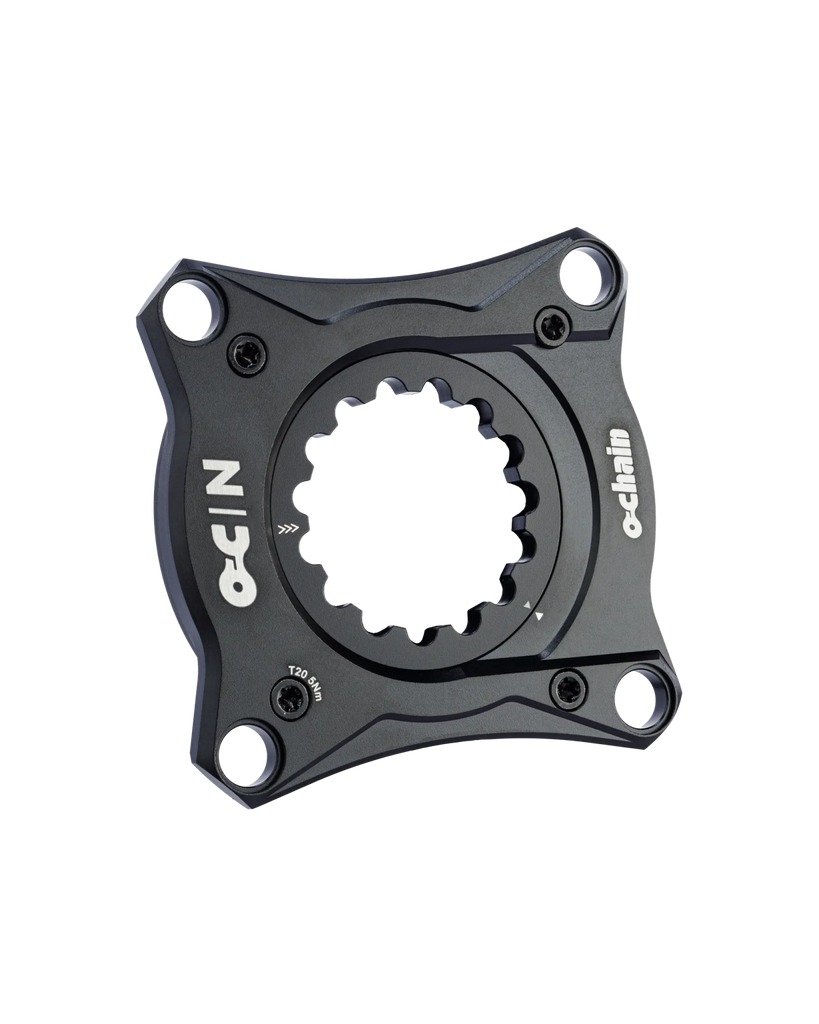

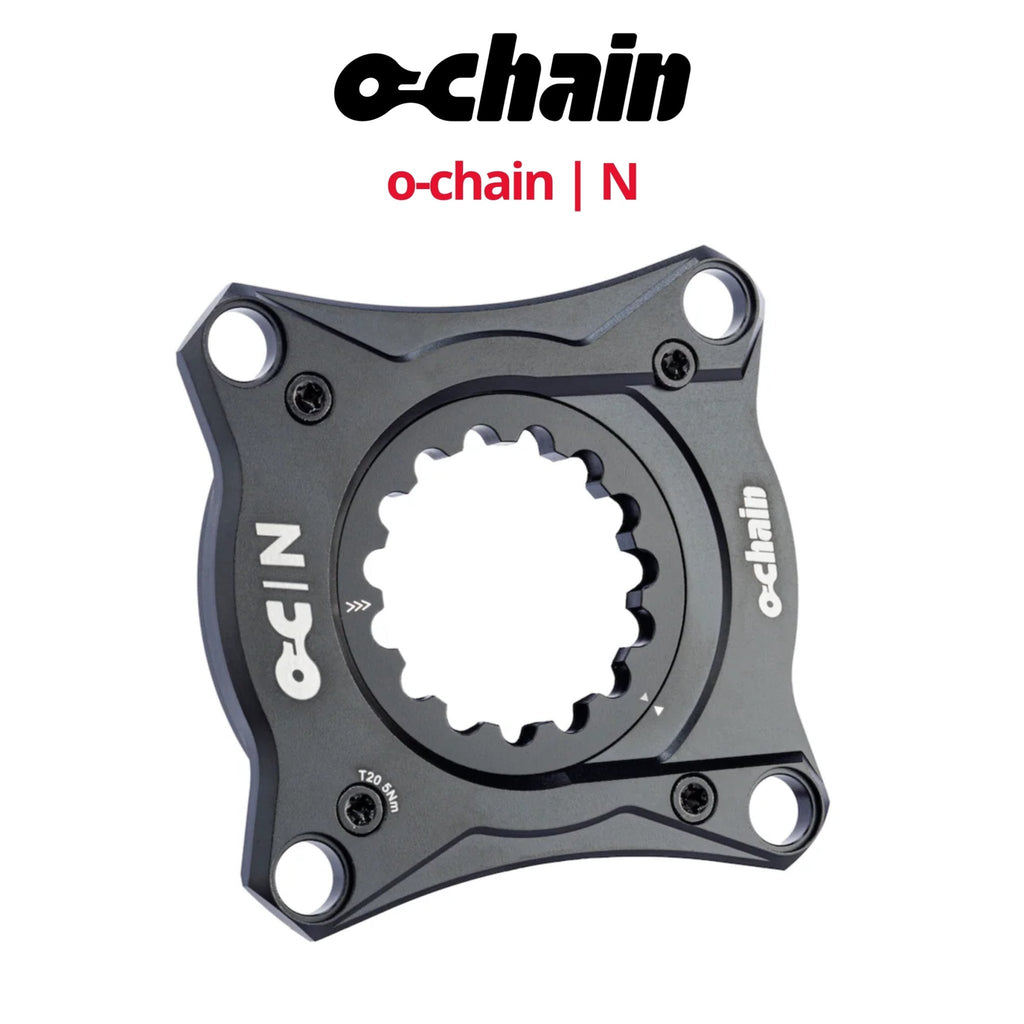

Meet the NEW Ochain | N, an innovative active spider that reshapes your ride and boosts overall bike performance. By allowing the chainring to rotate backward, Ochain decouples the drivetrain from the suspension, delivering a smoother, more efficient feel that elevates every trail experience.
It’s no surprise that more than 15 elite teams on the World Cup Downhill and Enduro circuits have adopted Ochain | N—proof that this technology is redefining what’s possible in high-level cycling.
What does it do for you?
Ochain is an active spider, allowing the chainring to rotate backwards in order to disengage the transmission from the suspension, improving the whole riding experience and the bike’s performance.
All suspension bikes have a degree of 'pedal kickback' when the suspension is compressed. This is due to the distance between the rear wheel axle and the instant centre (IC) of the suspension pivots increasing as the suspension compresses. Because the chain cant be stretched, it pulls back on the cranks, trying to rotate them counterclockwise. In practice, there isn't enough force to physically lift the rider up via the cranks, so this force is manifested in the suspension firming up. This equates to a loss of suspension performance over bumps, when you need it the most. The Ochain decouples this effect by allowing the cranks to effectively rotate as the chain is pulled back. This results in a very noticeable improvement in suspension action over rough terrain.
What's the difference between the R and the N?

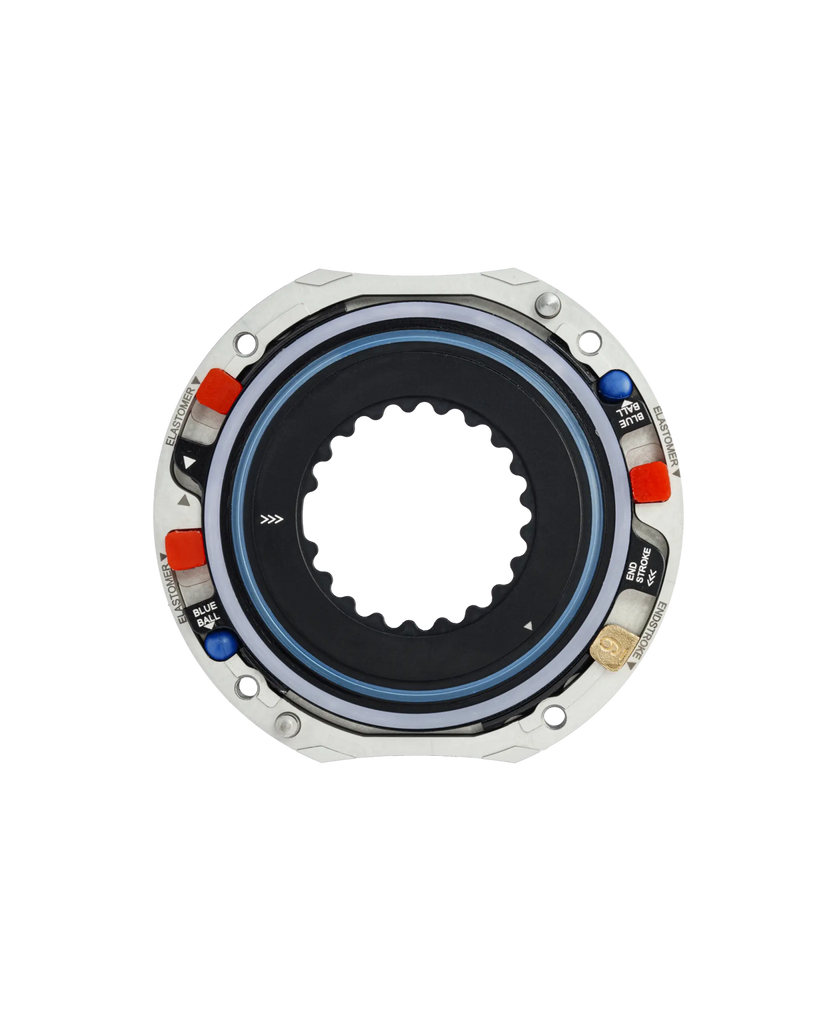

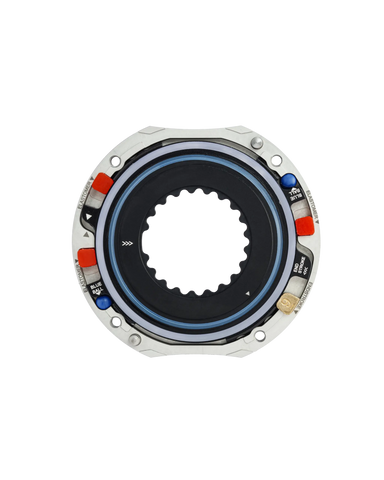

Both devices have adjustable degrees of freedom. On the R it is external and can be adjusted between 0, 4, 6, 9 and 12 degrees. 0 degrees acts as a normal chainring would (meaning you can set it to have no effect on pedaling for long climbs) and 12 degrees gives you the most amount of kickback-deleting effect which gives the best downhill performance. On the N model, the degrees of freedom are also adjustable between 4, 6, 9 and 12, but this is done internally and requires the Ochain to be disassembled and rebuilt (about a 20 minute job in the workshop).
________
Specifications:

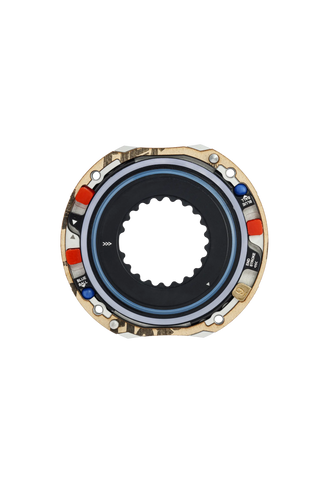

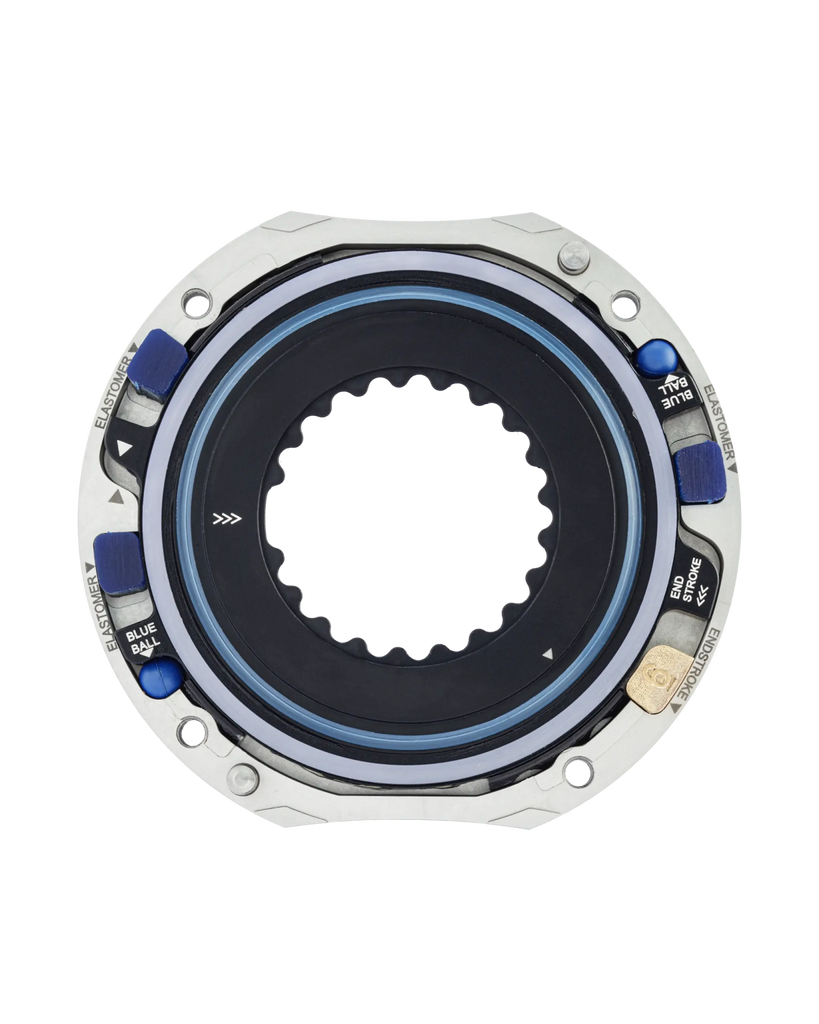

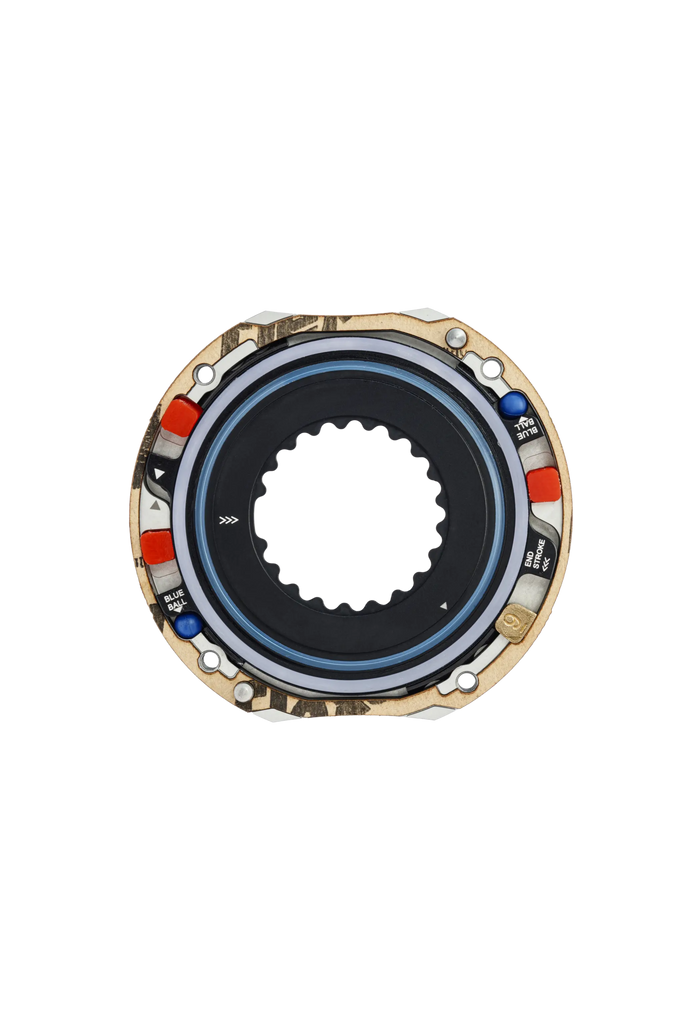

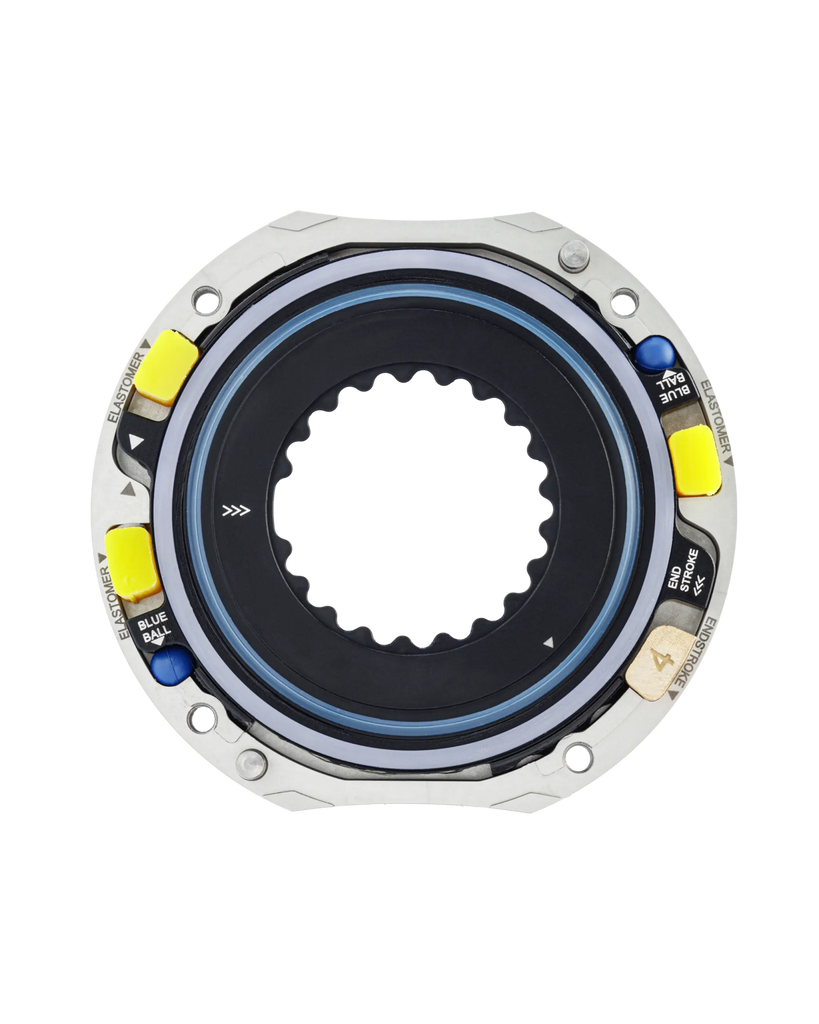

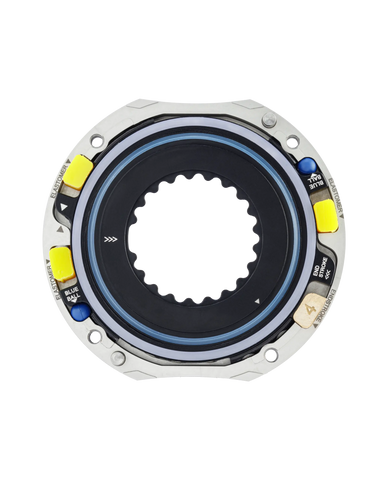

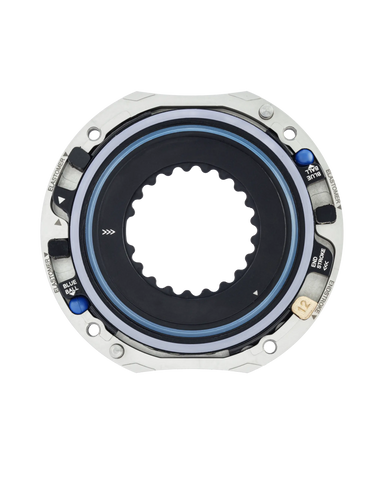

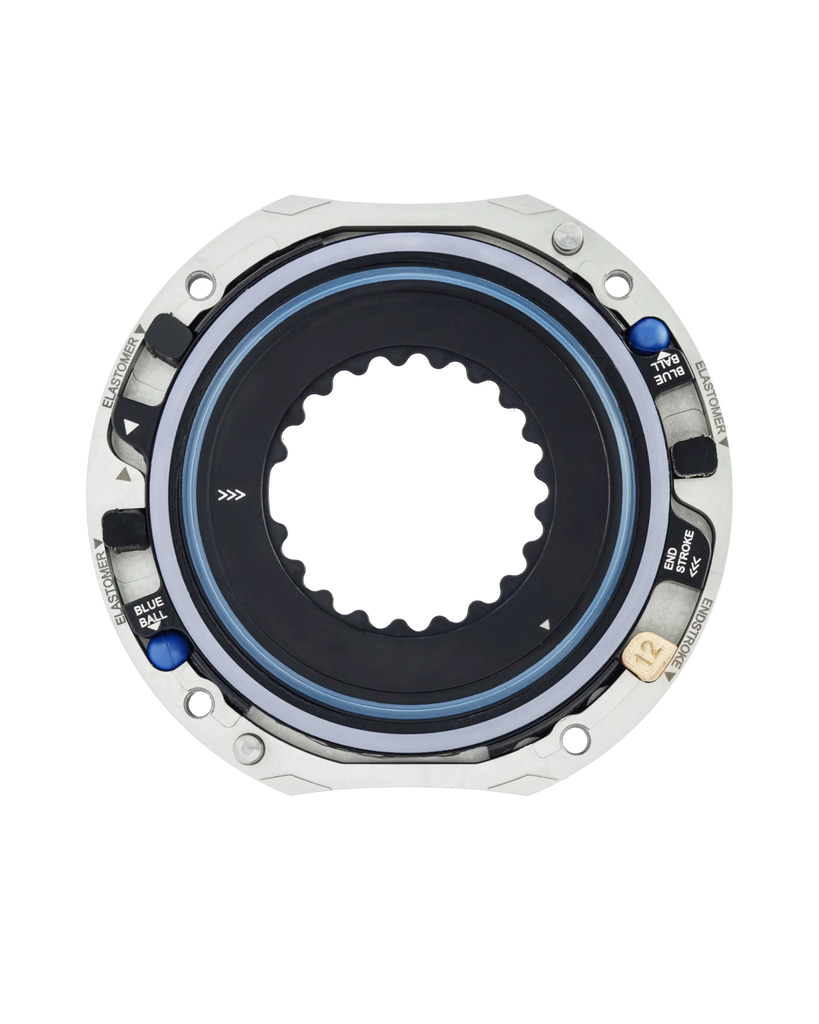

- Customizable Setup: Ochain will come with a 9 degrees set up, with the possibility to switch between 4°, 6°, 9° and 12° setups, buying the dedicated Elastomer kit, tailoring your ride to your preferences.

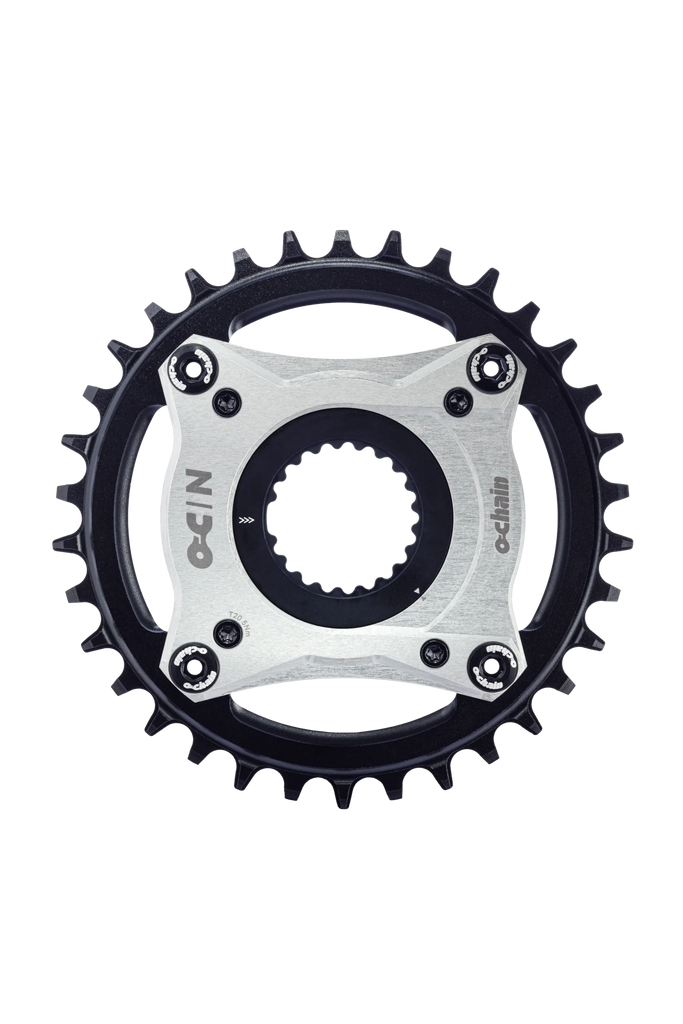

- Chainrings Compatibility: BCD 104 mm chainrings from 30T ( NOT INCLUDED)
- Chainring Offset: +3mm virtual chainring offset (add +3mm or +4,5mm, with the Ochain adjust kit)

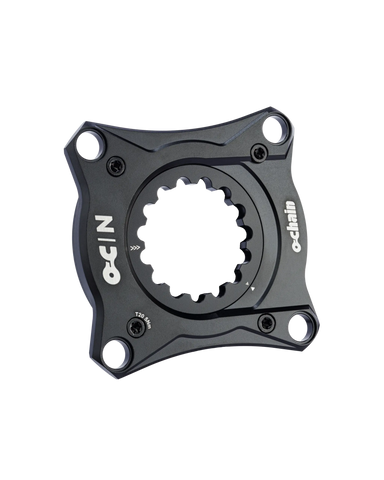

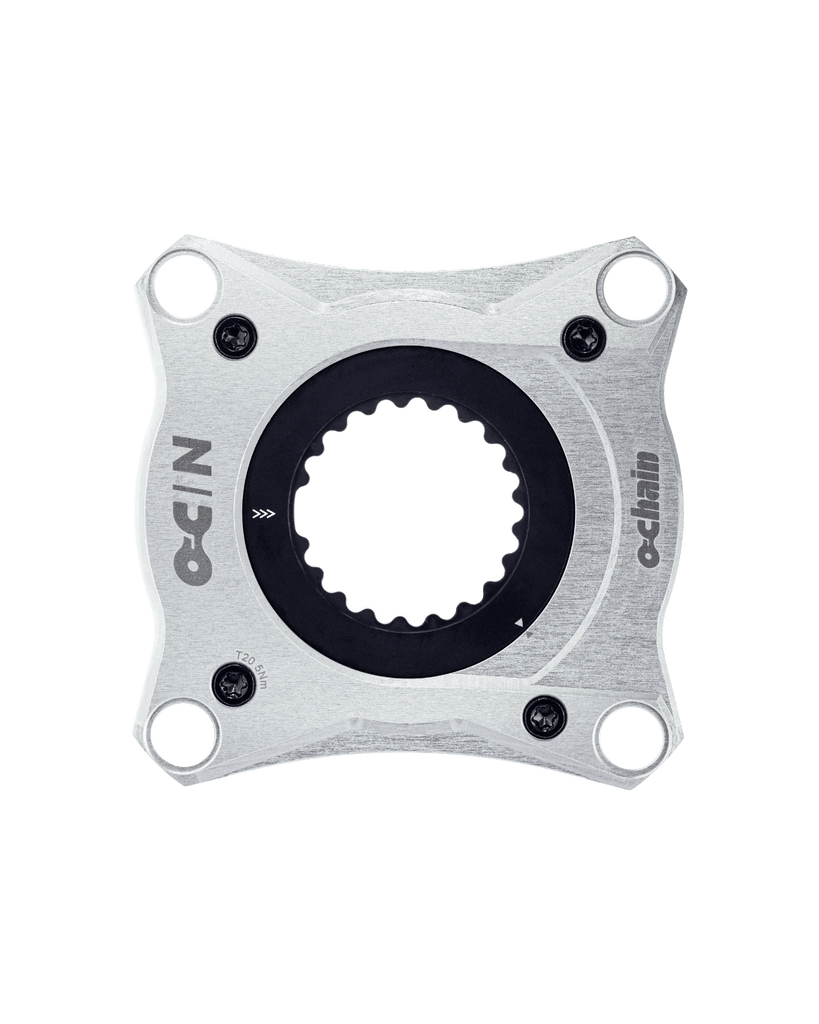

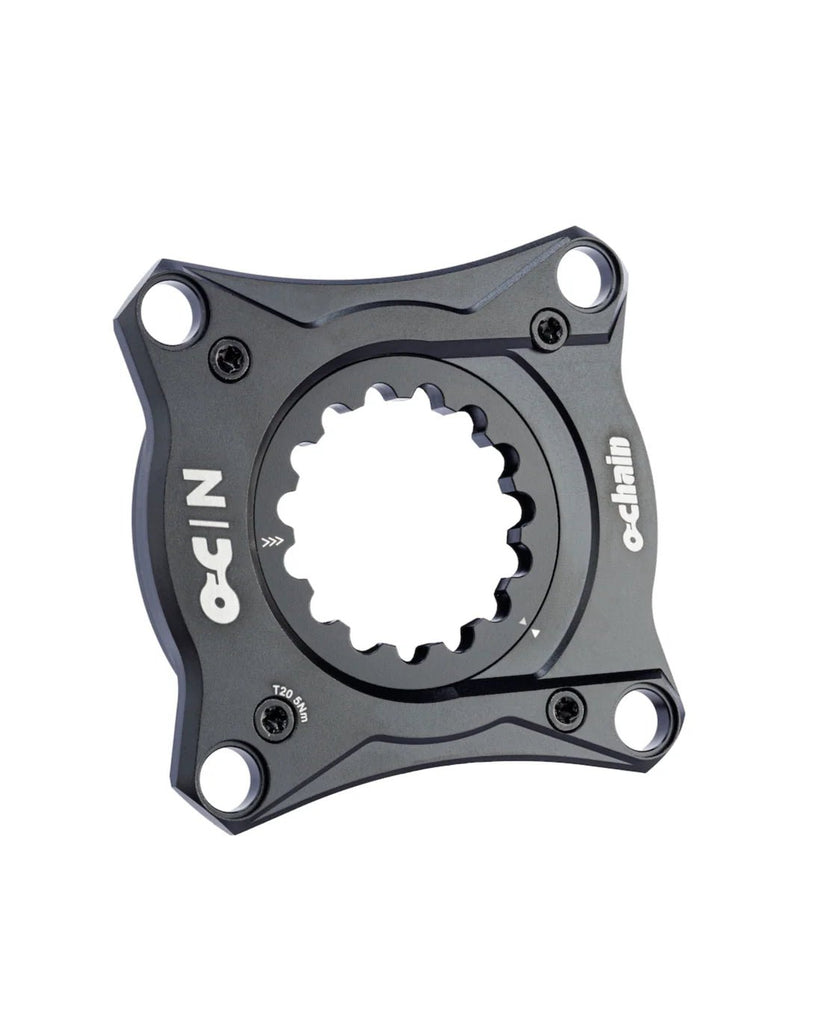

- Sleek Finish: Black or Silver hard anodization
- Material: Crafted from high-quality Alloy 7075 T6
- Weight: 140 grams (depending on the version)
- Dimensions: 93 mm x 93 mm x 13 mm
- Weight Limit: Rider and bike max 120kg

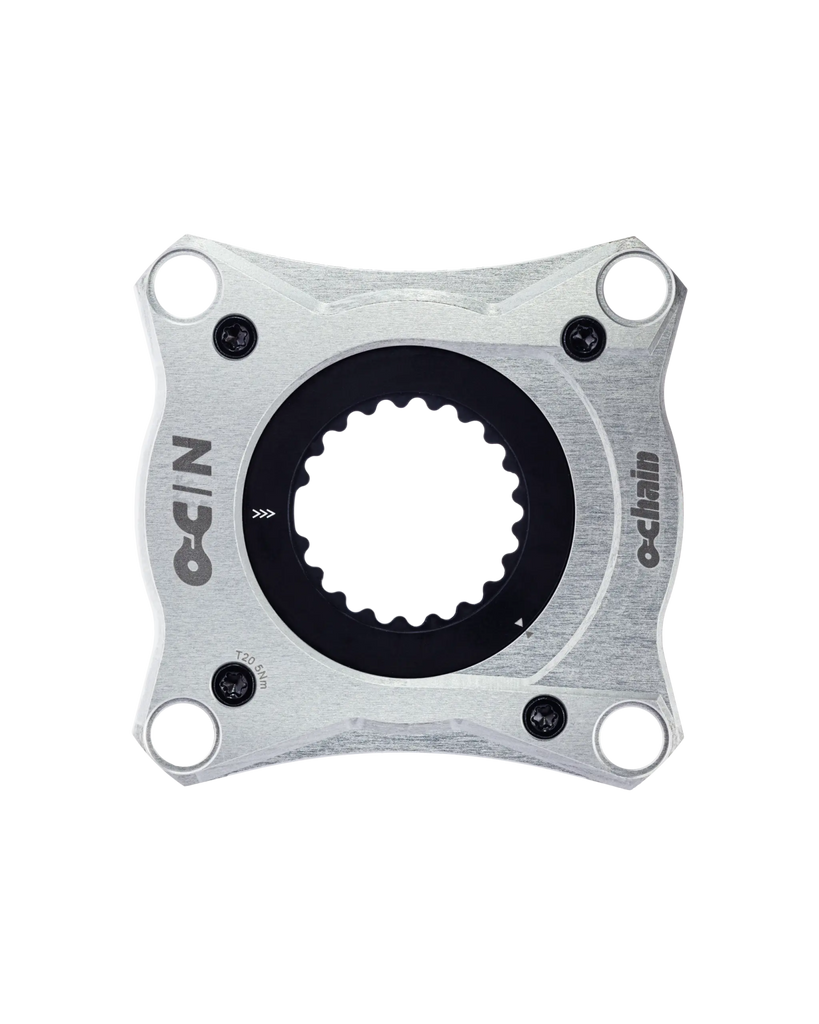

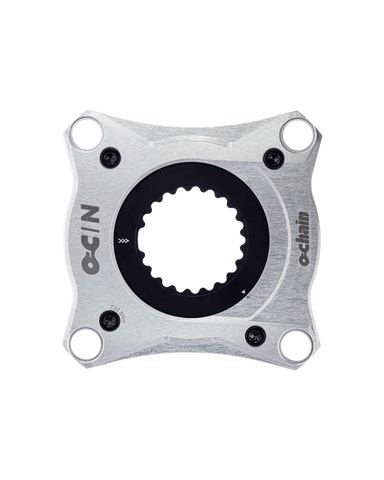

- Colors: Nero (Black), Pregio (Natural)
________
Compatibility:
- Ochain is a active spider made for the direct mount cranks
- Ochain is NOT COMPATIBLE with the Shimano Saint and Zee cranks
- Ochain can not guarantee the compatibility with all the chainguide on the market
- Ochain chainring with Ochain nuts is the only chainring guaranteed to be compatible
