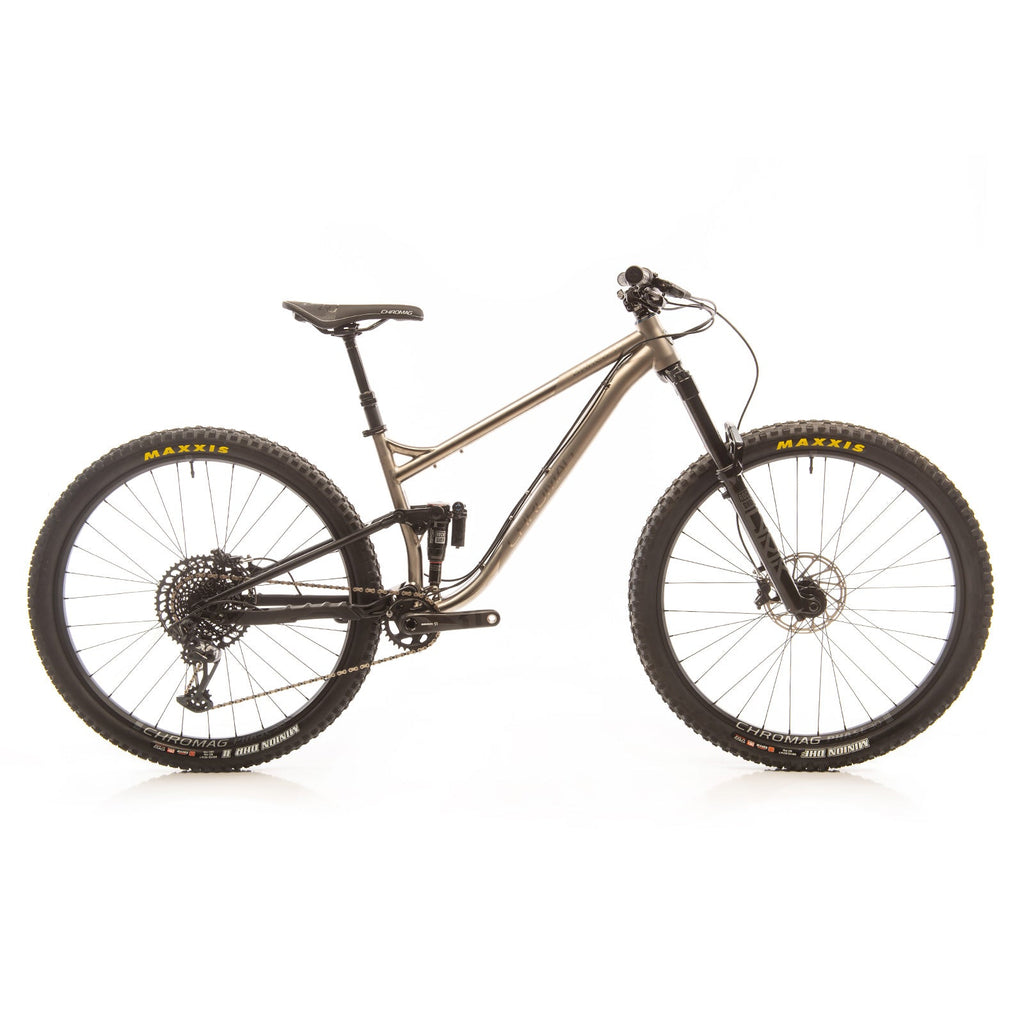

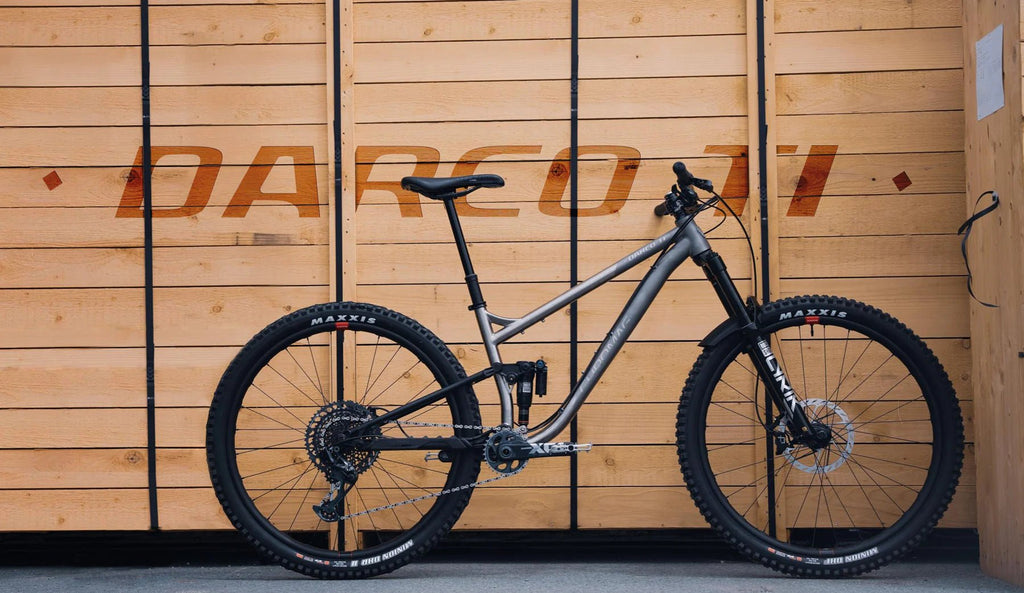

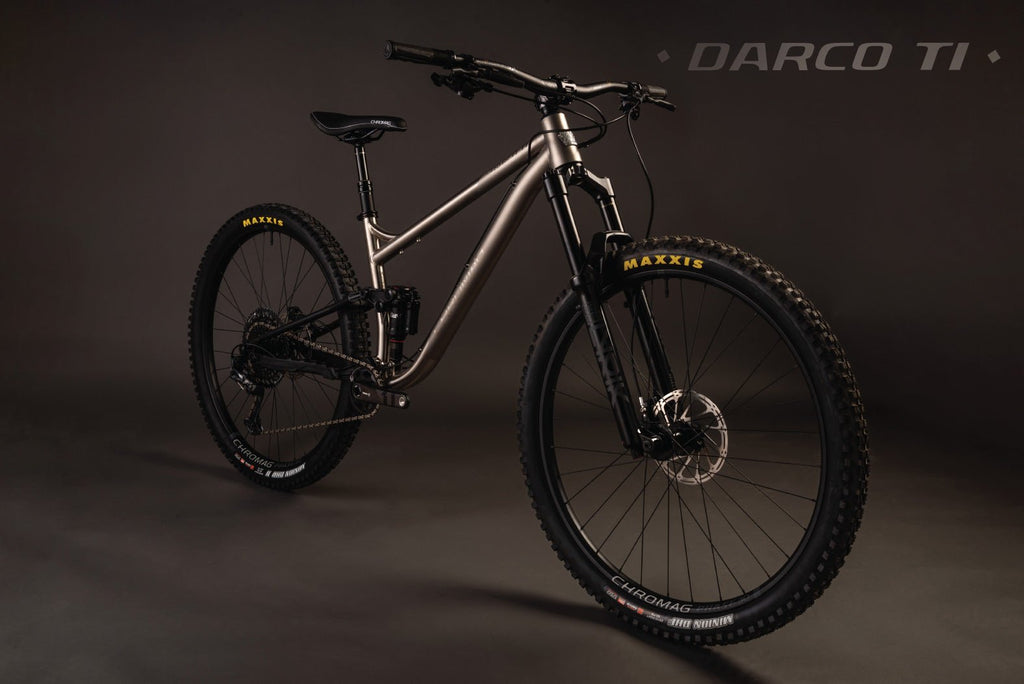

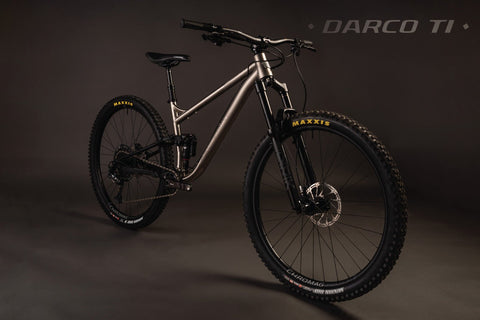

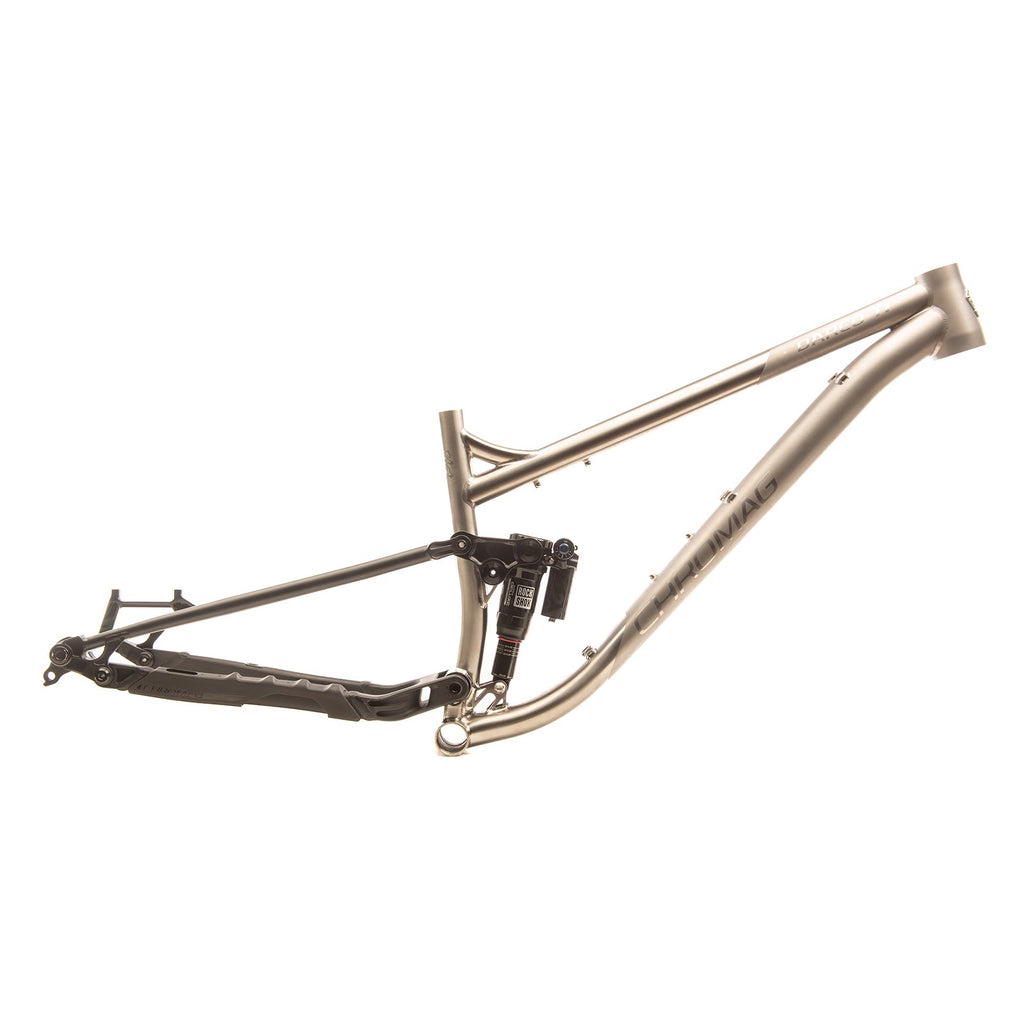

Chromag Darco Ti

Drawing on nearly two decades of frame-building know-how, Chromag’s first full-suspension bike—the Darco Ti—stays true to the brand’s steel-hardtail heritage. It rolls on 29-inch wheels with a 160 mm fork and a burly 120mm rear end: the “hardtailer’s full-sus.” Slack up front (64° head angle) and steep out back (78° seat angle) with a roomy cockpit (490 mm reach, M/L), it’s tuned for Sea-to-Sky climbs and rowdy descents alike.

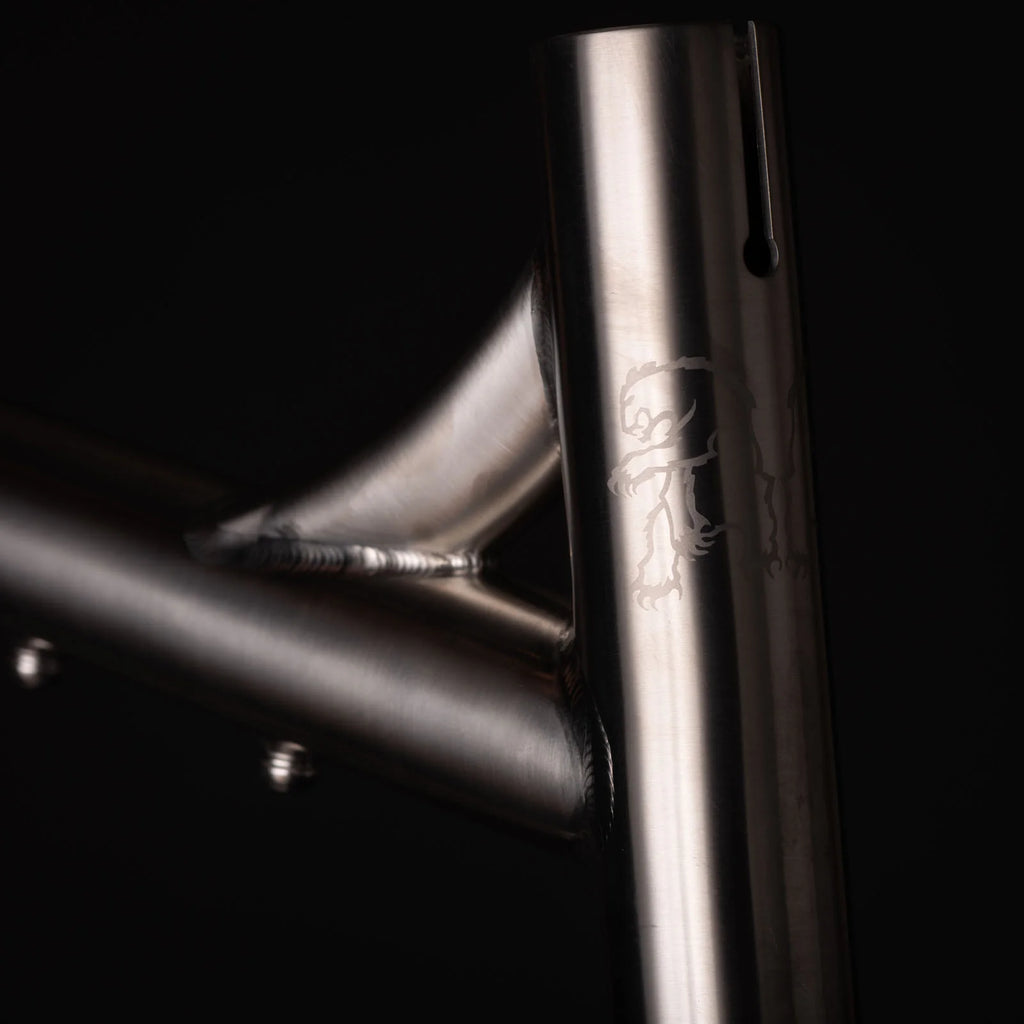

The Chromag Darco Ti offers the unmatched advantages of titanium, delivering exceptional weight savings, a smooth ride feel, and a distinctive silky finish. Designed for riders who value performance and craftsmanship, this titanium bike frame combines durability with refined aesthetics, making every ride both efficient and enjoyable. Experience the unique blend of strength and elegance that only titanium can provide.

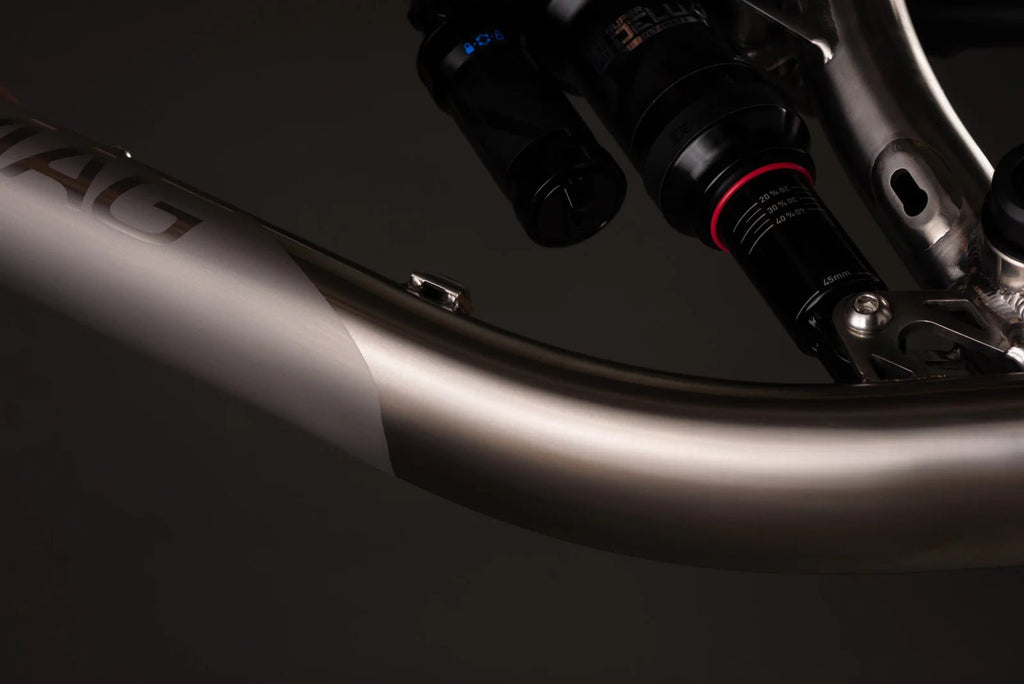

A piggyback shock handles the big hits Chromag riders are used to sending on hardtails, keeping composure when the trail turns hectic.

The bike carries special meaning: named “Darco” in honor of Chromag mechanic and friend D’Arcy “The Dark One” Burke, who passed away in 2020, it’s a heartfelt tribute wrapped in steel and speed.

________
Key Features:

• All Mountain Geometry oriented to rugged, varied terrain
• 120mm rear suspension paired with 150-160mm fork
• 4130 heat-treated Chromoly and 6066 T-6 alloy tubing
• 29" wheels
• Precision hardware and bearings throughout
• Rockshox super deluxe reservoir shock

________
Specifications:

• Frame Construction // 3AL 2.5V Titanium / 4130 Chromoly Steel / 6066 Aluminum
• Rear Travel // 120mm
• Wheel Size // 29”
• Rear Axle // 180mm, M12 X 1.00mm - Boost 148 UDH™ (Included)
• BB Type // BSA 73mm Threaded
• Headset // 44-56mm
• Linkage // Rocker Driven Horst Linkage
• Shock Size // 165 X 45mm Trunnion
• Lower Shock Hardware // 20 x 8mm
• Hanger // SRAM™ UDH™
• Recommended Fork Offset // 42mm
• Recommended Fork Travel // 150mm
• Seatpost Size // 31.6mm
• Seatclamp Size // 35mm
• Bottle Cage Mount // Yup!
• Gear Mount // Yup!
• Brake Mount // 180mm Post
• Frame Weight // Frame: 9.34lbs // Complete: 33.3lbs
• Origin // Taiwan

________
XO Transmission Build:

• Fork // Rockshox Lyrik Ultimate 160mm
• Shock // Rockshox Super Deluxe Ultimate Air
• Stem // Chromag HiFi 40mm
• Handlebar // Chromag Cutlass 25mm Rise, 800mm
• Headset // Cane Creek Forty ZS
• Crank // SRAM X0 170mm
• Brakes // SRAM Code Ultimate Stealth
• Rotors // SRAM HS2 200mm

• Shifter // SRAM AXS Pod Controller

• Cassette // SRAM X0 Eagle Transmission
• Derailleur // SRAM X0 Eagle Transmission
• Rims // Chromag 29" Phase30
• Hubs // Chromag R4
• Tires // Maxxis Minion DHF/DHR
• Seatpost // RockShox Reverb AXS(150mm - S, M) (175mm - M/L, L, XL)
• Saddle // Chromag Trailmaster LTD
• Grips // Chromag Format
• Chain // SRAM X0 T-Type

Build options are subject to availability and liable to change without notice.
