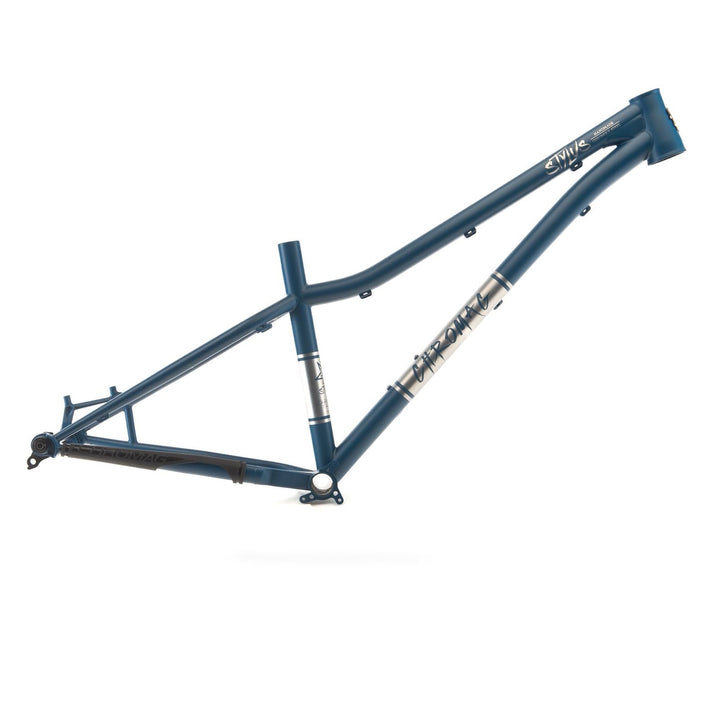

The NEW Chromag Stylus is a hardtail bruiser—versatile, confident, and game for everything from all-day trail missions to techy, high-impact lines.

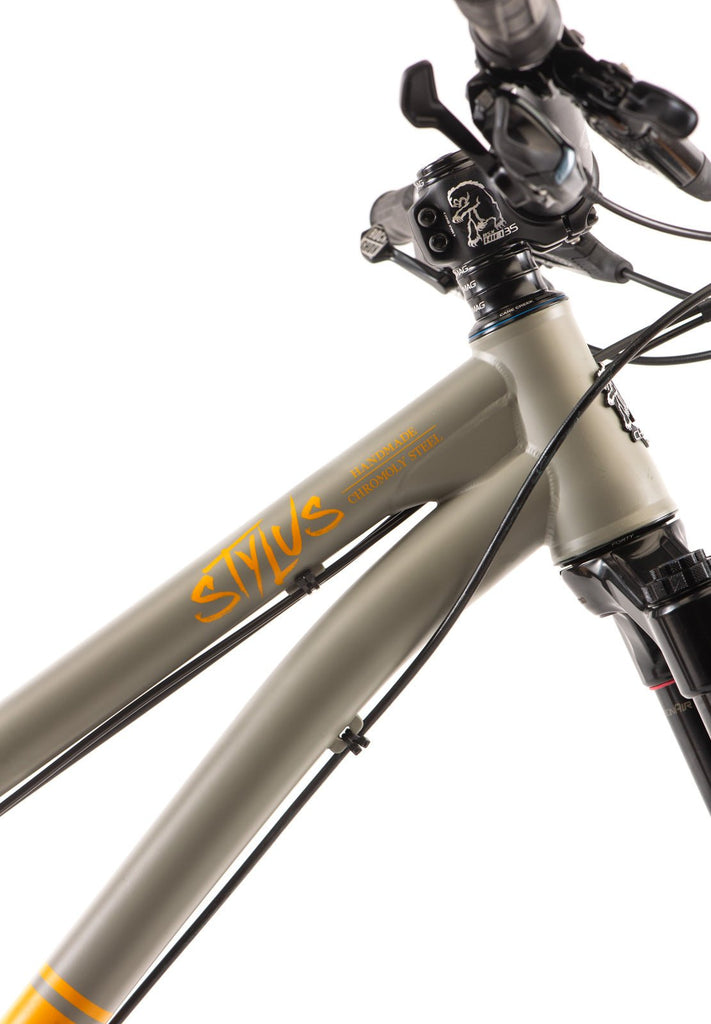

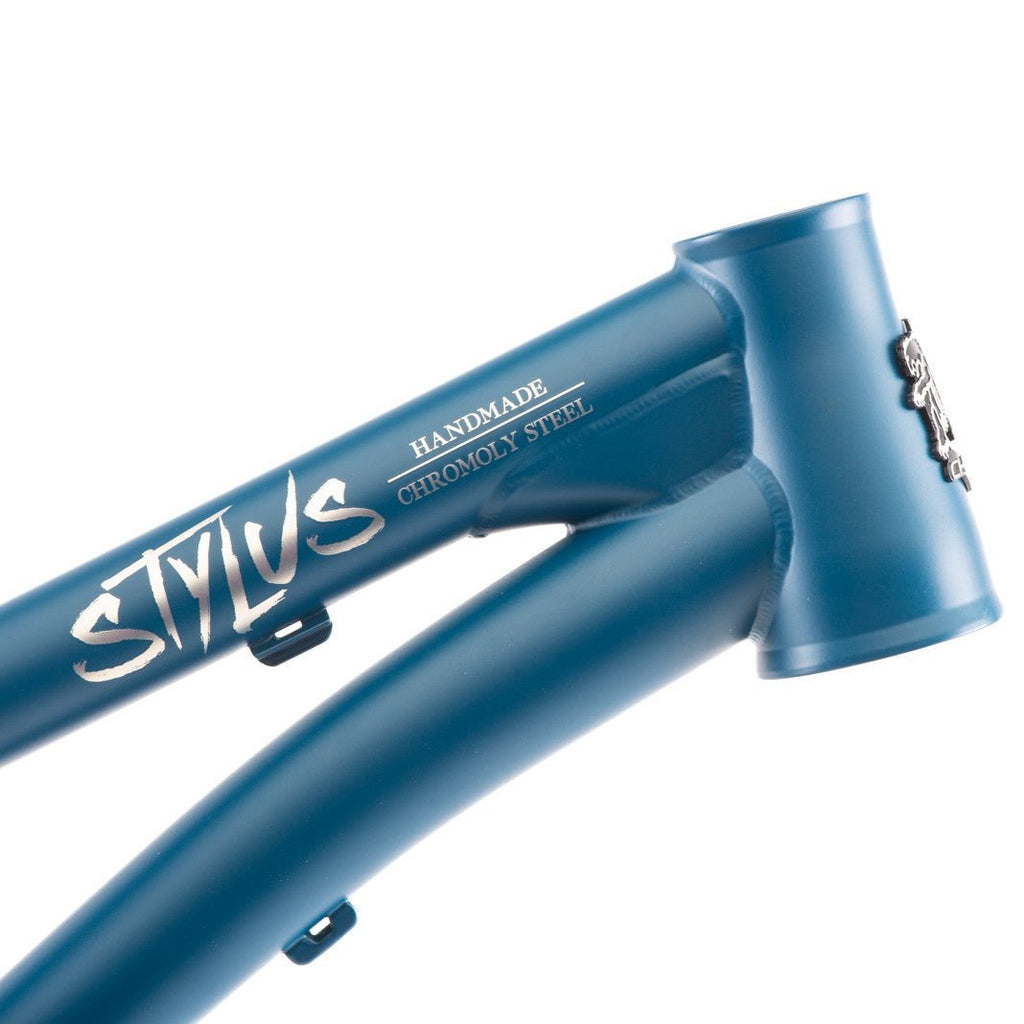

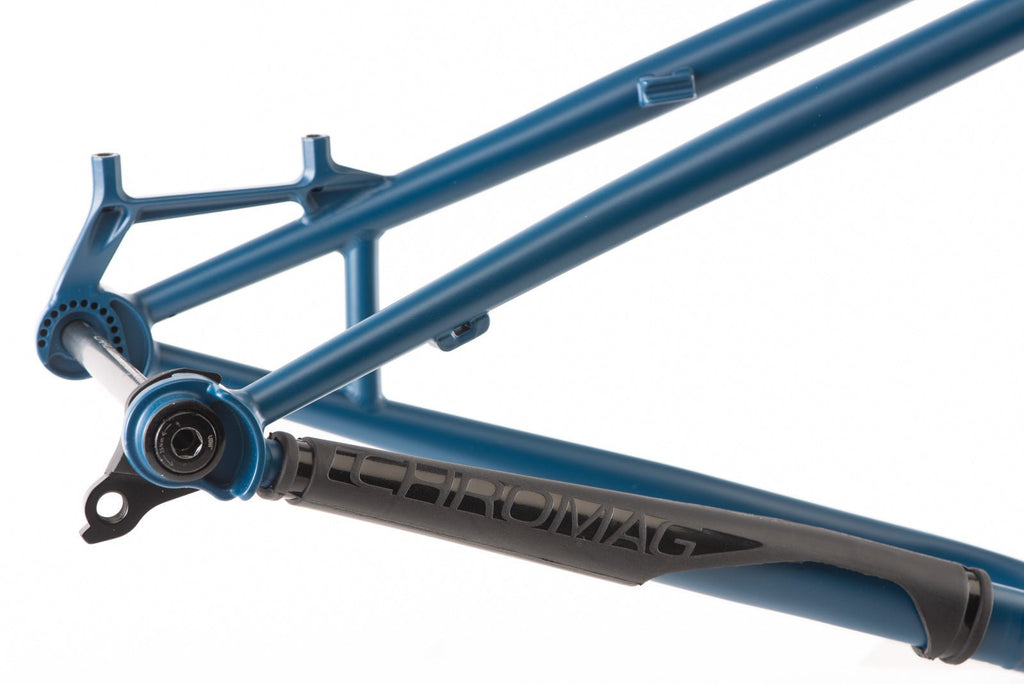

Built around a 160mm fork with a slack front end and a mullet setup (29" up front, 27.5" out back), it strikes the sweet spot between rollover speed and snap-fast agility. A reinforced headtube gusset boosts strength where it matters, while the Boost 148 x 12mm rear end and Chromag’s Yokel chainstay serve up generous tire clearance.
A short seat tube keeps standover low and lets you slam the post, so the frame disappears when you’re moving around on rough terrain or lacing DJ lines. It climbs with intent, descends with authority, and shrugs off abuse—built for riders who treat the mountain like a playground.
________
Key Features:

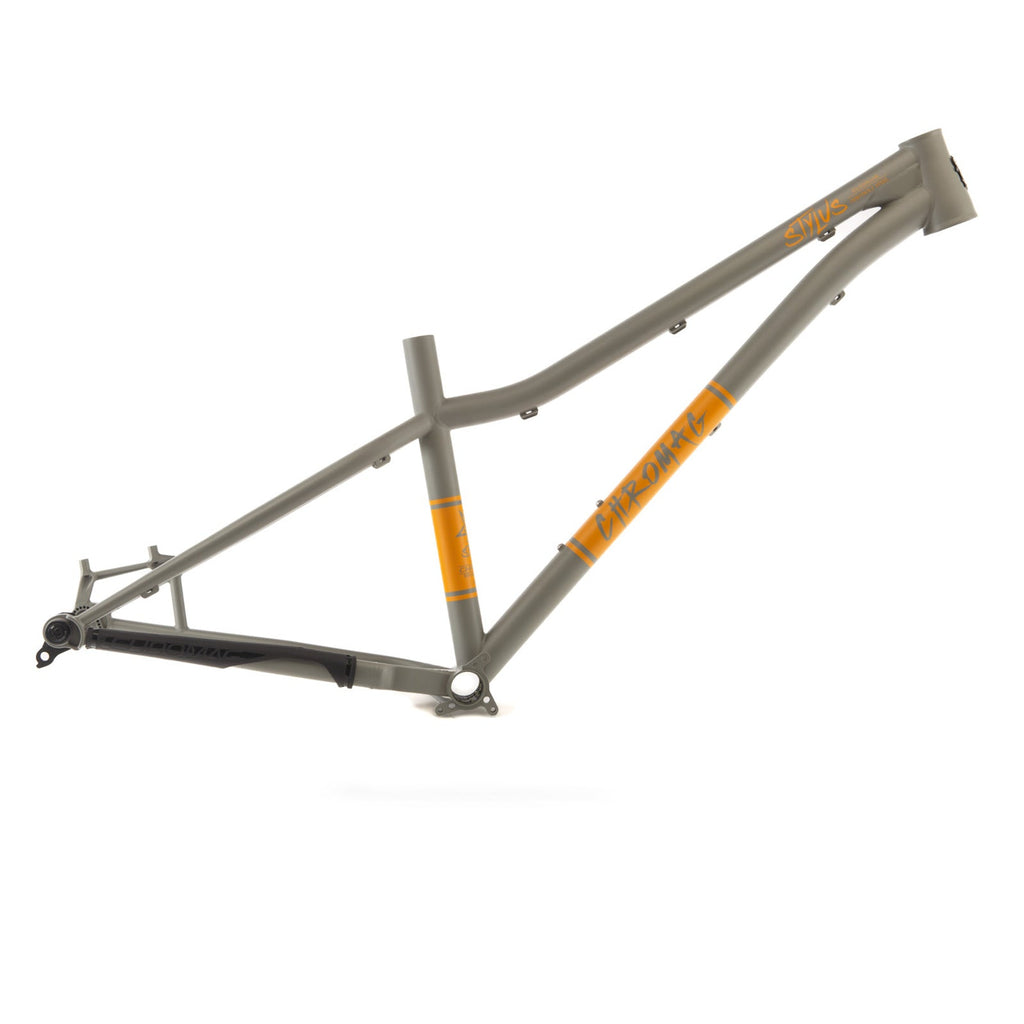

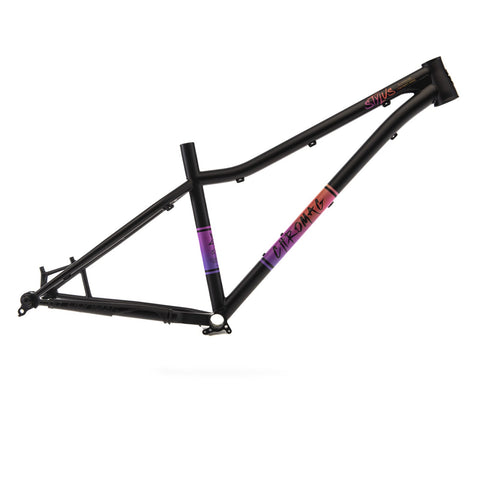

- Heavy duty 4130 custom drawn tubeset and CNC dropouts and yoke
- MX wheel size
- Handbuilt in Taiwan
- Designed around 160mm fork, with options to play with travel and wheel size.
________
Specifications:
- Wheel Size // 29/27.5"
- Recommended Fork Travel // 160mm (±10mm)
- Material // 4130 Chromoly Steel
- Frame Weight (M/L) // ---lbs
- Hub Spacing // Boost 148mm
- Headset // 44-56 Semi Integrated
- Seat Clamp Size // 35mm
- Seat Post Size // 31.6mm
- BB // 73mm Threaded, ISCG Mounts
- Hanger // UDH (Included)
- Rear Axle // 180mm, M12 X 1.00mm - Boost 148 UDH (Included)
- Brake Mount // Post Mount 180mm
- Frame Origin // Taiwan
________

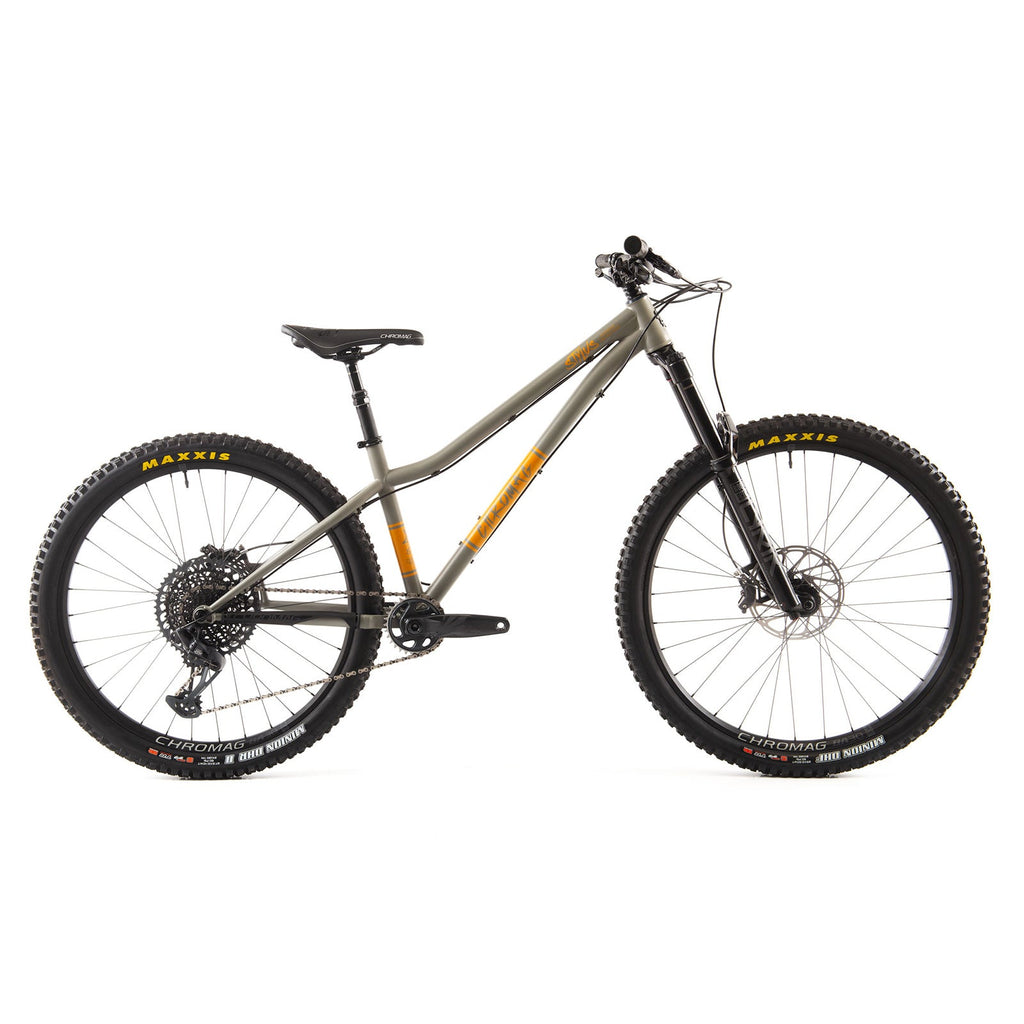

GX Eagle Build:
- Fork // Rock Shox Lyrik Select+ 160mm Boost 110x15mm
- Stem // Chromag HiFi BSX 35mm
- Bar// Chromag OSX35 25mm Rise, 800mm
- Headset // Cane Creek Forty ZS
- Crank // SRAM GX 170mm
- Brakes // SRAM Code RSC
- Rotors // SRAM 200mm
- Shifter // SRAM GX Eagle
- Cassette // SRAM GX Eagle 10-52t
- Derailleur // SRAM GX Eagle
- Chain // SRAM GX Eagle
- Rims // Chromag 29/27.5" BA30
- Hubs // Chromag R4
- Tires // Maxxis Minion DHF/DHR
- Seatpost // RockShox Reverb(150mm - S) (150mm - M) (180mm OneUp- M/L) (200mm - L, XL)

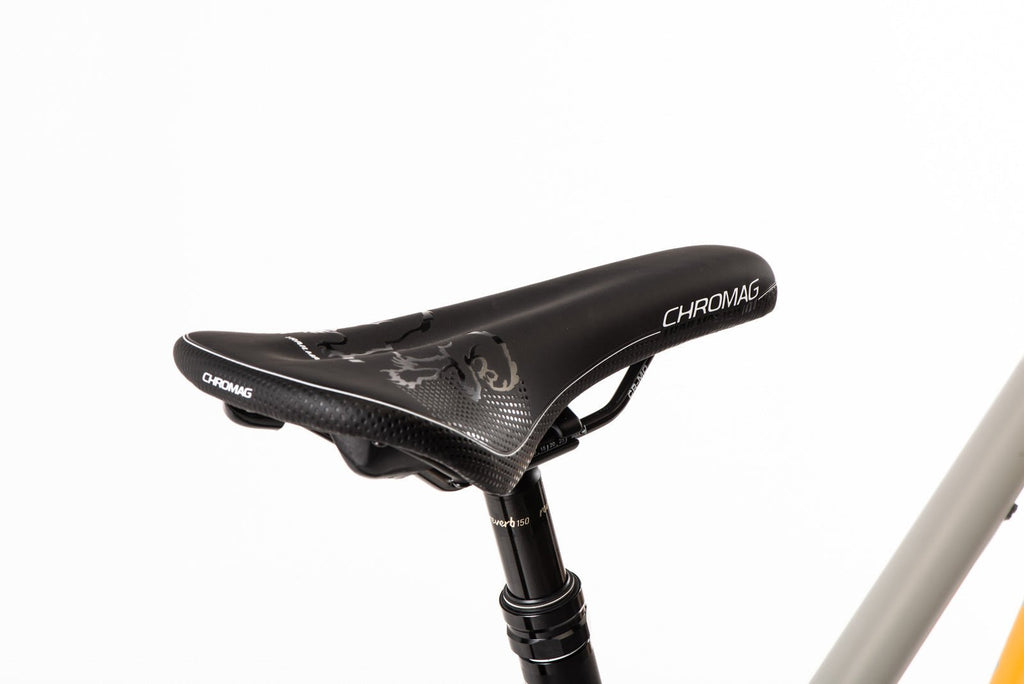

- Saddle // Chromag Trailmaster DT
- Grips // Chromag Format
Build options are subject to availability and liable to change without notice.
