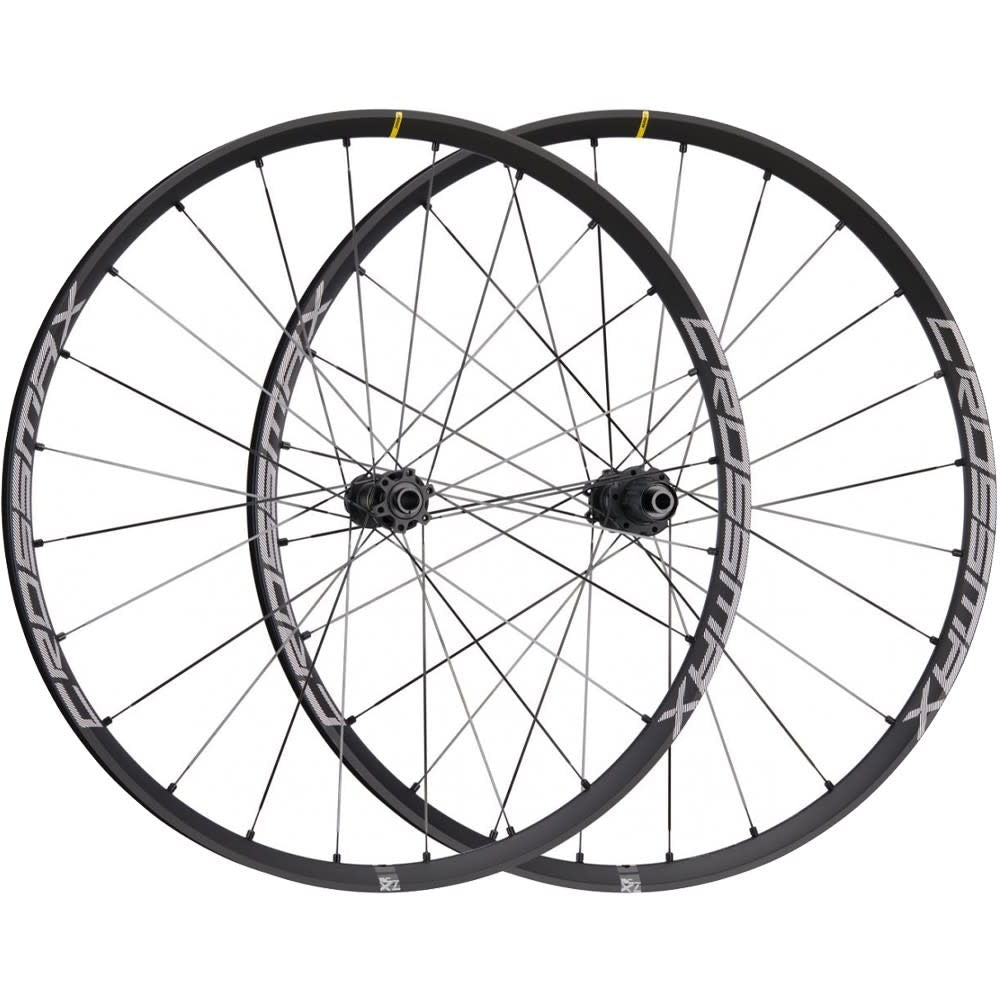

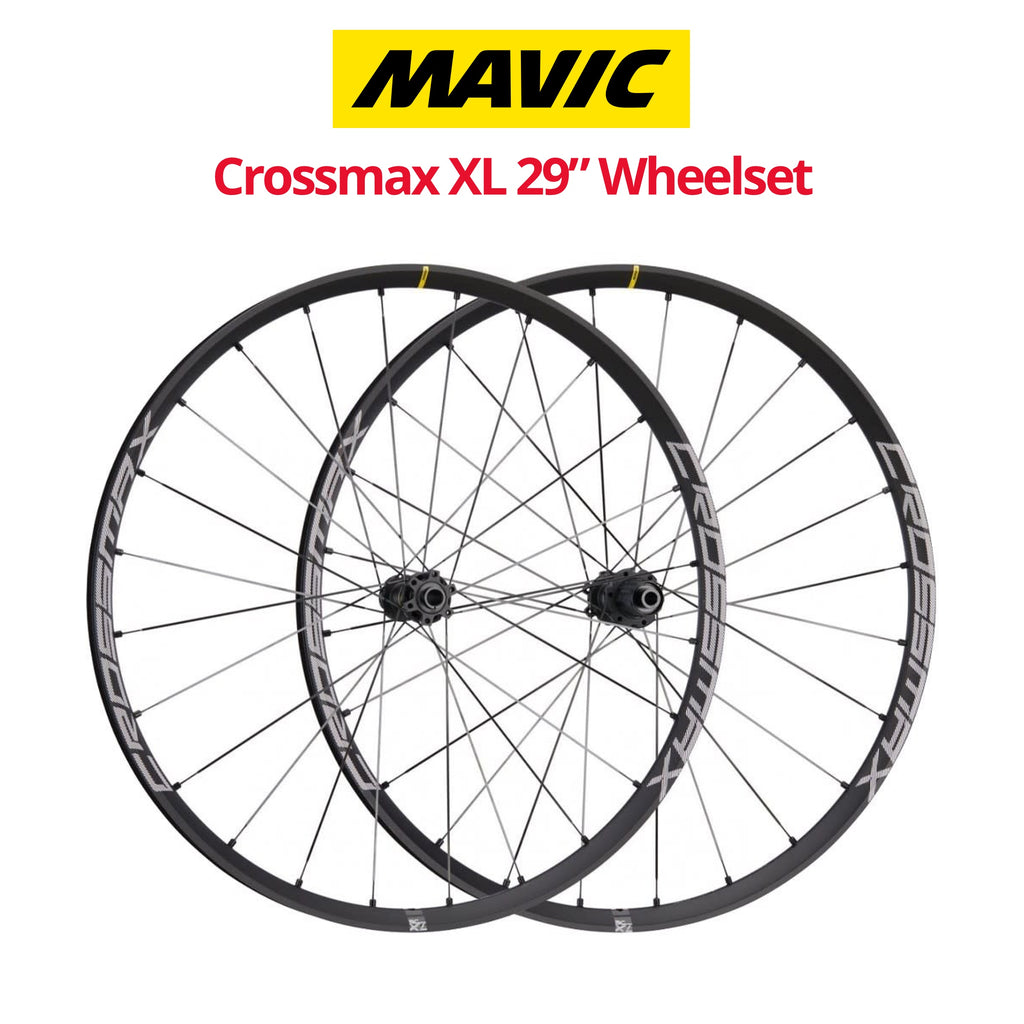

Trail riding is about adventure, flow, and fun—seeking wild places and linking perfect ribbons of singletrack. To make the most of it, you need total trust in your kit, especially your wheels, which shape the entire ride feel. That’s precisely where the new Mavic Crossmax XL steps in: the highest-quality aluminum trail wheelset Mavic has ever produced, built to boost confidence on every outing.

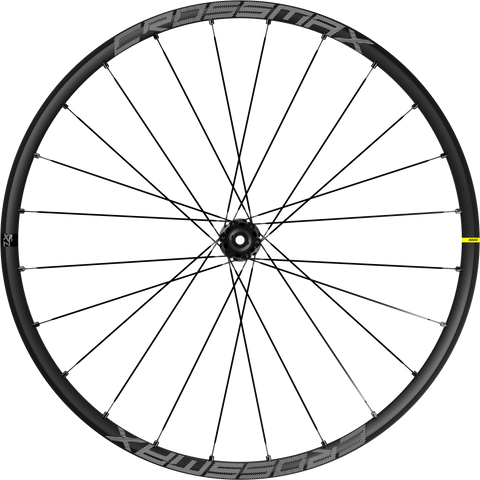

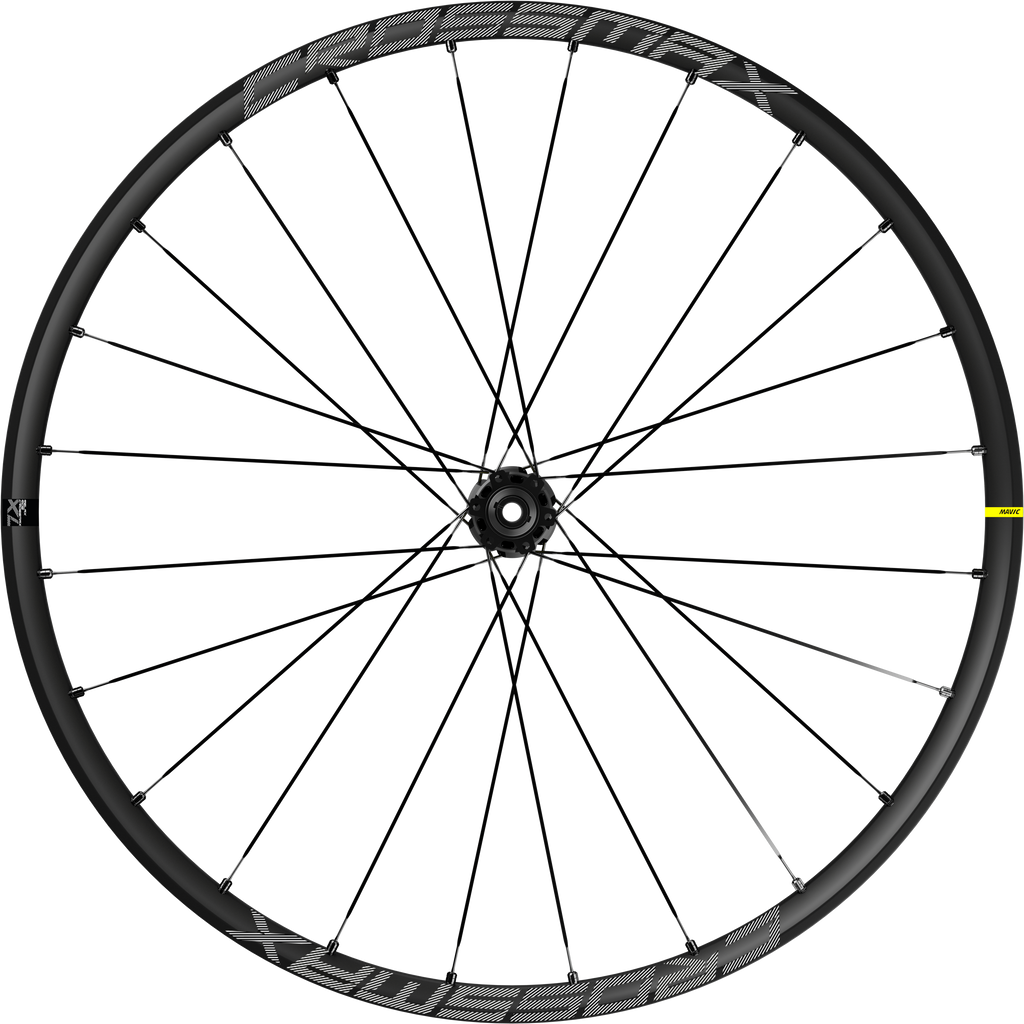

The rims use Mavic's patented Fore construction, with a fully sealed upper bridge that eliminates rim tape altogether. You save 30 grams per wheel and skip the tubeless tape hassle. A 30mm internal width optimizes modern trail tires, and a super-strong triangular profile is purpose-built to absorb trail impacts. The Black Shield finish adds a distinctive look while protecting against scratches and abrasion.

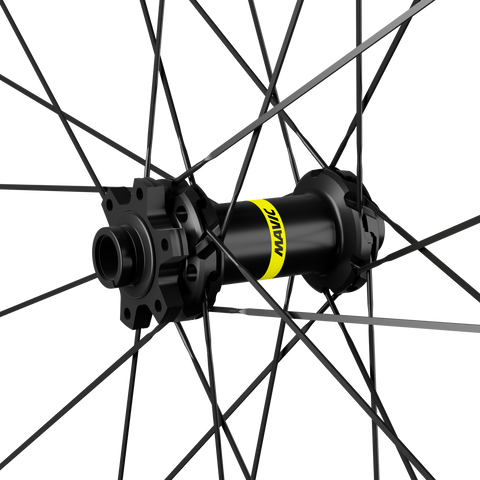

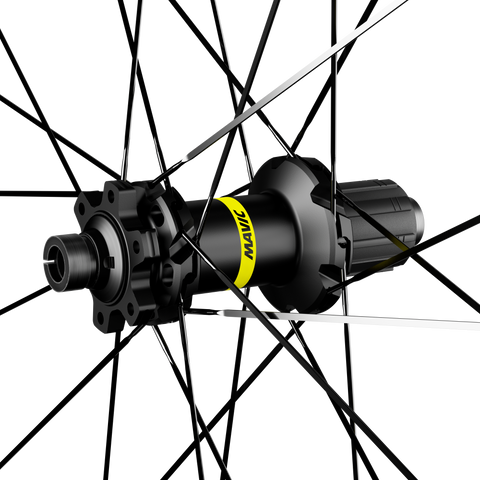

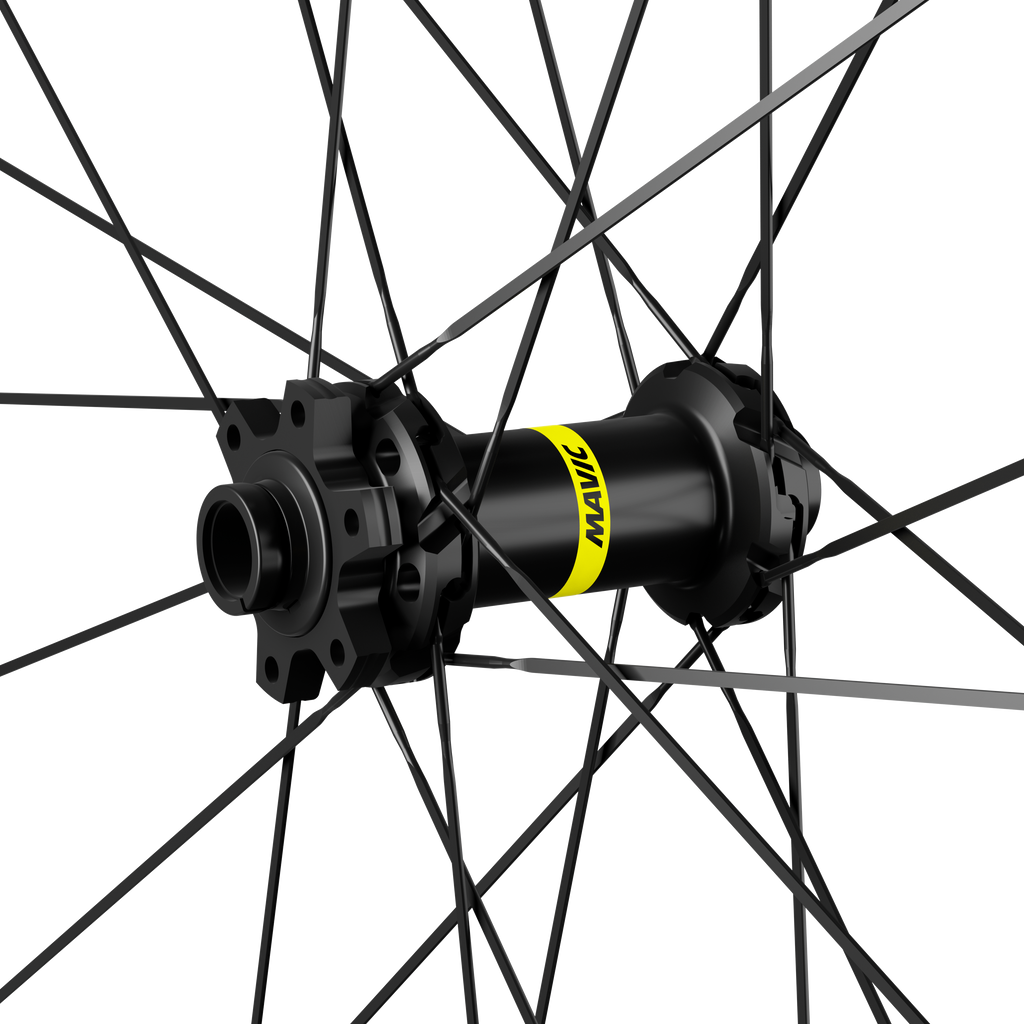

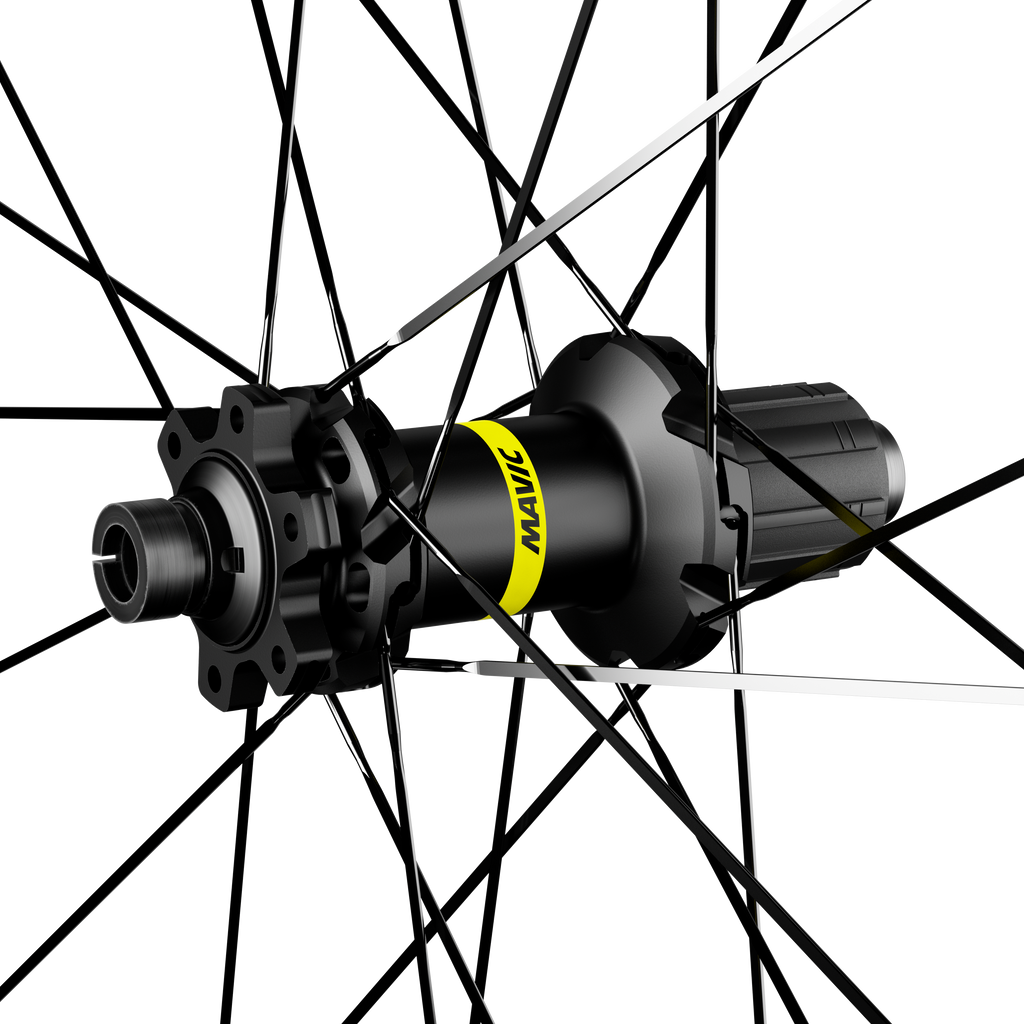

Mavic laces each wheel with 24 straight-pull spokes to hit the sweet spot between lateral stiffness and vertical compliance. Infinity hubs bring a lighter, stiffer build and pair with the ultra-reliable ID360 double-ratchet system for rapid engagement. The wheelset is available in 6-bolt or Center Lock, compatible with Shimano HG9, SRAM XD, and Micro Spline freehub bodies. Includes UST tubeless valves, spare spokes, and accessories.
________
Features:
- Versatile, dynamic trail riding performance
- Wide, strong rim profile with Black Shield treatment protects your rim against impacts and scratches. New lighter, stiffer Infinity hubs with ultra-reliable ID360 freewheel system for instant acceleration.
- More confidence and control on rugged terrain
- 30mm wide rim is optimized for lower tire pressure, giving you a smoother ride with more traction and control. Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.
- Most user-friendly tubeless system
- Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.
________
Specifications:
- Weight
- Weight Pair : 1960 g
- Weight Front : 915 g
- Weight Rear : 1045 g
- Rims
- Material: Maxtal
- Height: 22 mm
- Joint: SUP welding technology
- Internal width: 30 mm
- Drilling : Fore tapeless tubeless technology (front/rear 24 holes)
- Braking: disc
- Profile: asymmetrical
- ETRTO size: 622x30TC
- Tire: UST Tubeless Ready
- Spokes
- Material: steel
- Shape: straight, extra-flat, constricted, antirot (front and rear)
- Nipples: brass, black
- Screw: M7
- Lacing: crossed 2 (front and rear)
- Hubs
- Body material: aluminium
- Body design: INFINITY
- Disc standard : 6 Bolts or Center Lock®
- Axle material: aluminum
- Axle size: front 15x110 / rear 12x148
- Freewheel technology: Instant Drive 360
- Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB
- Bearing technology: QRM automatic setting - sealed cartridge
- Compatibility
- Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
- Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
- Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
- Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
- Delivered with
- User guide
- UST valve not mounted on wheel
- 2 replacement spokes with each wheel
- 2 Multifonction adjustment wrench with the rear wheel
- Intended use
- Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
- Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
- ASTM category 4 : enduro and trail riding
- Maximum weight supported by the wheels: must not exceed 150 Kg (bike weight included)
