Hope Tech has established a reputation for producing highly durable components. Following four years of proven performance, their acclaimed Tech 4 brake system has been carefully updated, focusing on precise enhancements rather than a complete redesign.

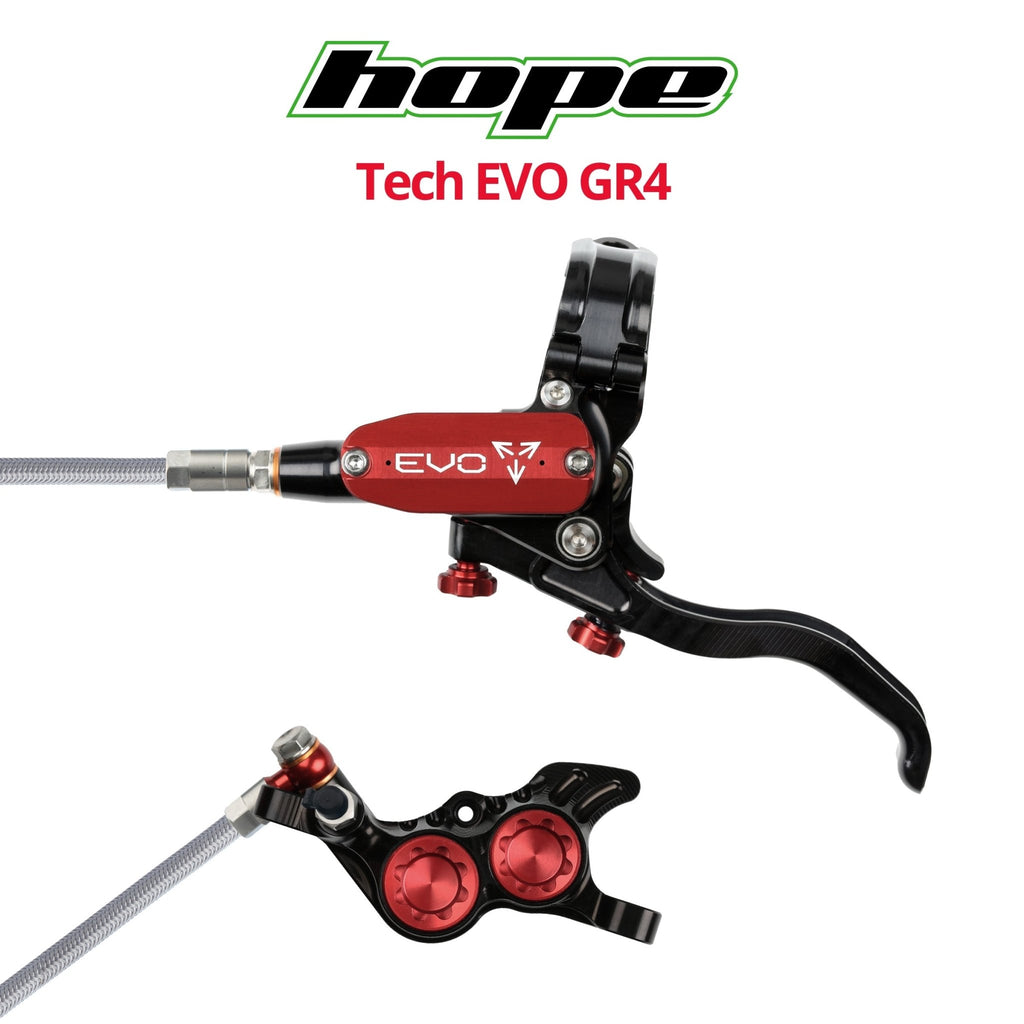

The Hope Tech EVO GR4 four-piston gravity brake is engineered for the toughest conditions, providing uncompromising power. Its exceptionally smooth lever feel combined with high-quality construction ensures precise control and sets the standard for both gravity riding and e-bike applications.
A redesigned cam mechanism reduces the free lever stroke while preserving the signature feel and modulation of the Tech 4 brakes. This adjustment provides a firmer bite point, accompanied by a smooth, progressive increase in power throughout the braking zone, improving overall brake modulation.
The roller bearing main pivot from the Tech 4 is retained, alongside the sliding guide bush on the main piston. An added secondary guide bush ensures the piston remains perfectly aligned, delivering exceptionally smooth movement throughout the entire lever travel.
A bleed port has been integrated into the master cylinder body, enabling bleeding without removing the lid for a more straightforward and efficient process. The traditional "open" bleed option remains available for thorough maintenance. Additionally, the internal port has been redesigned to prevent air pockets during bleeding, ensuring a more reliable and consistent bleed.
Three lever blade options are available. The brakes come standard with the STANDARD lever blade, suitable for most riders and uses. POWER and CONTROL blades can be purchased separately. Each EVO blade includes an extended lever hook for enhanced control and stability during aggressive riding, along with a dimpled finger contact area that improves comfort under heavy braking while maintaining grip in all weather conditions. Additionally, all blades offer adjustable reach and bite points.
-
STANDARD - A good balance of lever feel, power and adjustment range.
-
POWER - A profile tailored for users that position the lever further away from the bars, allows for 5mm more outward adjustment than STD. Increased length generates more mechanical leverage and compensates for lever position further away from pivot point.
- CONTROL - Optimized for running closer to the handlebars, allows the blade to be adjusted 5mm further inwards than STD. Slightly shorter length helps to maintain lever feel with the change in biomechanics.
________
Features:
- Cam mechanism: Reduces free lever stroke, keeping a consistent feel and excellent modulation.
- Piston movement: Secondary guide bush ensures straight, friction-free piston movement.
- Easy bleeding: Bleed port in the master cylinder body allows bleeding without removing the lid.
- One-piece CNC caliper: Lightweight, stiff, and precision-machined for maximum performance.
- Four hybrid pistons: Smooth action, excellent cooling, and class-leading power.
- Largest piston size: Delivers the highest braking force in the Hope range.
- 6% brake ratio increase vs. Tech 4 V4 for even more stopping power.
- Optimized caliper stiffness for improved control under heavy load.
- Not compatible with vented rotors.
- Hinged clamp reducing weight and to improve ergonomics
- Tool free bite point and reach adjustments
- Compatible with a wider range of current shifter options

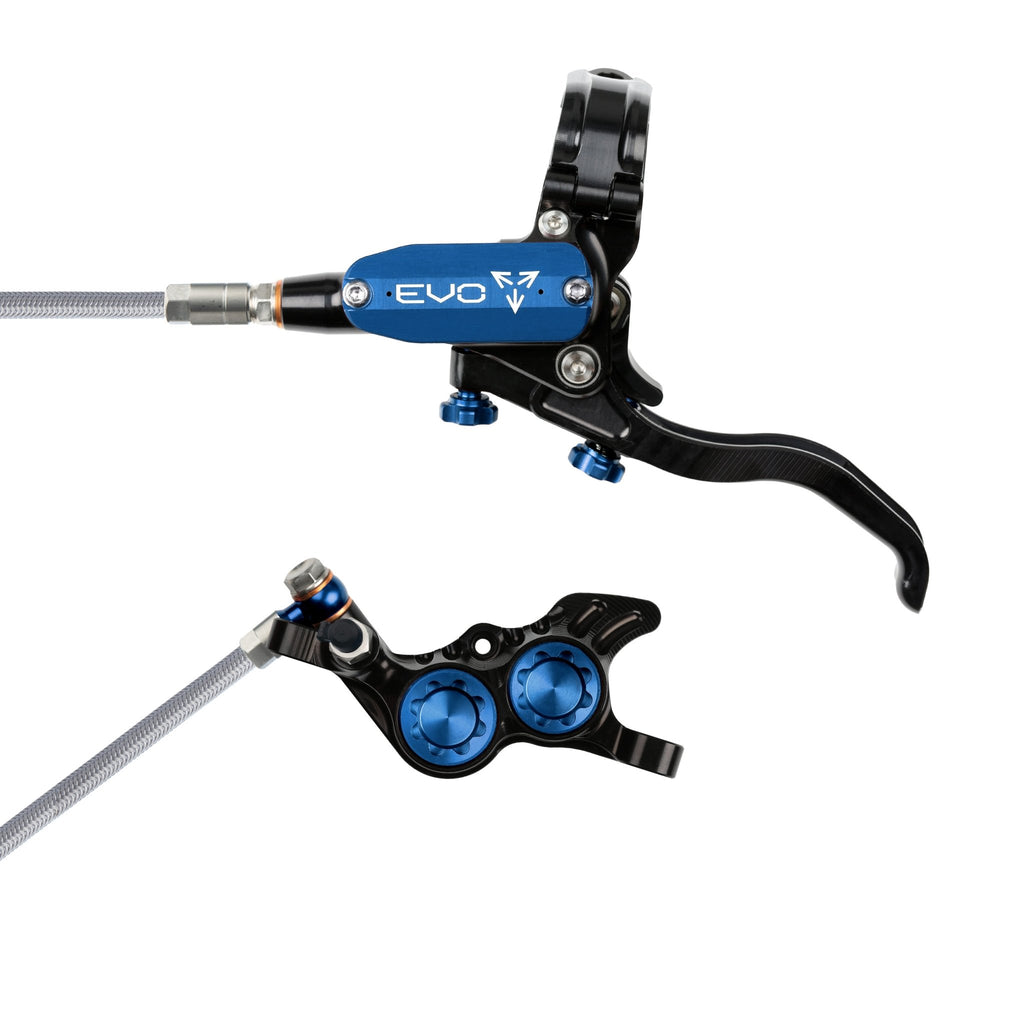

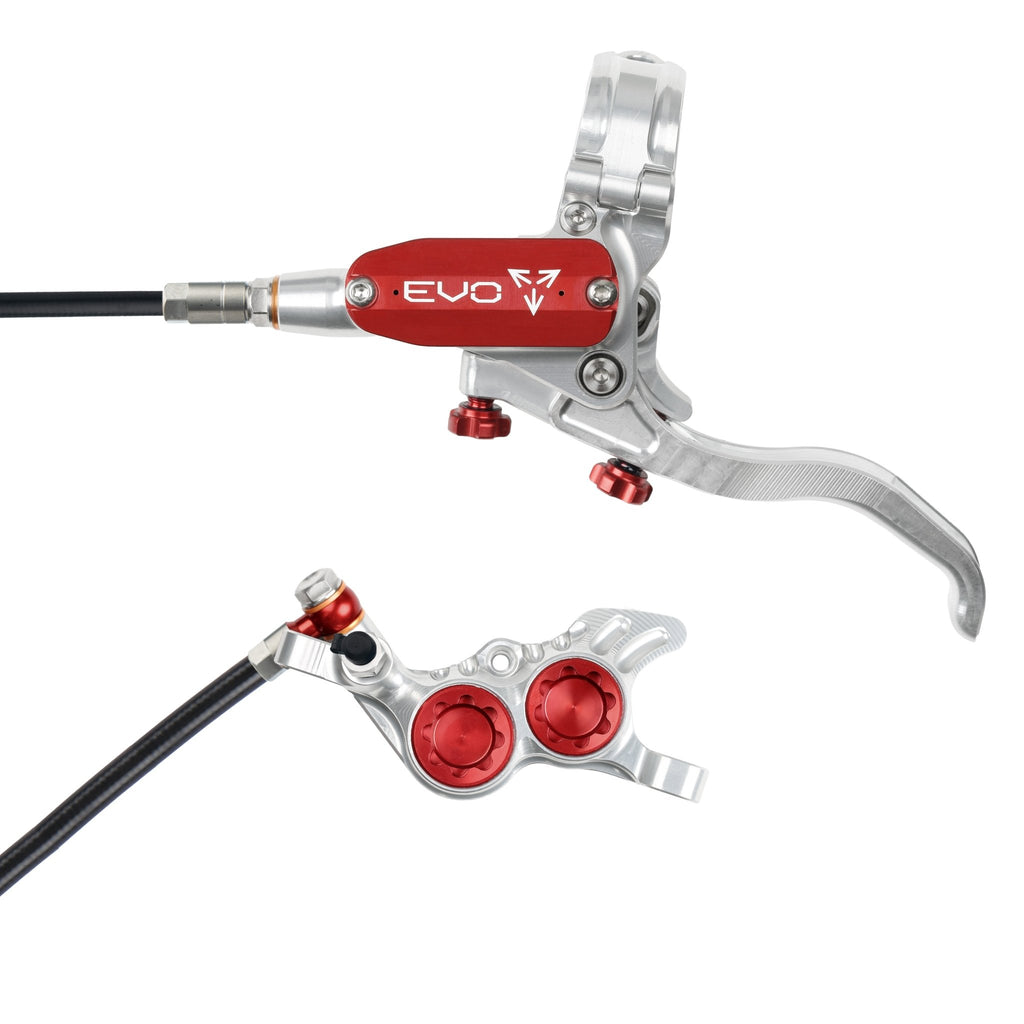

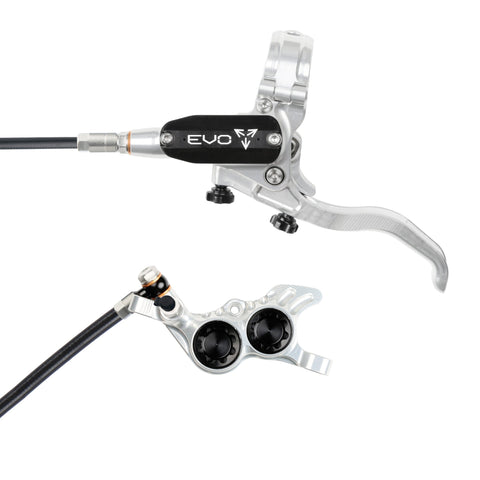

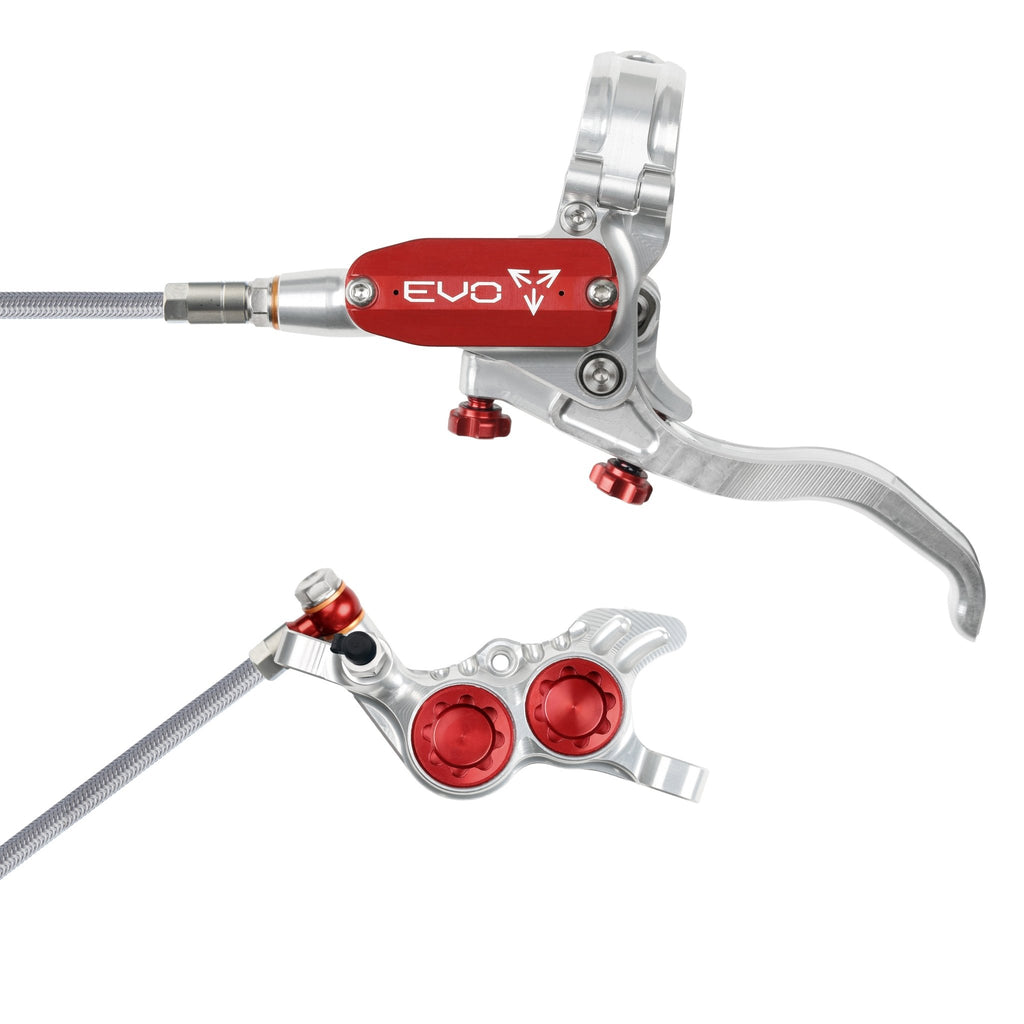

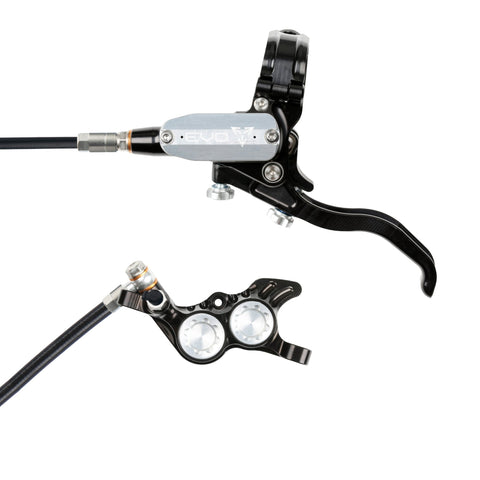

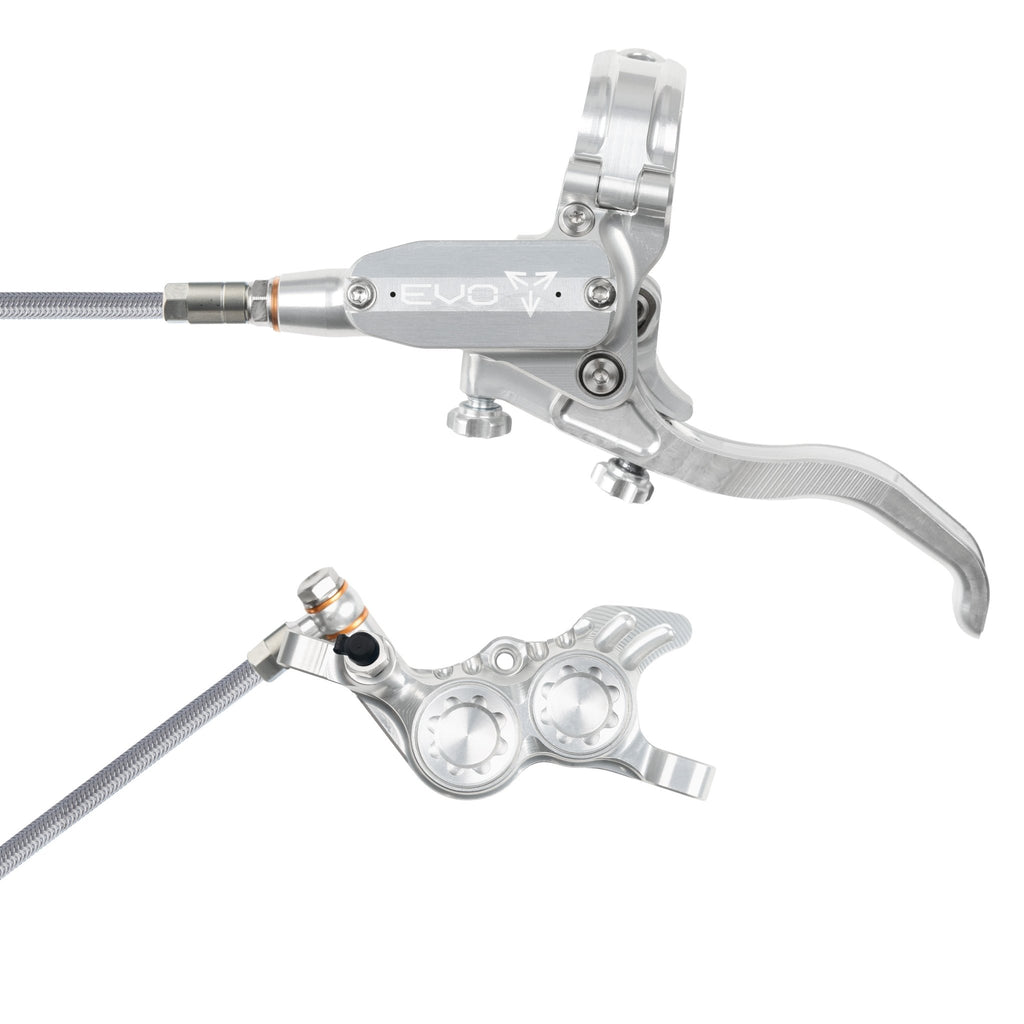

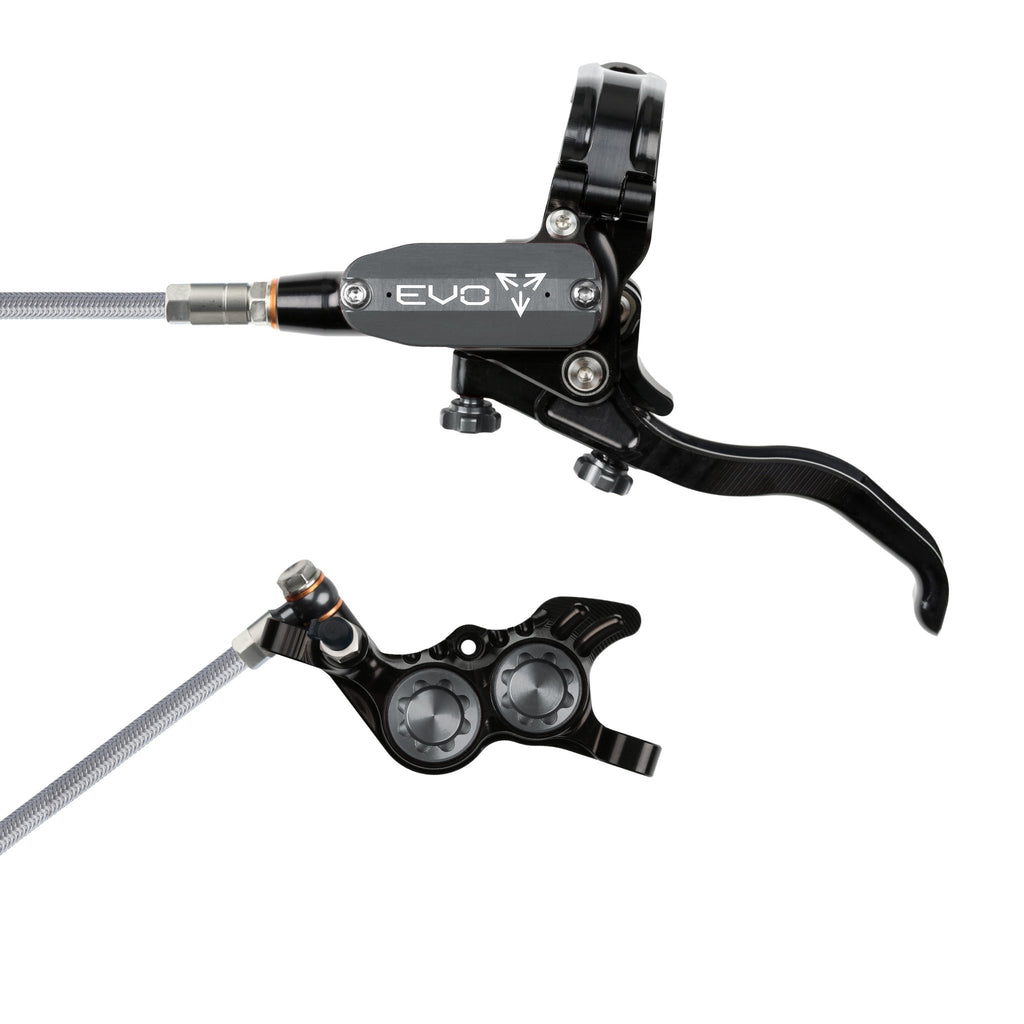

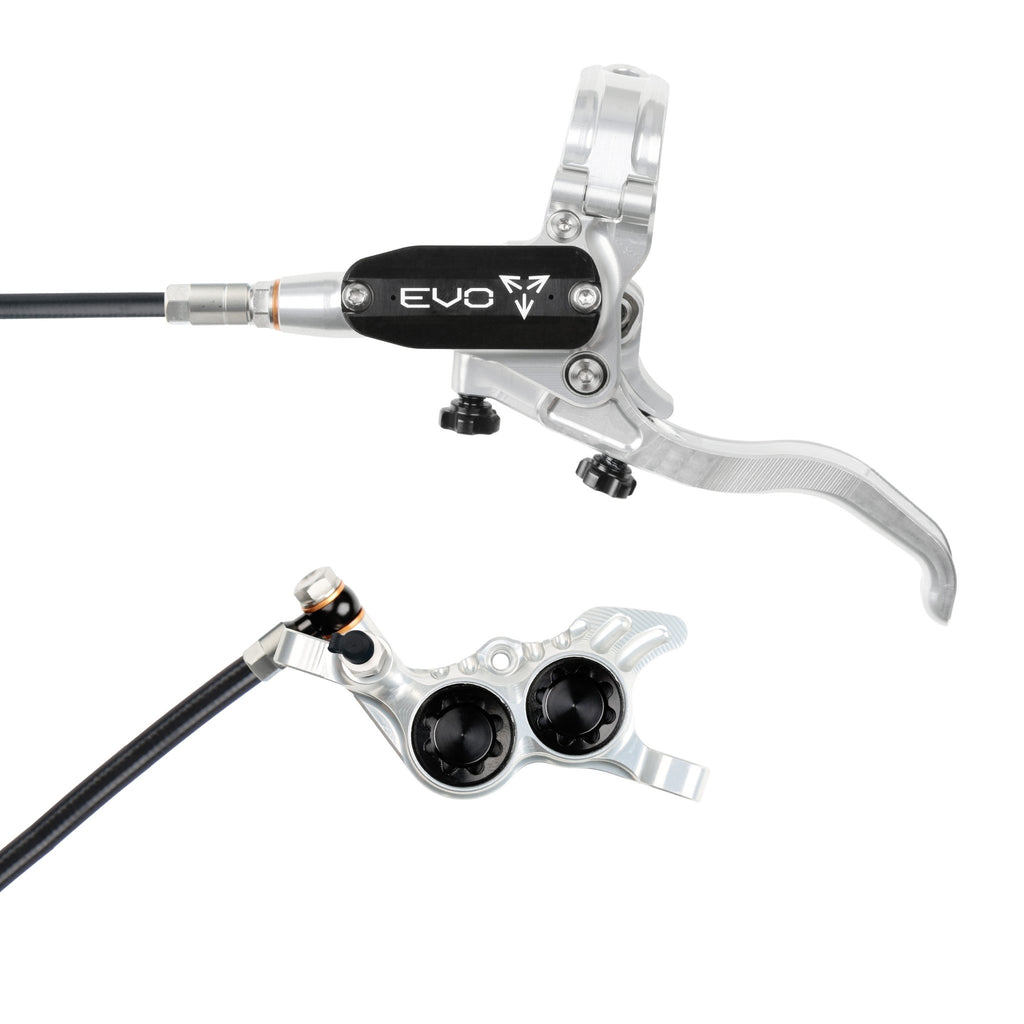

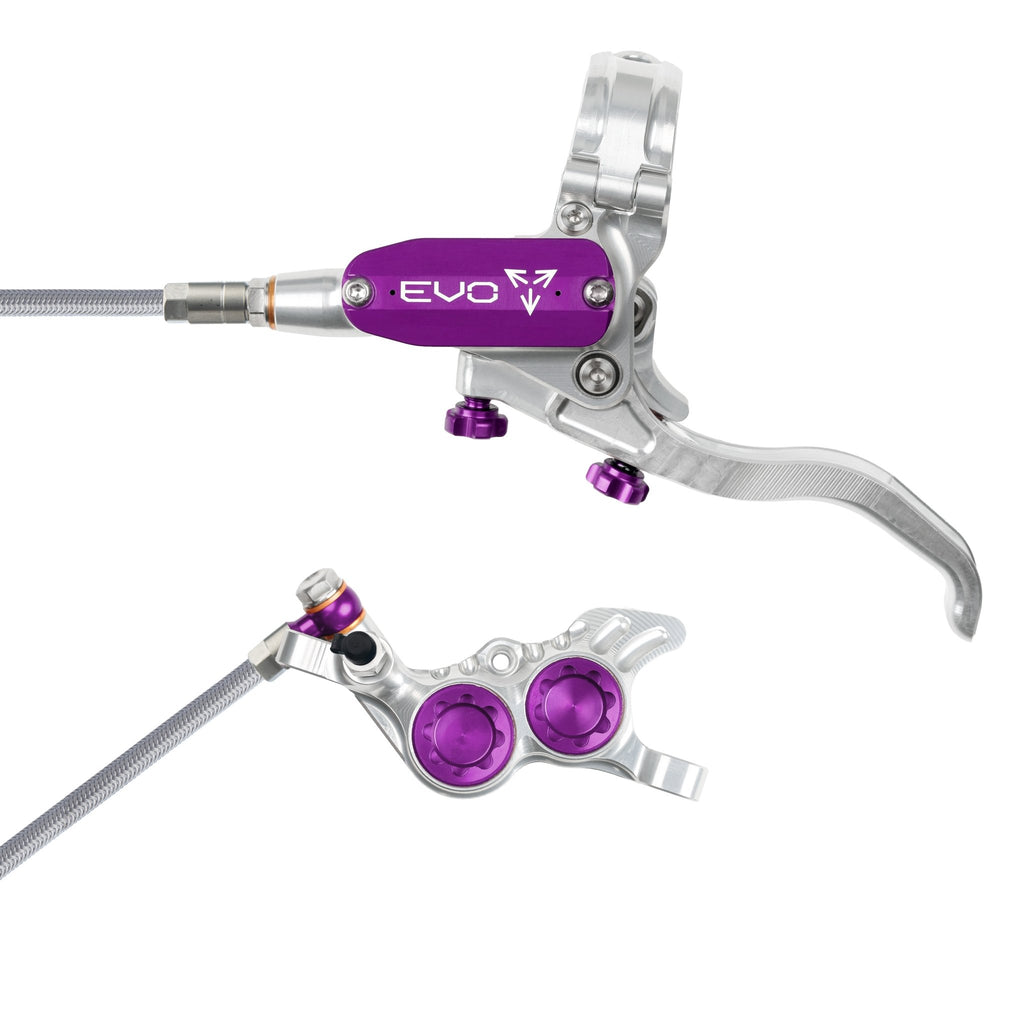

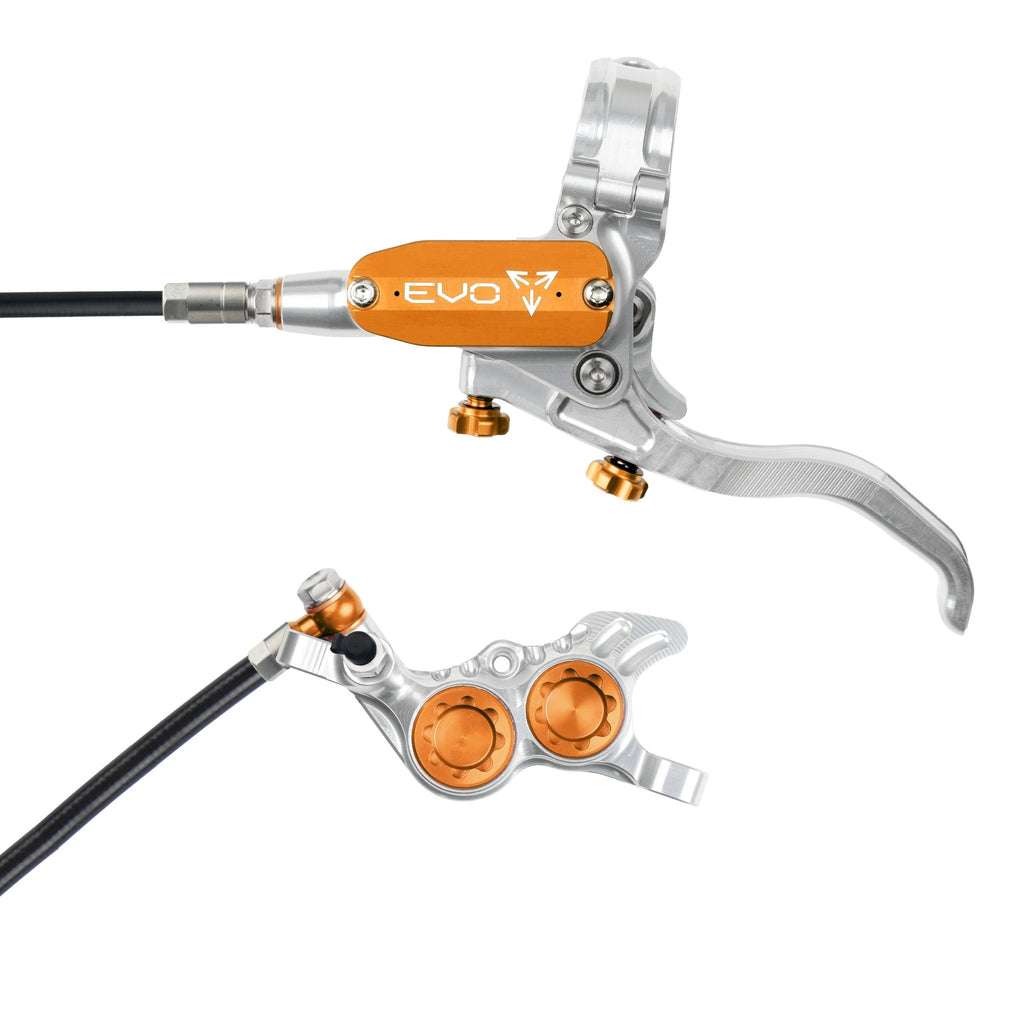

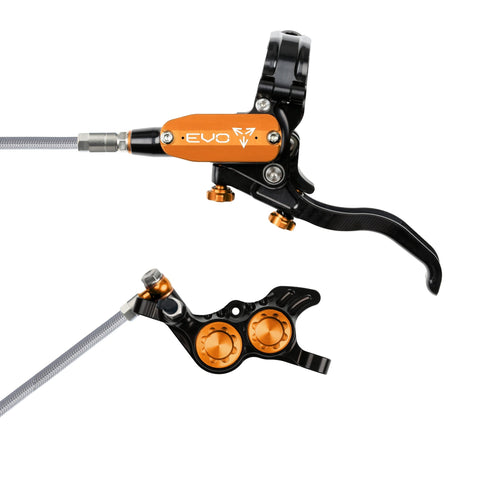

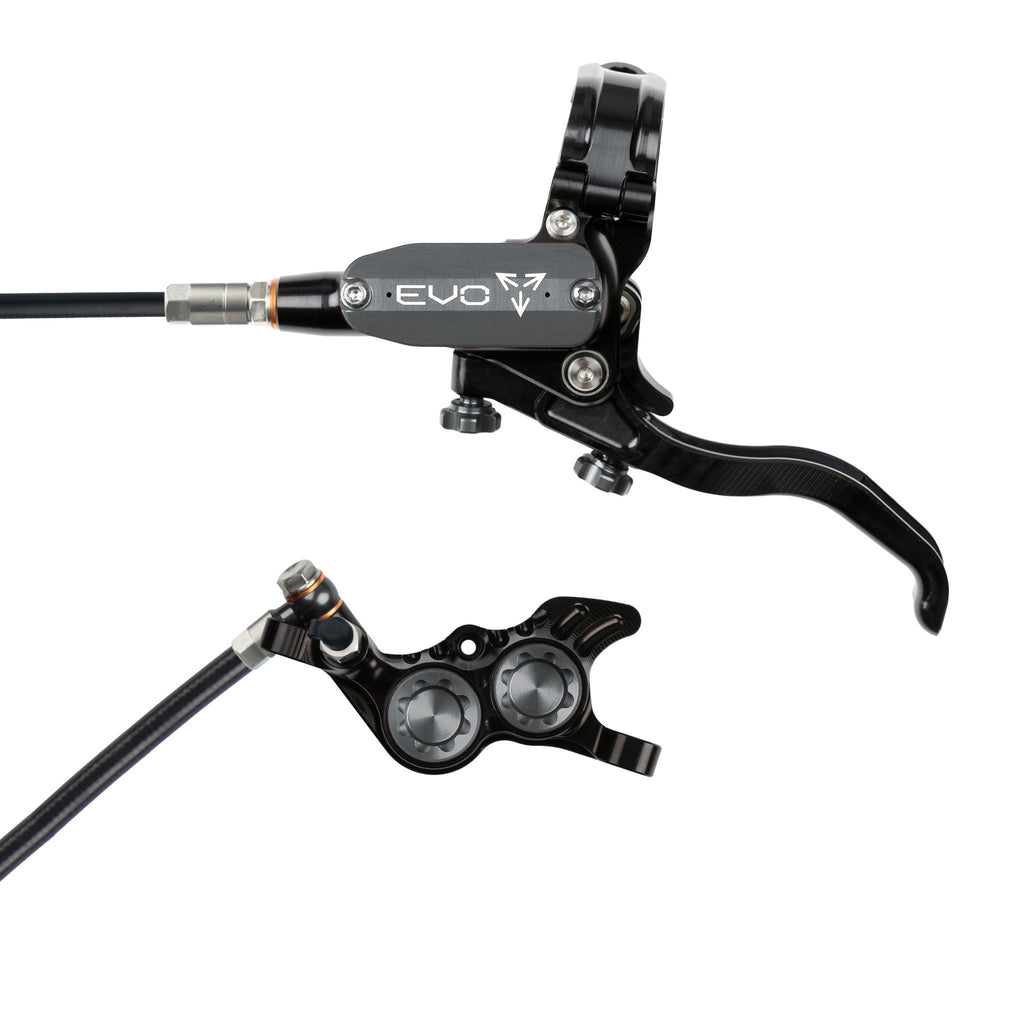

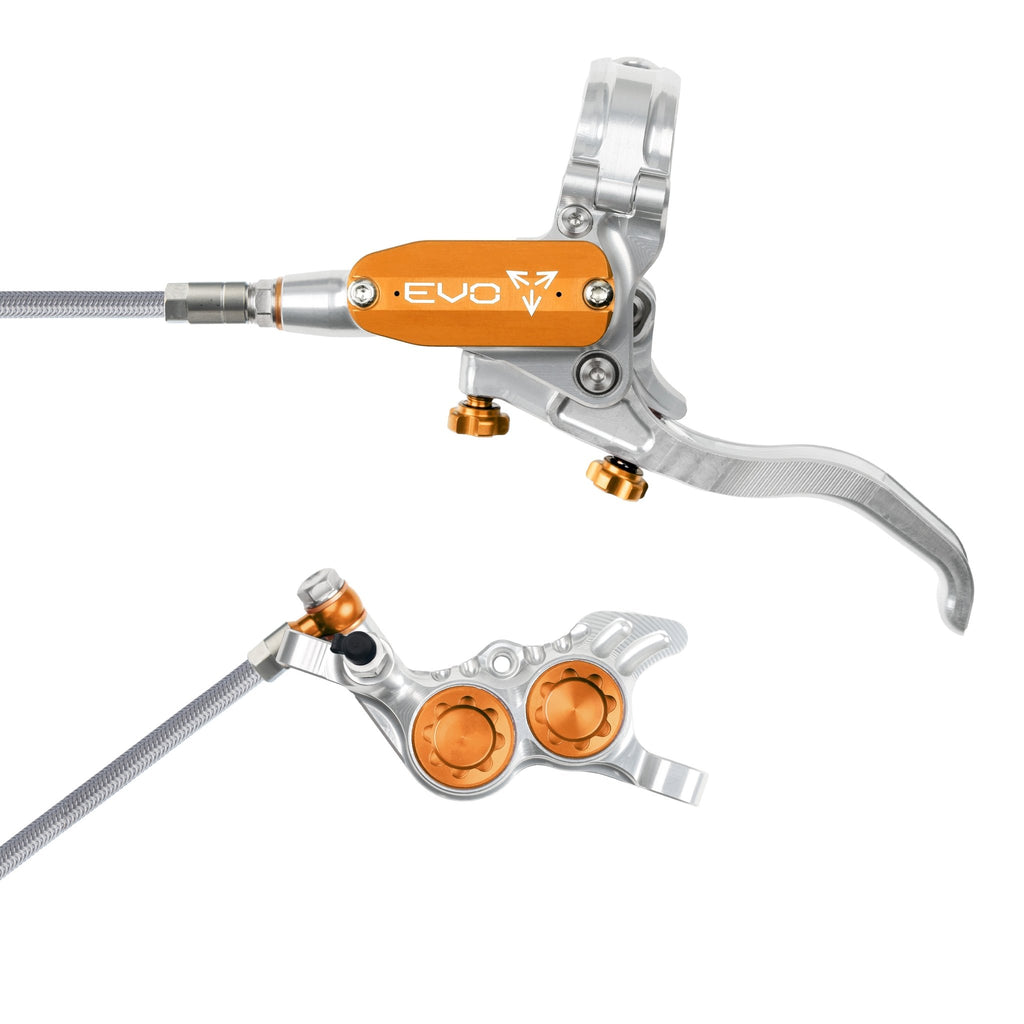

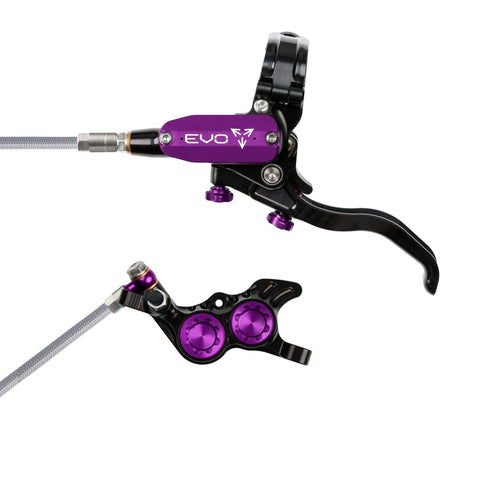

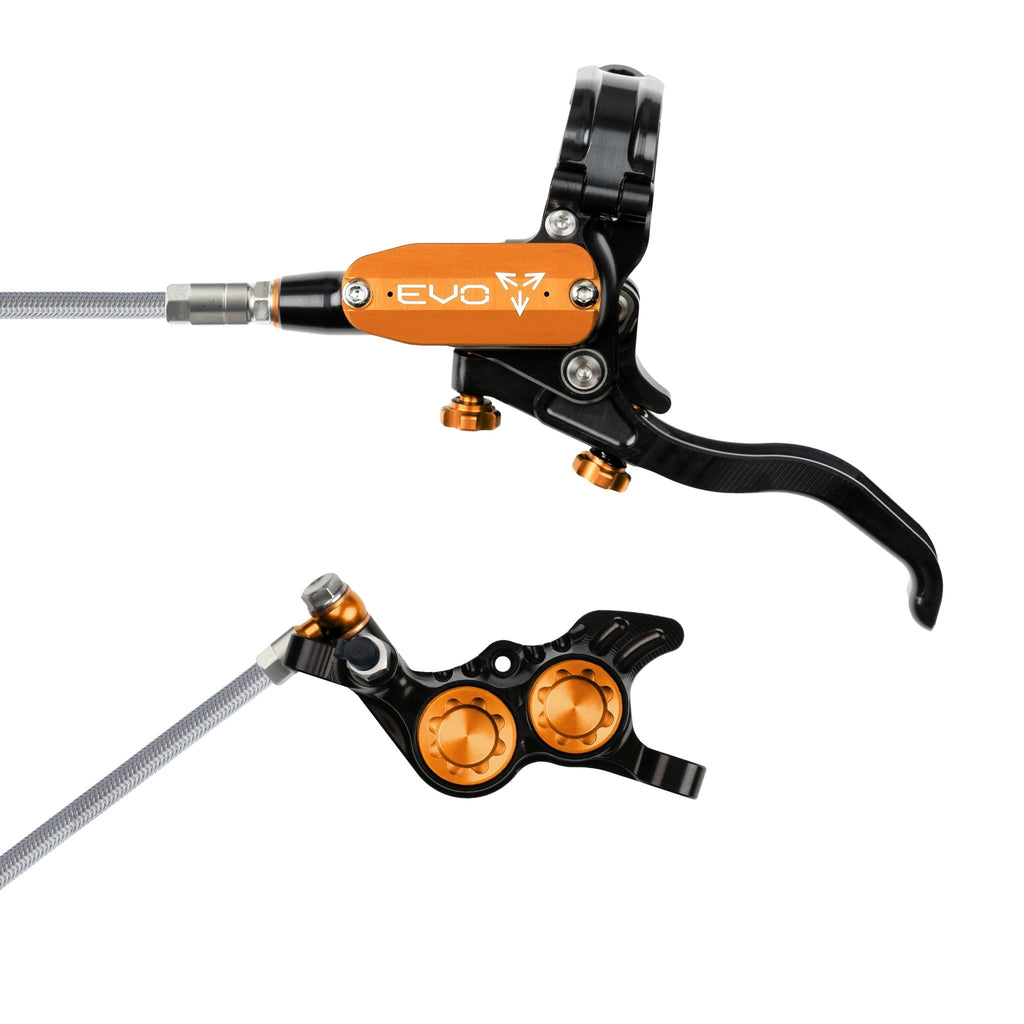

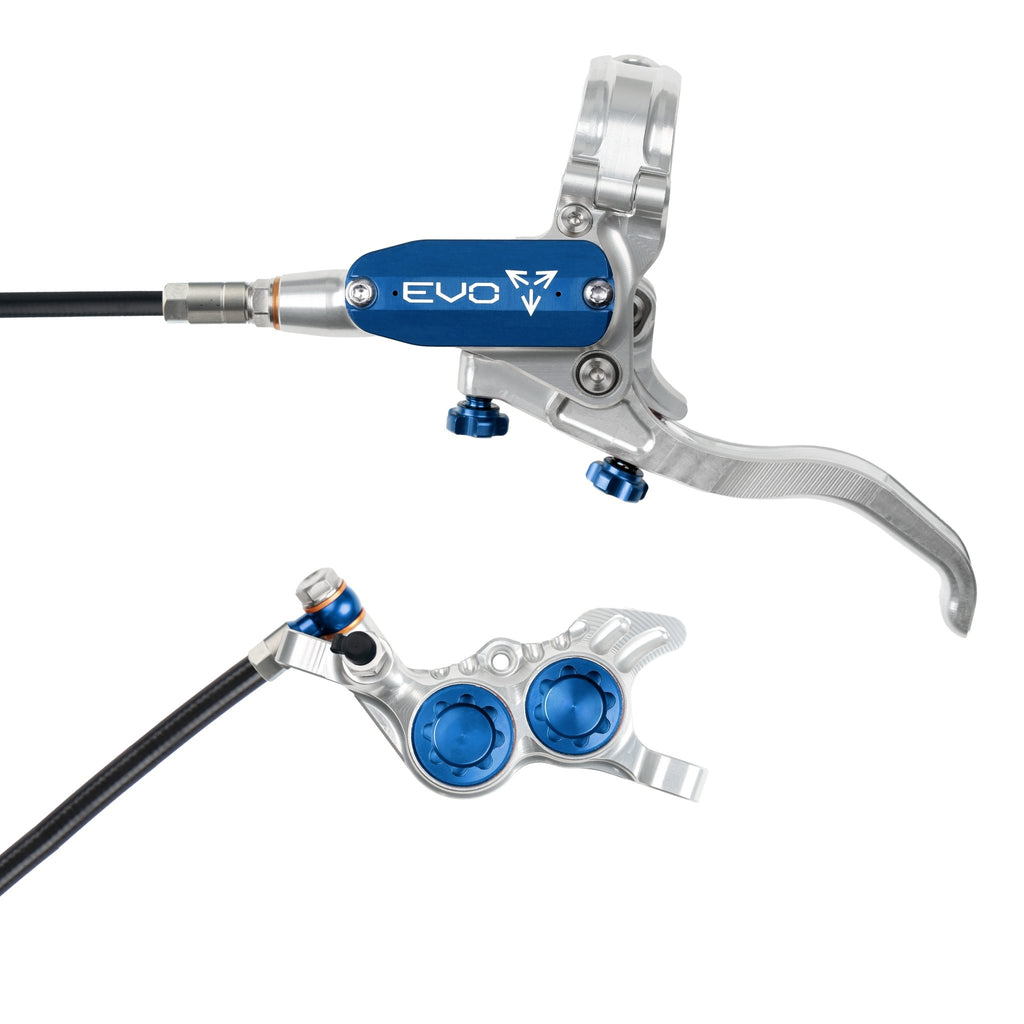

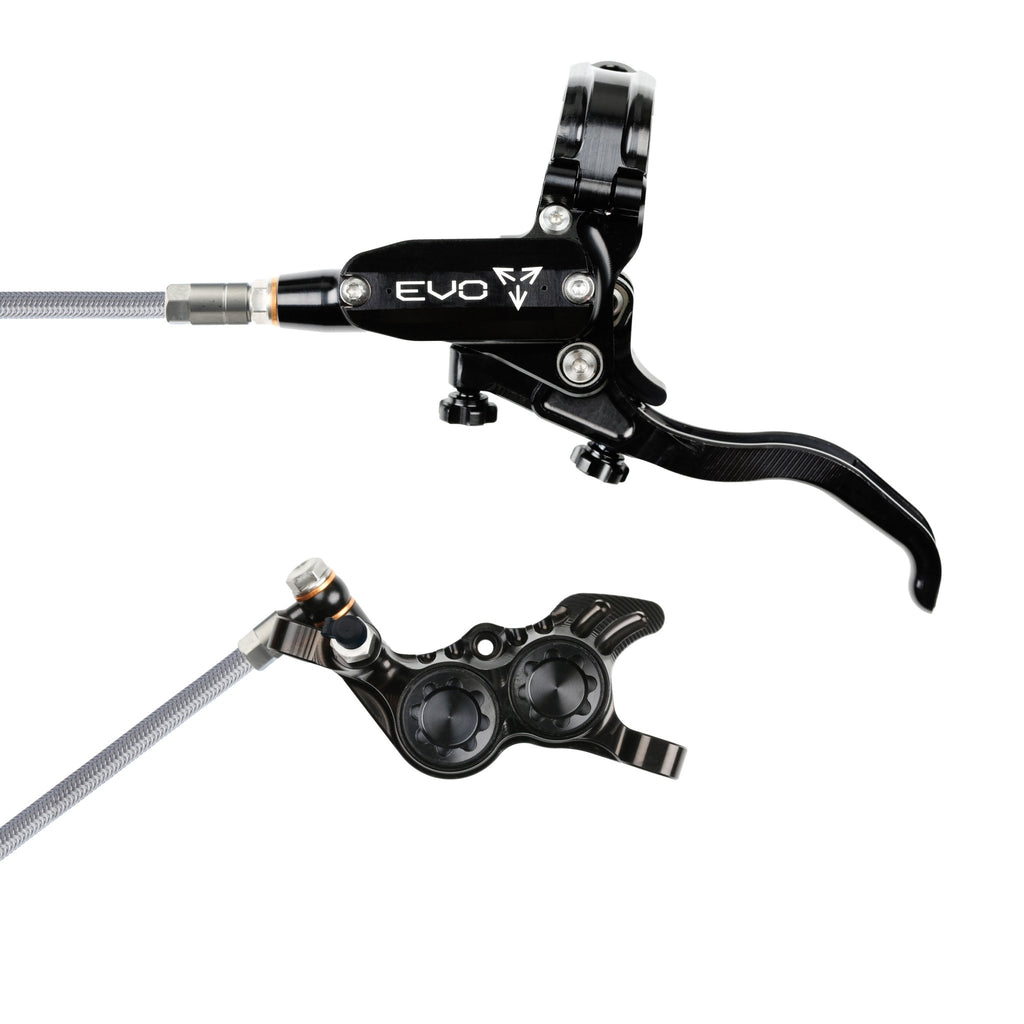

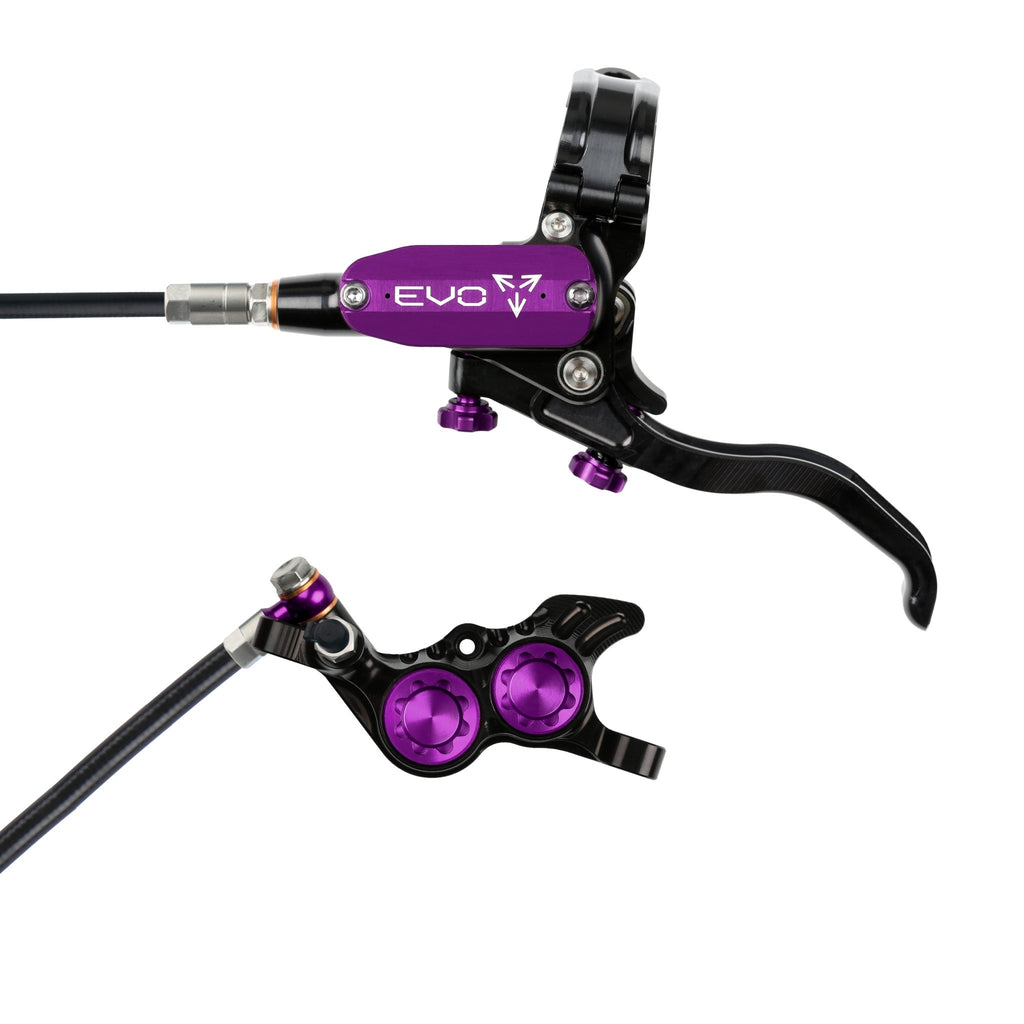

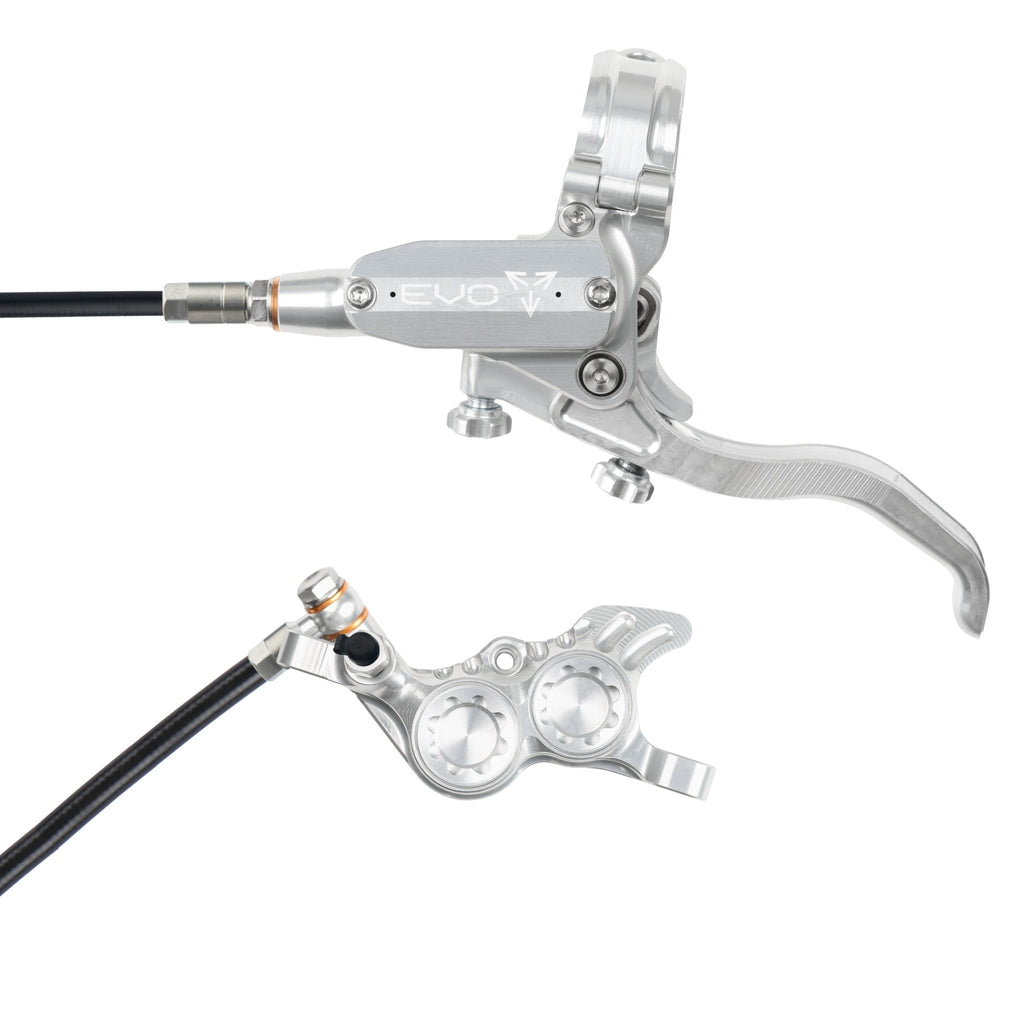

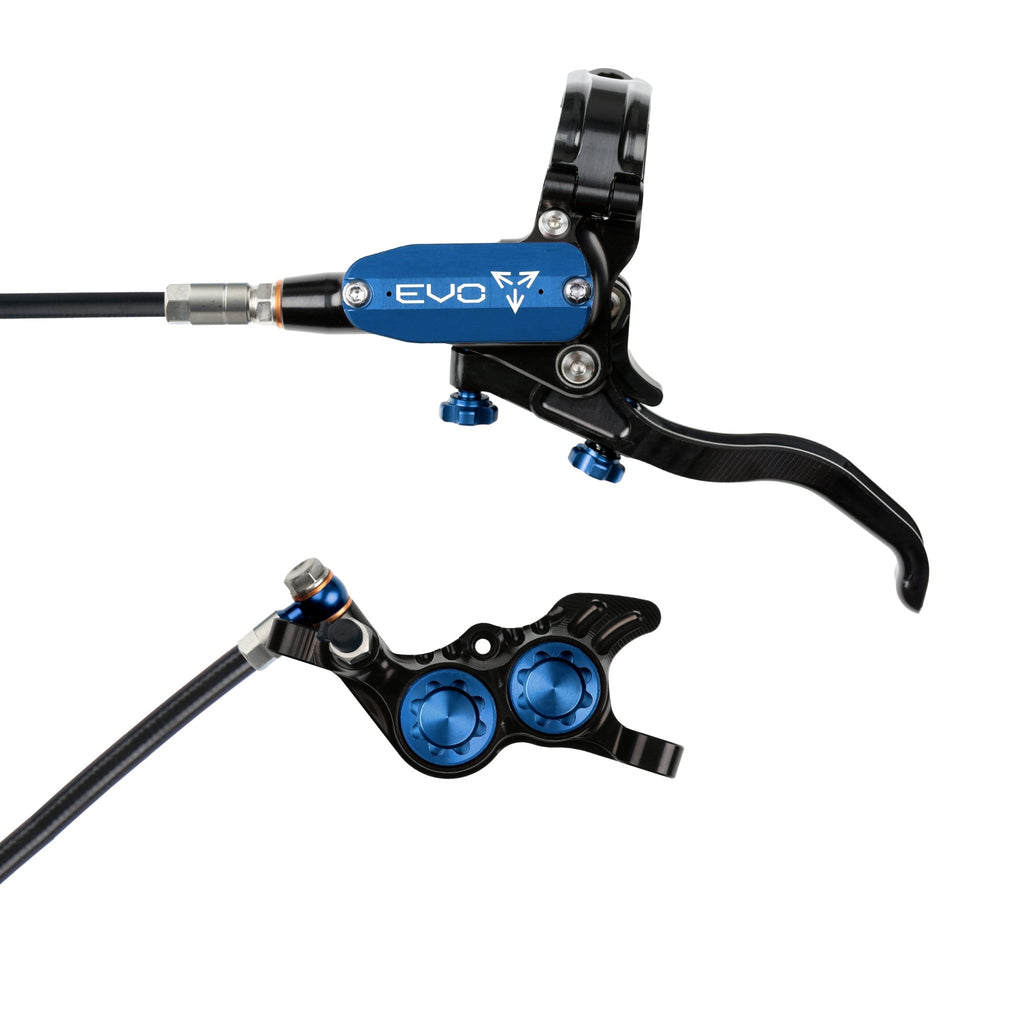

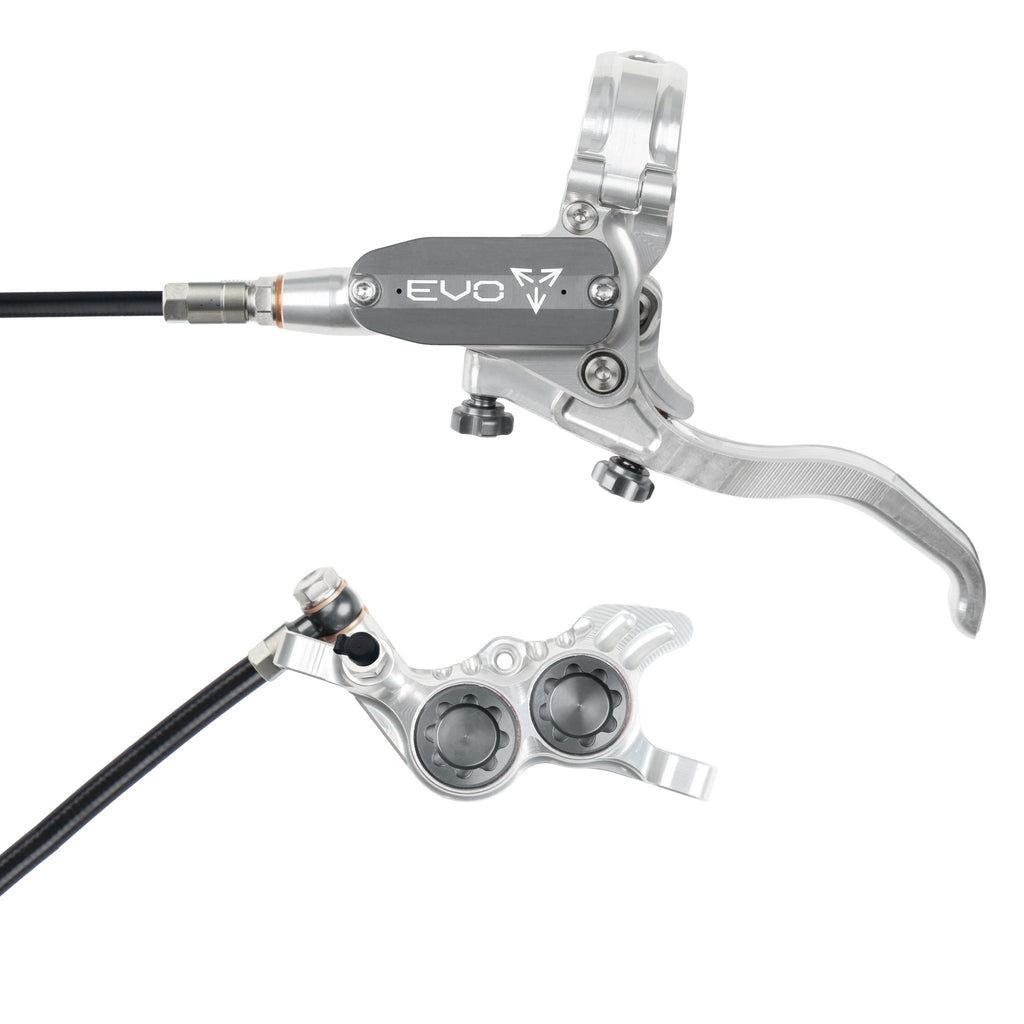

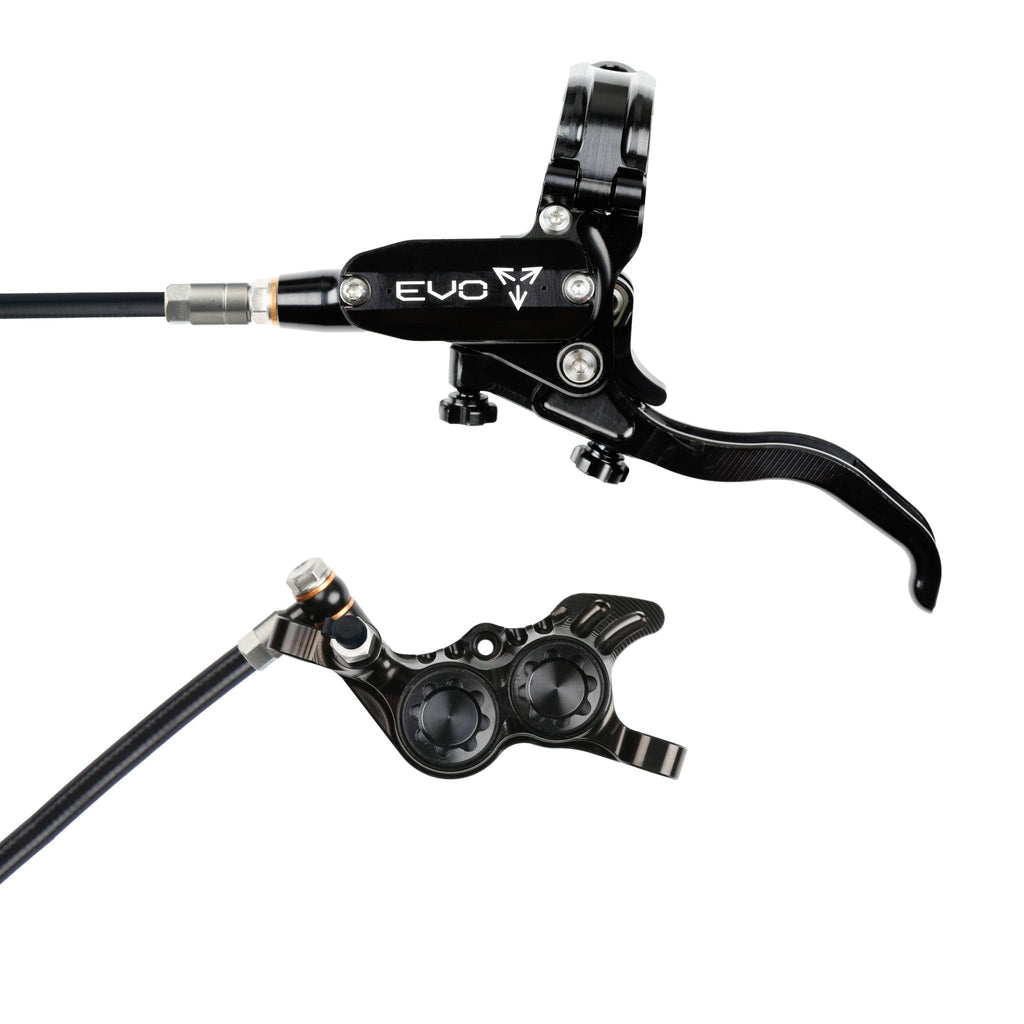

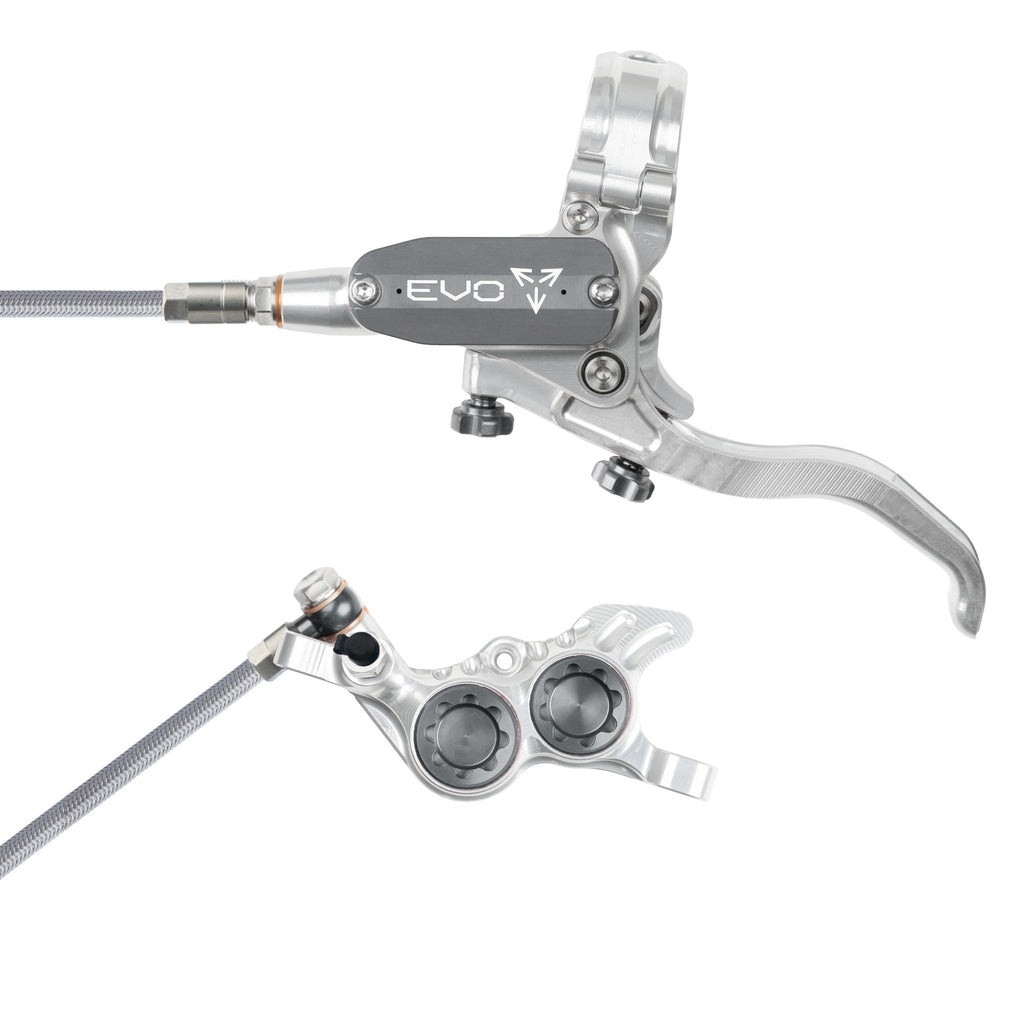

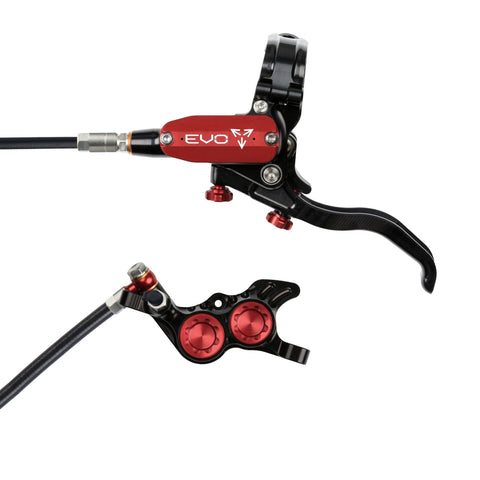

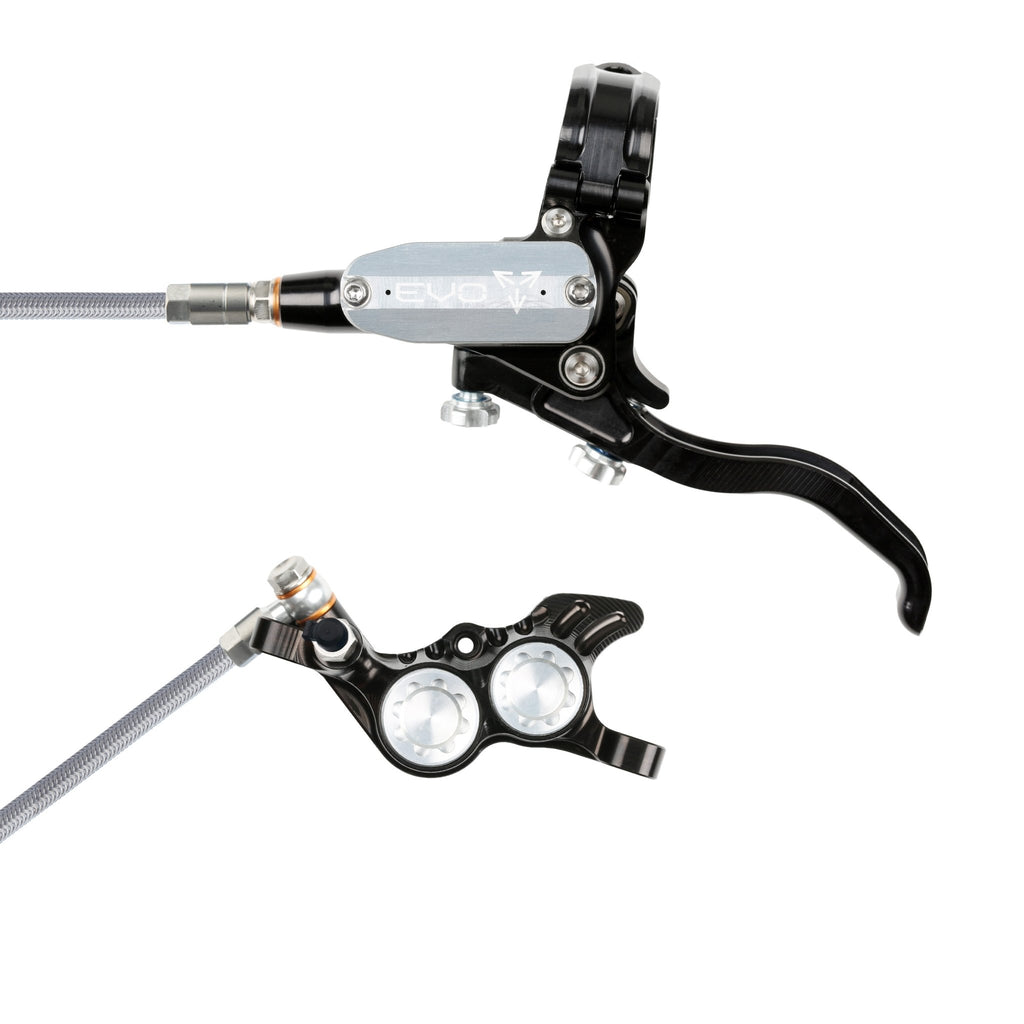

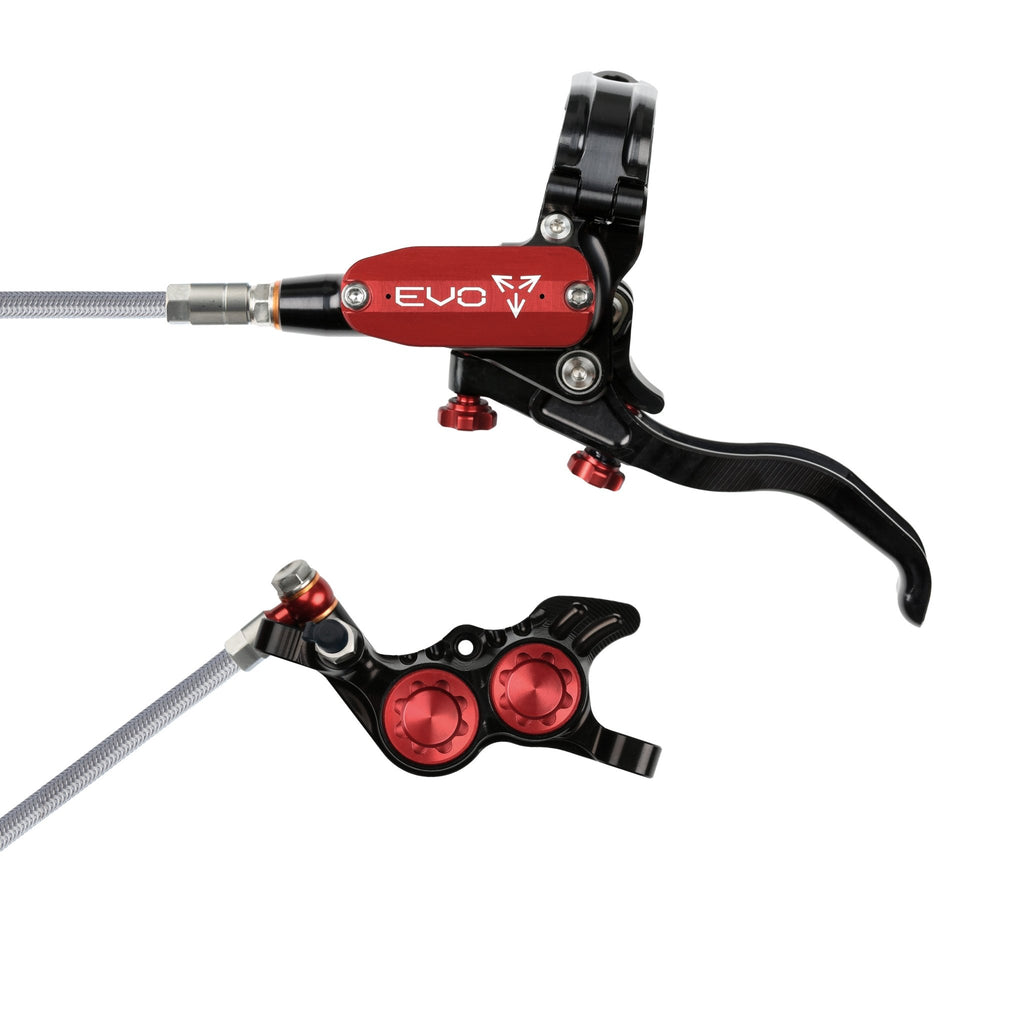

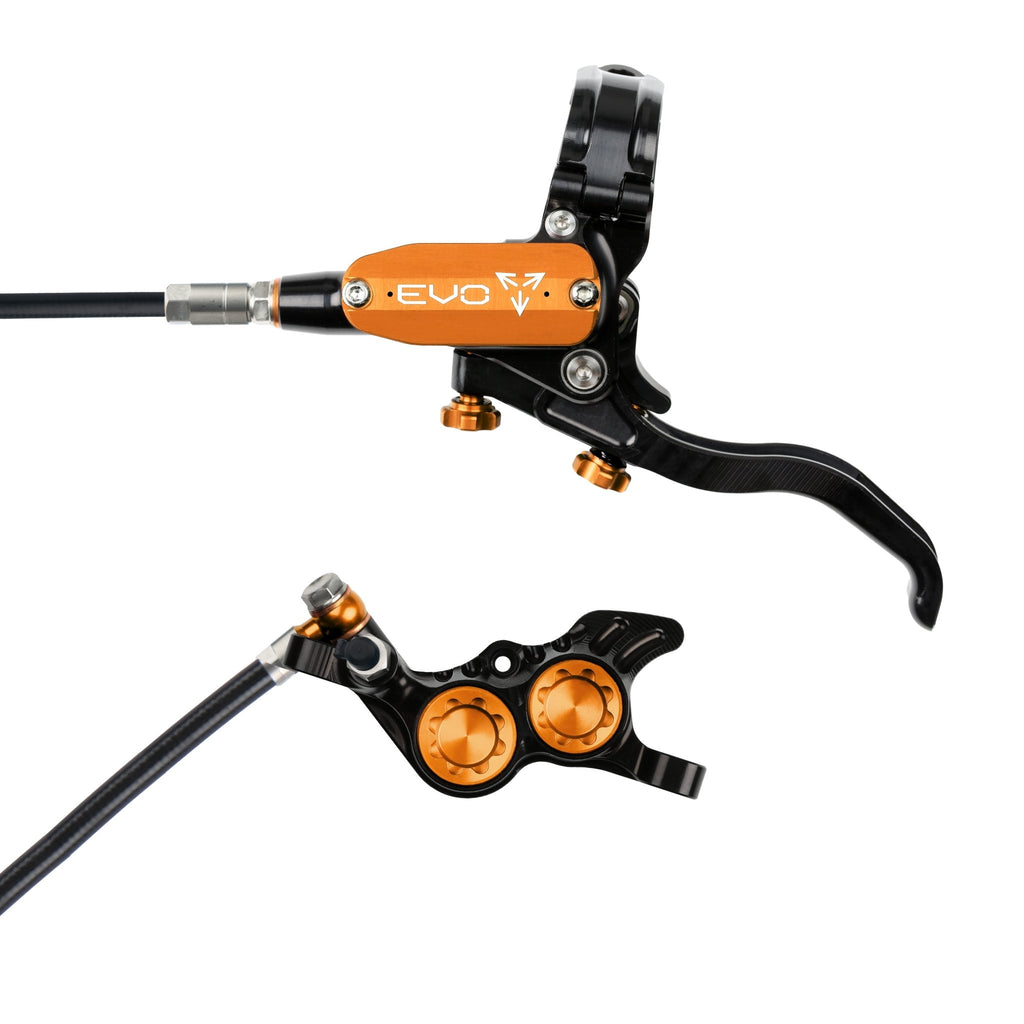

- Complete brake available in Black or Silver with colour accent options of; Black, silver, purple, red, blue, or orange.

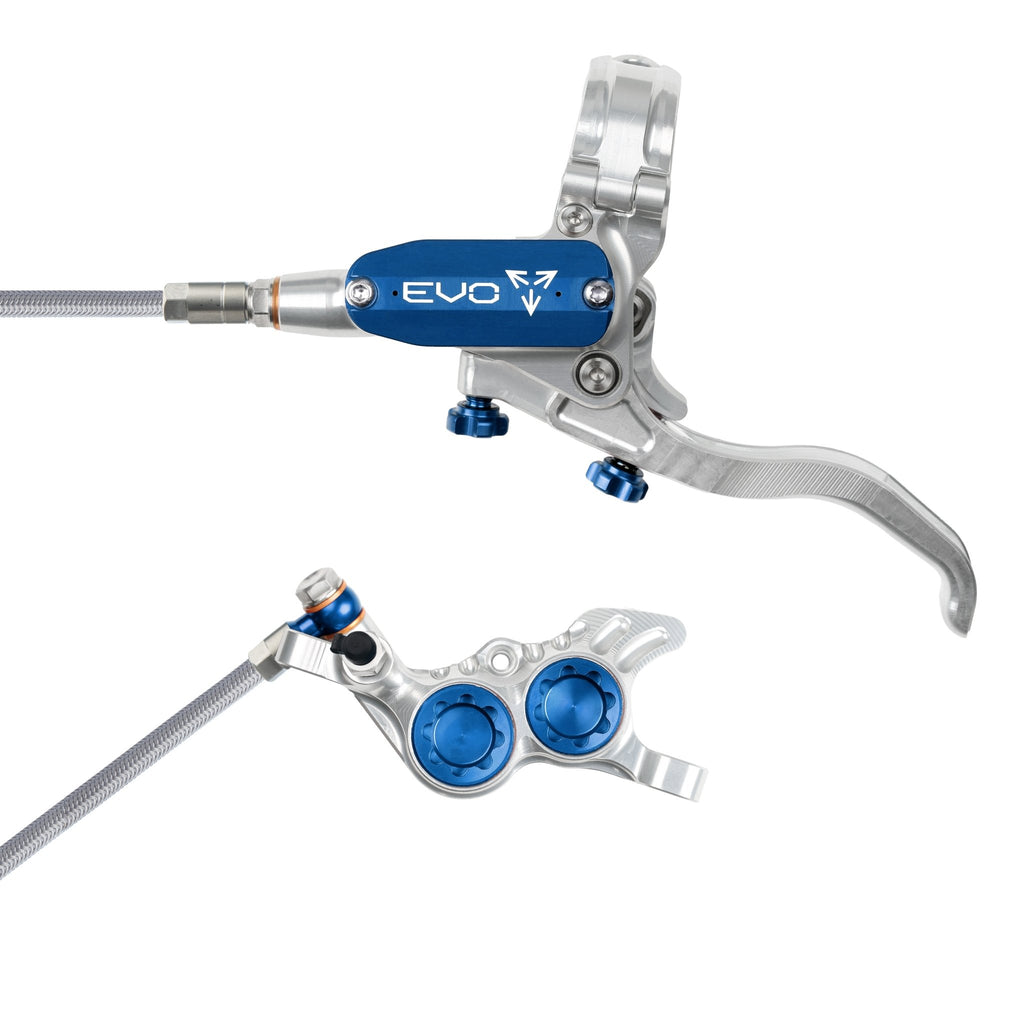

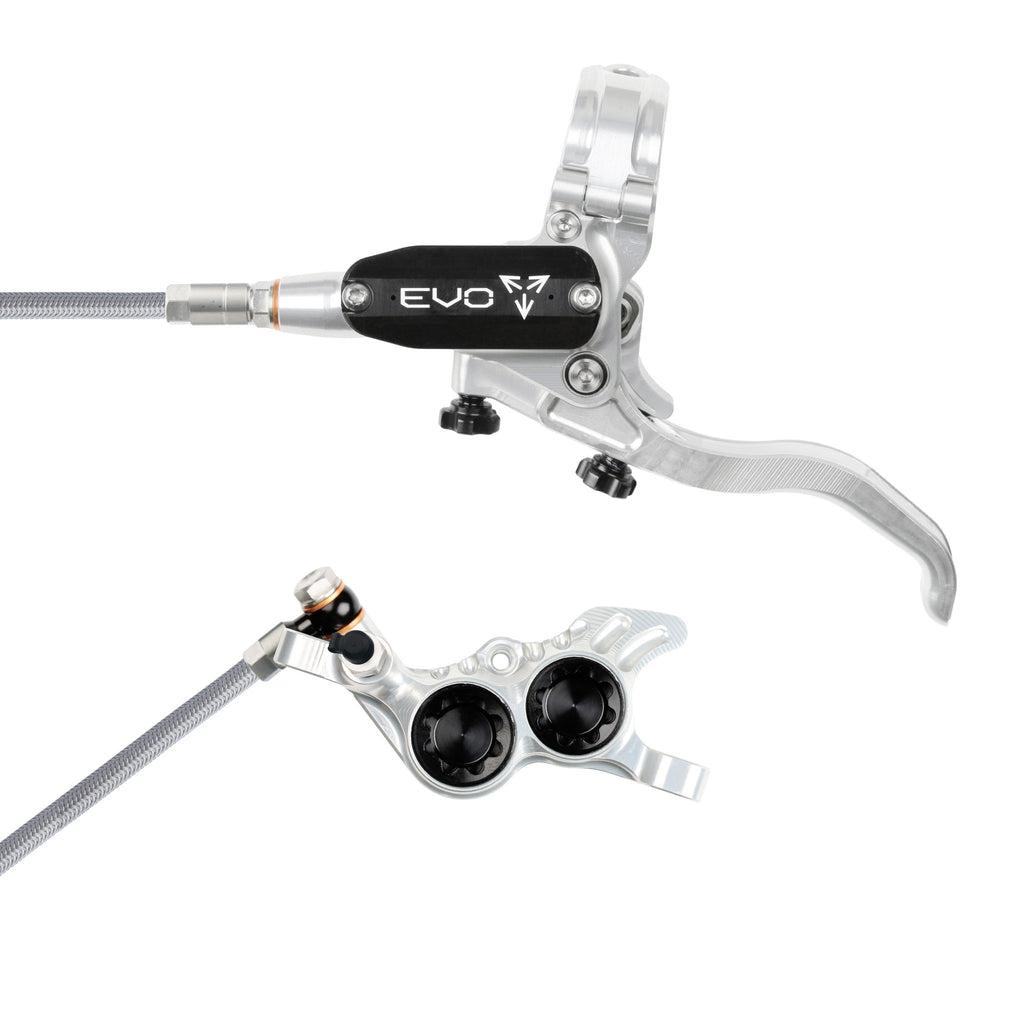

- Choose either standard or braided hose (braided hose is an extra cost)
- Usage: Downhill, Free Ride, Enduro, Trail, All-Mountain
________
Specifications:
- Adjustable Reach: Yes
- Brake Caliper Type: Post Mount
- Brake Lever Actuation: Hydraulic
- Adjustable Contact Point: Yes
- Hydraulic Fluid Type: DOT
- Rotor Included: No
________
Each brake set includes:
- 1 x Tech EVO Lever
- 1 x EVO GR4 Caliper
- 1 x Hydraulic Hose
- Disc brakes are ready-to-install, filled and bled!
